Roland TD-6 User Manual

18
Panel Descriptions
Rear Panel

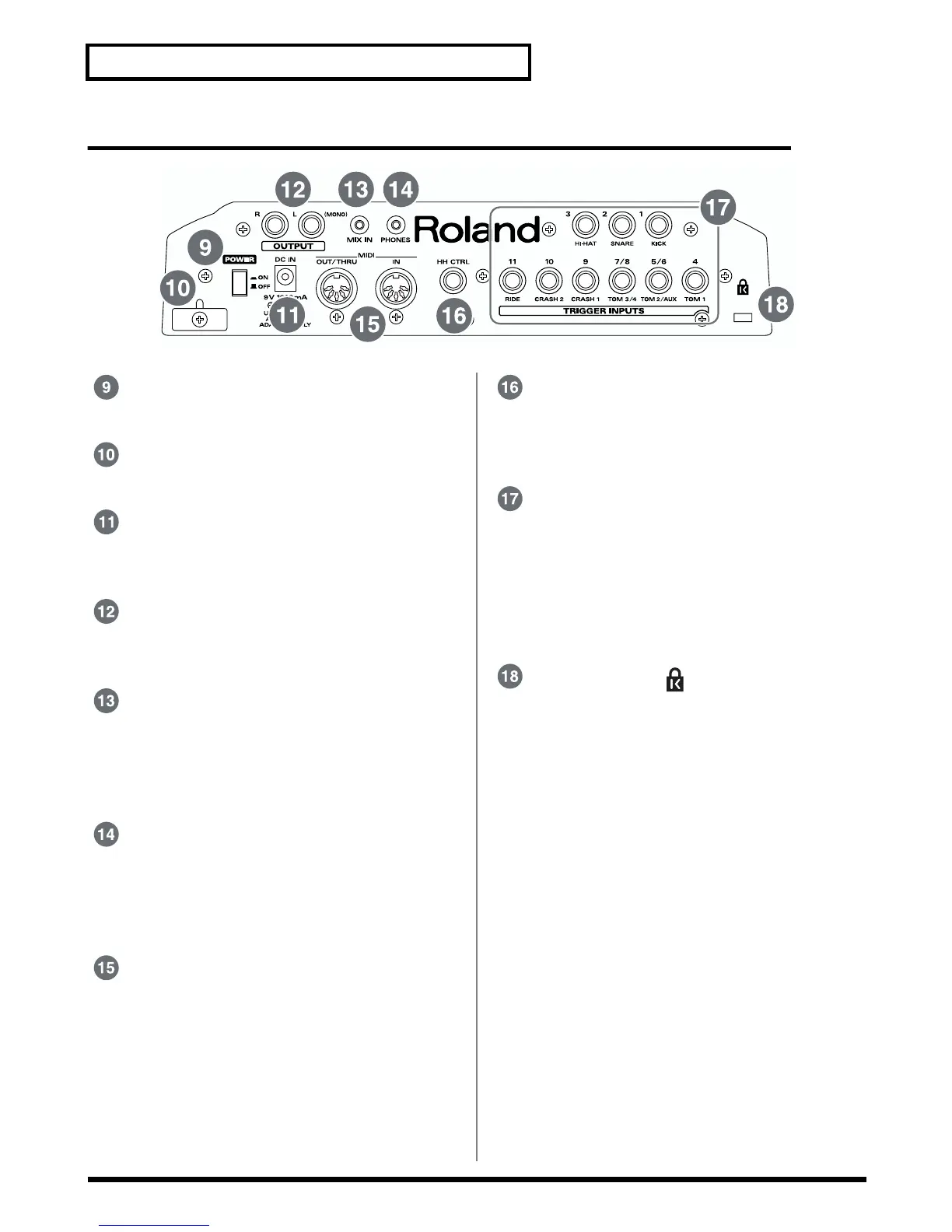

fig.P-023
POWER Switch
Switch turns the power on/off (p. 24).
Cord Hook
Anchor the power cord (p. 23).
AC Adaptor Jack
Connect the supplied AC adaptor to this jack (p.
23).
OUTPUT Jacks (L (MONO), R)
Connect these to your amp or audio system. For
monaural output use the L/MONO jack (p. 23).
MIX IN Jack
Connect this to your CD, MD, cassette player, or
other similar device (p. 53).
The sound that is input to this jack will be output
from the OUTPUT jacks and the PHONES jack.
PHONES Jack
A pair of stereo headphones can be connected to
this jack (p. 23).
Even when headphones are connected, sound
will still be output from the output jacks.
MIDI Connectors (IN, OUT/THRU)
Use these connectors when using a MIDI
sequencer, MIDI keyboard, or other MIDI device
to play sounds with the TD-6, when using the
TD-6 and pads to play sounds from an external
MIDI sound generator, or when saving the TD-
6’s settings to, or loading settings from a MIDI
sequencer.
HH CTRL (Hi-Hat Control) Jack
Connect a hi-hat control pedal (the optional FD-
7 or FD-6; FD-6 is included with the TD-6K) here.
(p. 20)
TRIGGER INPUTS
Use these inputs to connect optional pads,
cymbals, and kick trigger units to the TD-6 (p.
20).
For more detailed information on each trigger
input, refer to “Trigger Inputs and the Pads You
Can Use” (p. 34).
Security Slot ( )
http://www.kensington.com/

Roland TD-6 Specifications

General

Polyphony	64 voices
Type	Drum Module
Trigger Inputs	10
Outputs	Stereo (L/Mono, R), Phones
MIDI	In, Out
Effects	Reverb
Display	LCD
Inputs	Mix In Jack (Stereo)
Power Supply	AC adapter (DC 9V)
