Bread slicer C42 – C42S – C52 – C52S – G42
(Original instructions) – Edit. 02/2013 – Rev.A

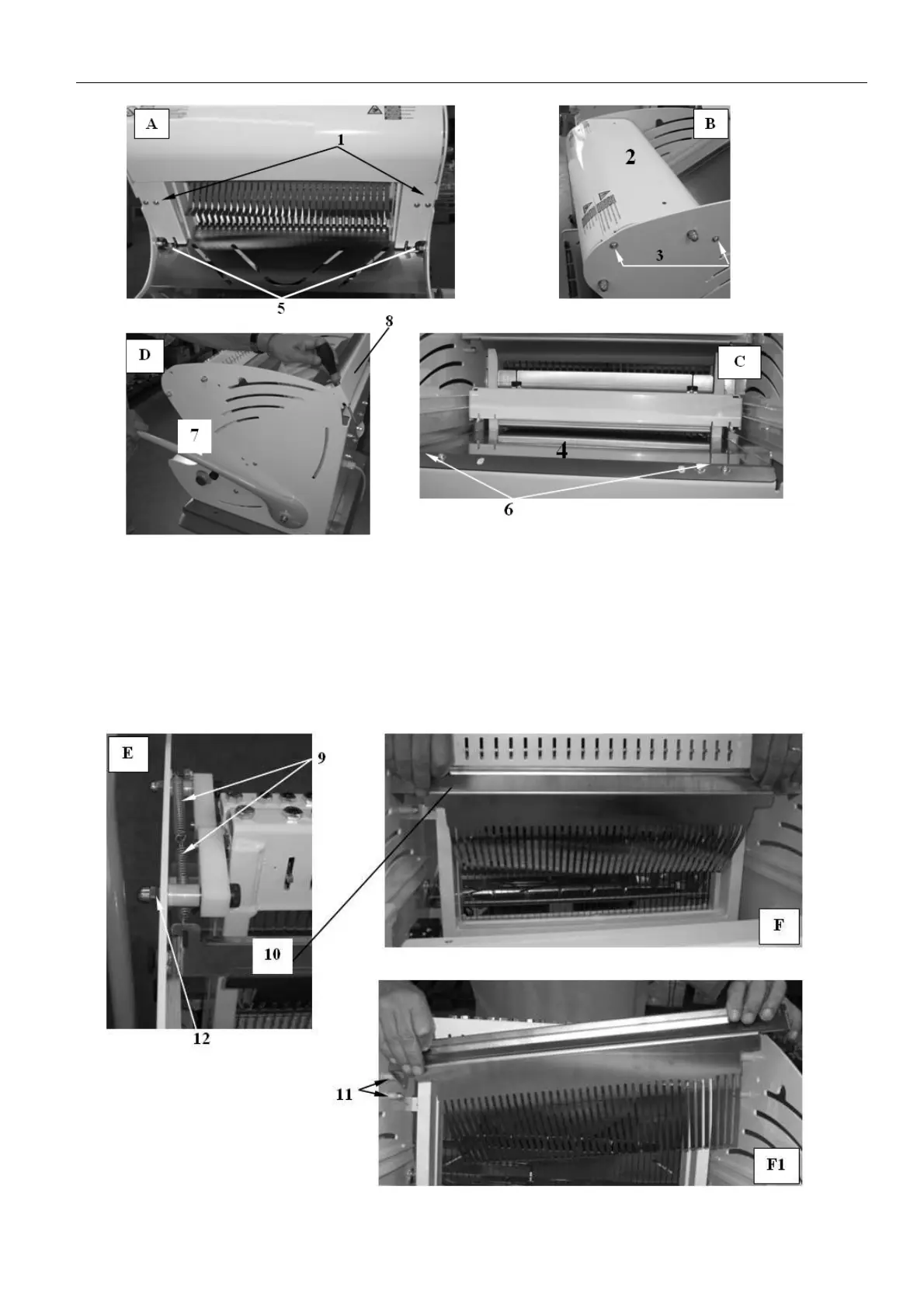

Figure 14
5. with a pair of pincers, detach the springs, ref. 9 (in the most recent versions there is only one
spring) from the hooking point on the presser comb ref.10 Photo E/F Figure 15
6. slightly raise the comb ref. 10 Photo F, extracting it from the support pins at the sides ref. 11
Photo F1 and taking care not to damage the blades
7. remove the two nuts and washers ref.12 on both sides of the machine, extract the pins and spacers
from the connecting rods
Figure 15
