Ropex CIRUS UPT-640 - Fault Areas and Causes

Controller functions
50 UPT-640 (as of SW 100)

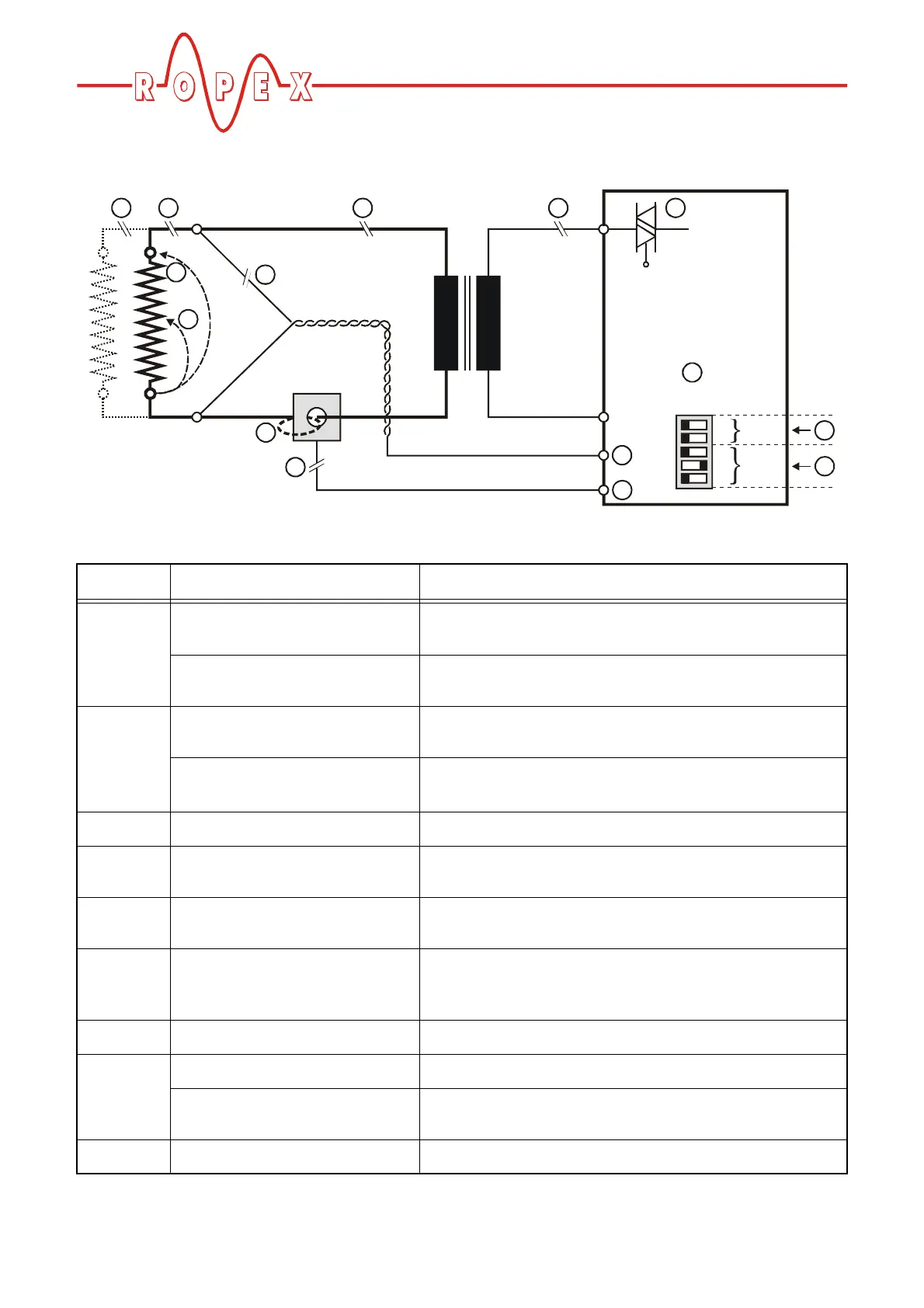

9.27 Fault areas and causes
The table below explains the possible fault causes.
Temperature
controller
HARDWARE
5
3
6
8
9
8
7
1
4
1229
UR
IR
U2
I2
32
1
45
7
8
Fault area Explanation Possible causes

Load circuit interrupted after U
R
pickoff point
- Wire break, heatsealing band break
- Contacting to heatsealing band defective
PEX-W2/W3 current transformer
signal interrupted
-I
R
measuring wire from current transformer interrupted

Primary circuit interrupted
- Wire break, triac in controller defective
- Primary winding of impulse transformer interrupted
Secondary circuit interrupted
before U
R
pickoff point
- Wire break
- Secondary winding of impulse transformer interrupted

U
R
signal missing
- Measuring wire interrupted

Partial short-circuit (delta R)
- Heatsealing band partially bypassed by conducting part
(clamp, opposite heatsealing bar etc.)

Parallel circuit interrupted
- Wire break, heatsealing band break
- Contacting to heatsealing band defective

Total short-circuit
- Heatsealing band installed incorrectly, insulation at heatse-
aling bar ends missing or incorrectly installed
- Conducting part bypasses heatsealing band completely

U
R
signal incorrect
-U
2
outside permissible range from 0.4…120VAC

I
R
signal incorrect - I
2
outside permissible range from 30…500A
Turns through PEX-W2/W3 cur-
rent transformer incorrect
- Check number of turns (two or more turns required for
currents < 30A)

Internal controller fault
- Hardware fault (replace controller)
