Rosco Maximizer 3B - Page 86

6-30 Rosco Maximizer 3B Asphalt Distributor
Operation
9 - 2-Way Valve
10 - Handspray Valve
11 - Manifold
12 - Right Spray Bar
13 - Left Spray Bar
14 - Asphalt Pump
15 - 3-Way Valve
16 - Run and Mode Screens
1 - Maximizer Tank
2 - Tank Valve
3 - Solvent Valve
4 - Load Line
5 - Vent Valve
6 - Transfer Line
7 - Transfer Valve
8 - Solvent Circlt Valve
1
2
3
4
57
9
1213
11
15
14
6
8
10
M
R
16

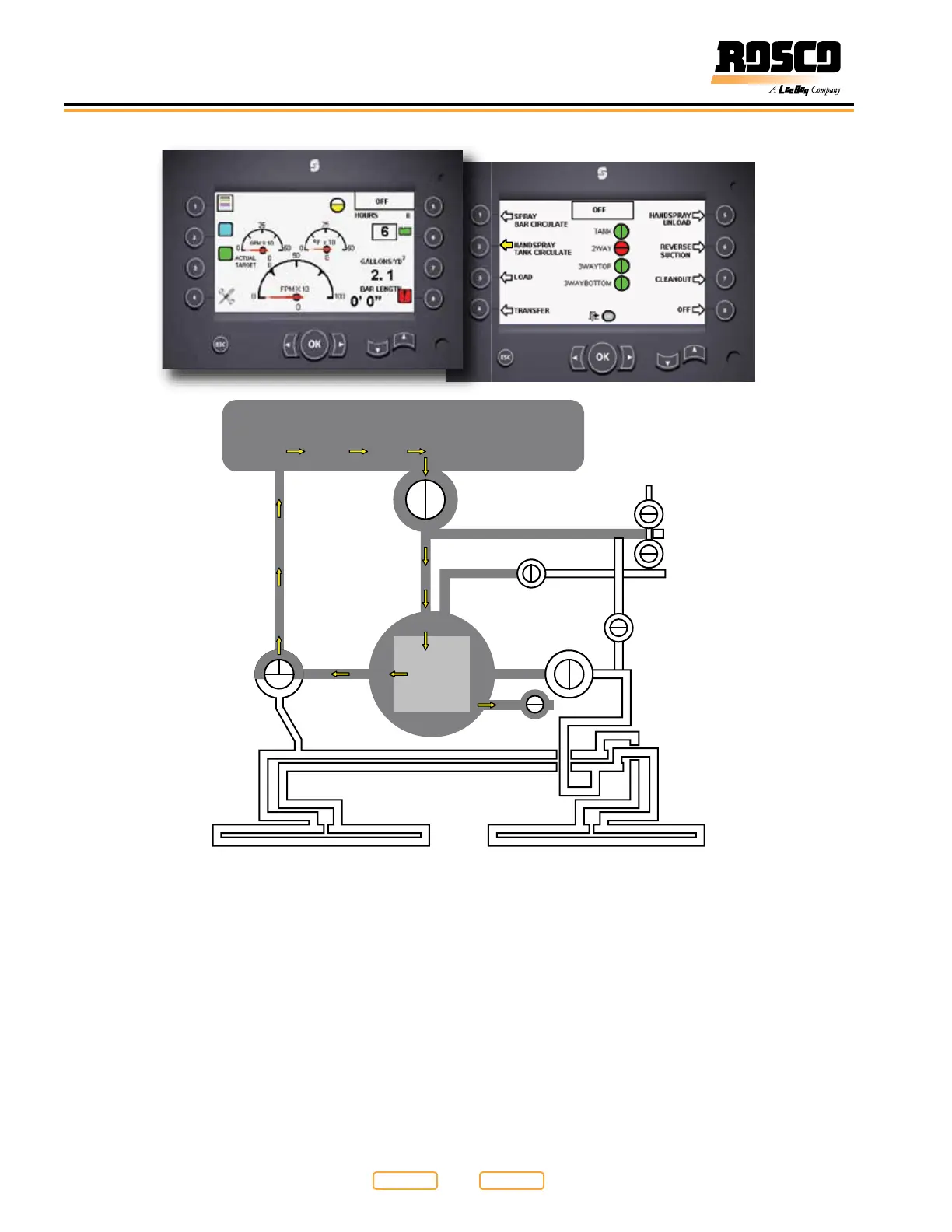

Handspray Mode (Tank Circulate)
Figure 6-20
