Rosemount 1495 - Page 21

Reference Manual
00809-0100-4792, Rev CA
August 2010
3-9
Rosemount 1495, 1496

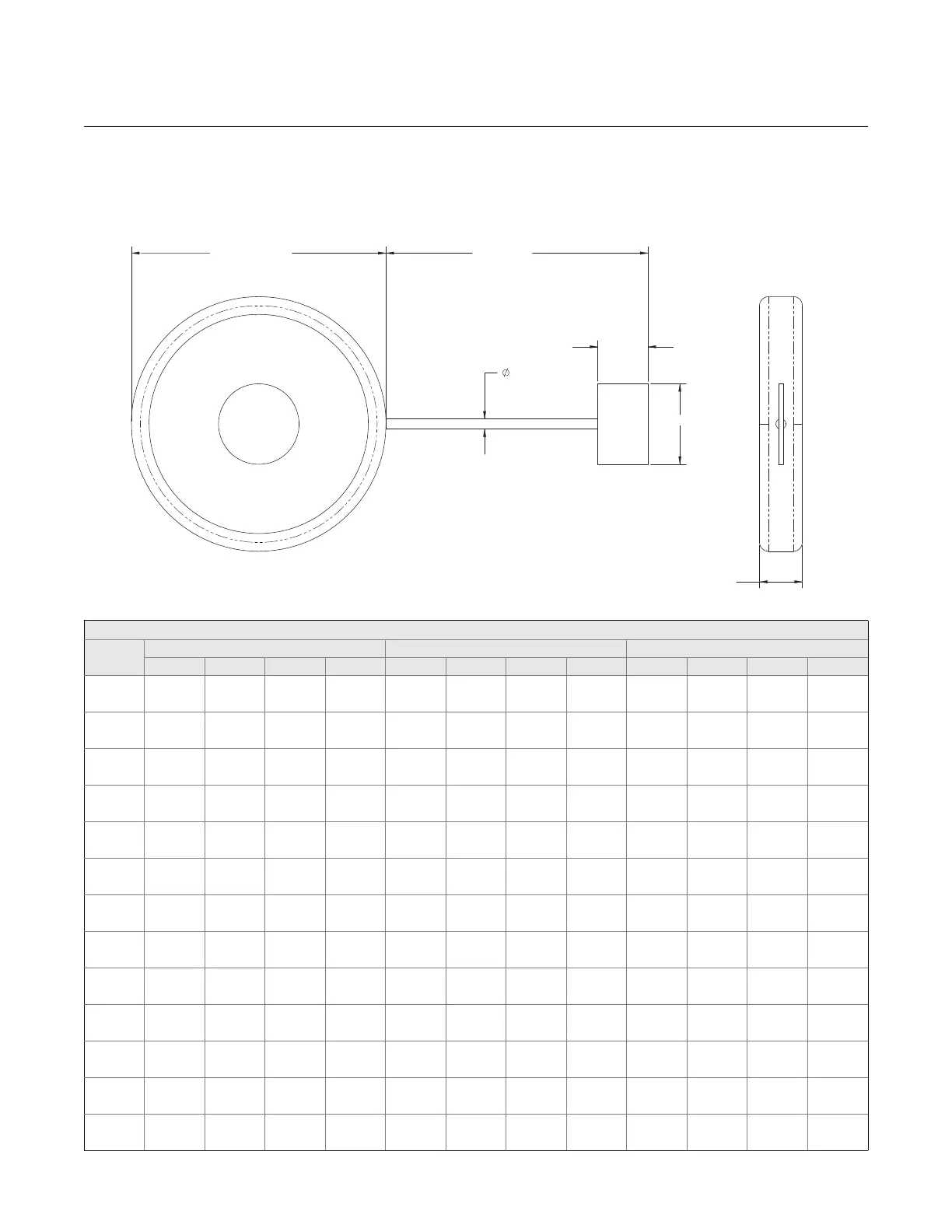

Integral Plate Holder (If Ordered)
Flange Rating
Line
Size
150# 300# 600#
Ring No. C D E Ring No. C D E Ring No. C D E
2-in.
(DN 50)
R-22 3.56 5.50 1.06 R-23 3.69 5.50 1.06 R-23 3.69 5.50 1.06
2
1
/2-in.
(DN 65)
R-25 4.31 6.50 1.06 R-26 4.44 6.50 1.06 R-26 4.44 6.50 1.06
3-in.
(DN 80)
R-29 4.81 6.50 1.06 R-31 5.31 6.50 1.06 R-31 5.31 6.50 1.06
4-in.
(DN 100)
R-36 6.19 6.50 1.06 R-37 6.31 6.50 1.06 R-37 6.31 6.50 1.06
6-in.
(DN 150)
R-43 7.94 7.50 1.06 R-45 8.75 7.50 1.06 R-45 8.75 7.50 1.06
8-in.
(DN 200)
R-48 10.06 7.50 1.06 R-49 11.06 7.50 1.06 R-49 11.06 7.50 1.06
10-in.
(DN 250)
R-52 12.31 8.50 1.06 R-53 13.19 8.50 1.06 R-53 13.19 8.50 1.06
12-in.
(DN 300)
R-56 15.31 8.50 1.06 R-57 15.44 8.50 1.06 R-57 15.44 8.50 1.06
14-in.
(DN 350)
R-59 15.94 8.50 1.06 R-61 16.94 8.50 1.06 R-61 16.94 8.50 1.06
16-in.
(DN 400)
R-64 18.06 8.50 1.19 R-65 18.94 8.50 1.19 R-65 18.94 8.50 1.19
18-in.
(DN 450)
R-68 20.69 8.50 1.19 R-69 21.44 8.50 1.19 R-69 21.44 8.50 1.19
20-in.
(DN 500)
R-72 22.31 8.50 1.25 R-73 23.50 8.50 1.25 R-73 23.50 8.50 1.25
24-in.
(DN 600)
R-76 26.81 8.50 1.44 R-77 27.88 8.50 1.44 R-77 27.88 8.50 1.44
C
D
E
