AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual
- 129 -

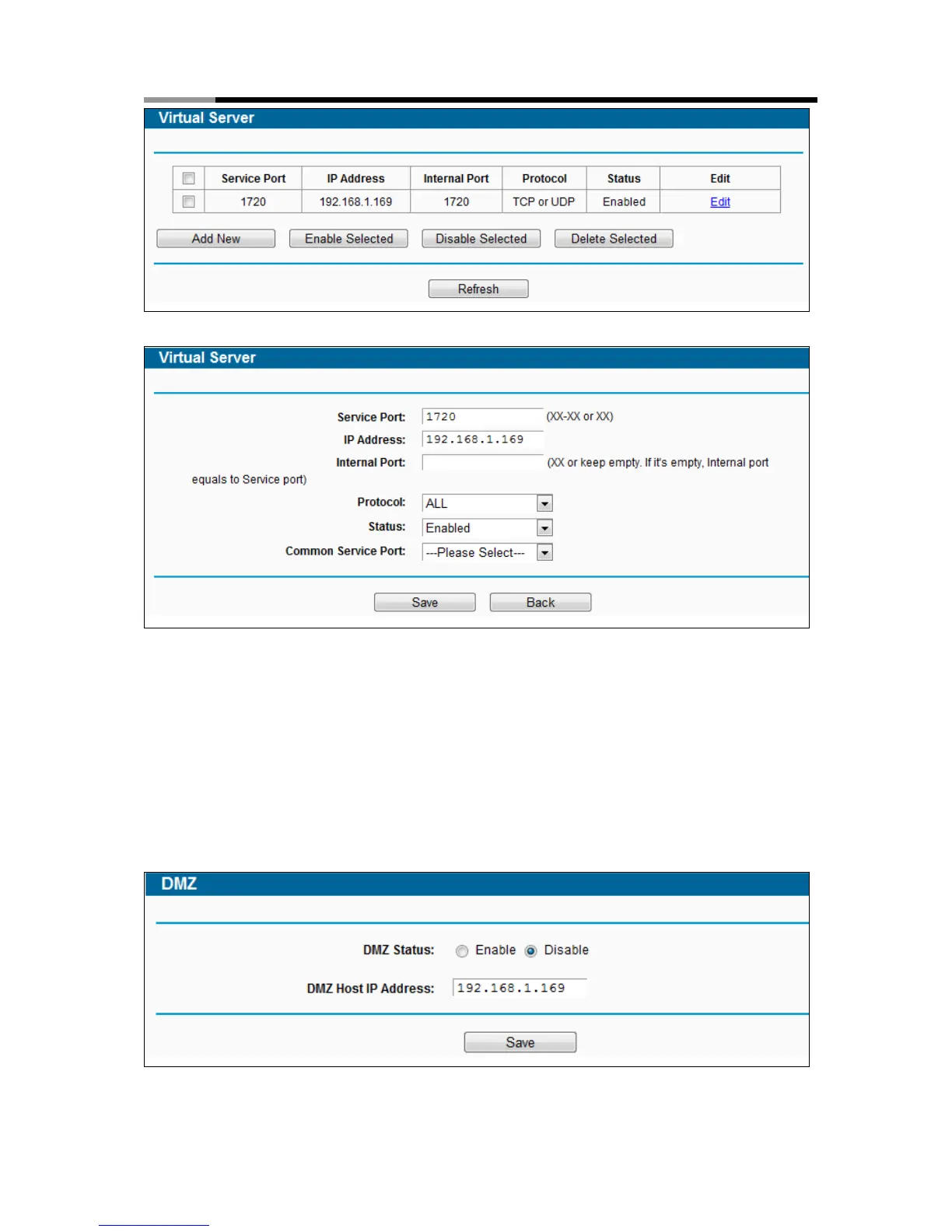

Figure A-4 Virtual Servers
Figure A-5 Add or Modify a Virtual server Entry
Note:
Your opposite side should call your WAN IP, which is displayed on the “Status” page.
4) How to enable DMZ Host: Log in to the router, click the “Forwarding” menu on the left of
your browser, and click "DMZ" submenu. On the "DMZ" page, click Enable radio button
and type your IP address into the “DMZ Host IP Address” field, using 192.168.1.169 as
an example, remember to click the Save button.
Figure A-6 DMZ
