AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual
- 16 -
Username/Password - Enter the Username and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.

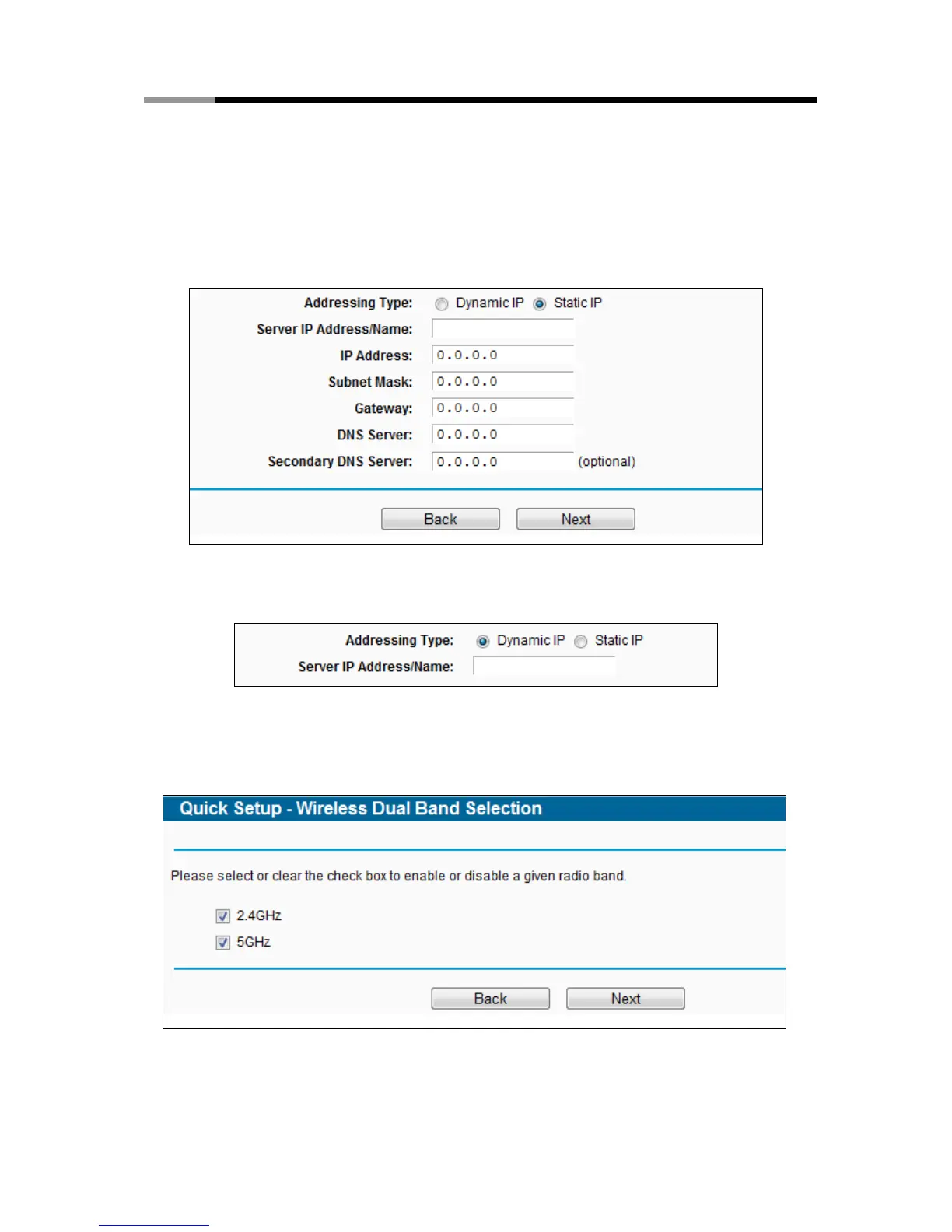

Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have
been provided by your ISP. Then please enter server IP address or domain name provided by
your ISP, and also enter the corresponding parameters.
Select Dynamic IP if none of the above parameters are provided. Then you just need to enter
server IP address or domain name provided by your ISP.
5. After finishing the WAN Connection Type selection, the Dual Band Selection page will
appear as shown in Figure 3-12. Here we take “2.4GHz and 5GHz” for example. Click Next to
continue.
Figure 3-12 Quick Setup – Dual Band Selection
2.4GHz - You can use the 2.4GHz band to connect to many classic wireless devices like
gaming consoles, laptops, DVRs, etc.
