AC750 Wireless Dual Band Gigabit Router RNX-AC750RT User Manual
- 15 -
Username/Password - Enter the Username and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Select Static IP if the IP Address/ Subnet Mask/ Gateway and DNS server address have
been provided by your ISP. Then please enter server IP address or domain name provided by
your ISP, and also enter the corresponding parameters.
Select Dynamic IP if none of the above parameters are provided. Then you just need to enter
server IP address or domain name provided by your ISP.
5) If your connection type is PPTP, select PPTP in Figure 3-6 and the next screen will
appear as shown in Figure 3-11. Configure the following parameters and then click Next
to continue.

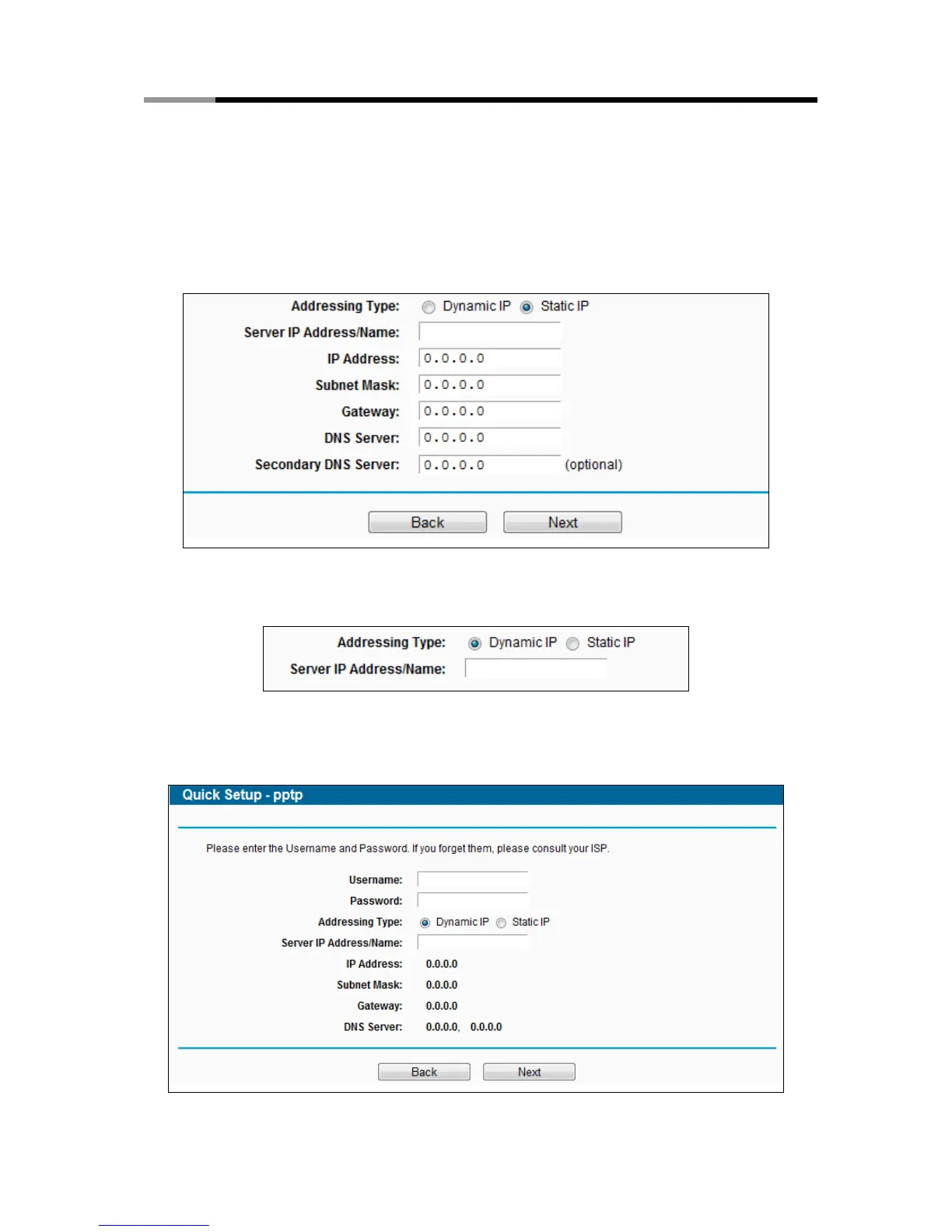

Figure 3-11 Quick Setup – PPTP
