AC-225x Panel Setup
14 AC-225x Series Hardware Installation Manual
3.1 Inputs Wiring – Non-Supervised Inputs

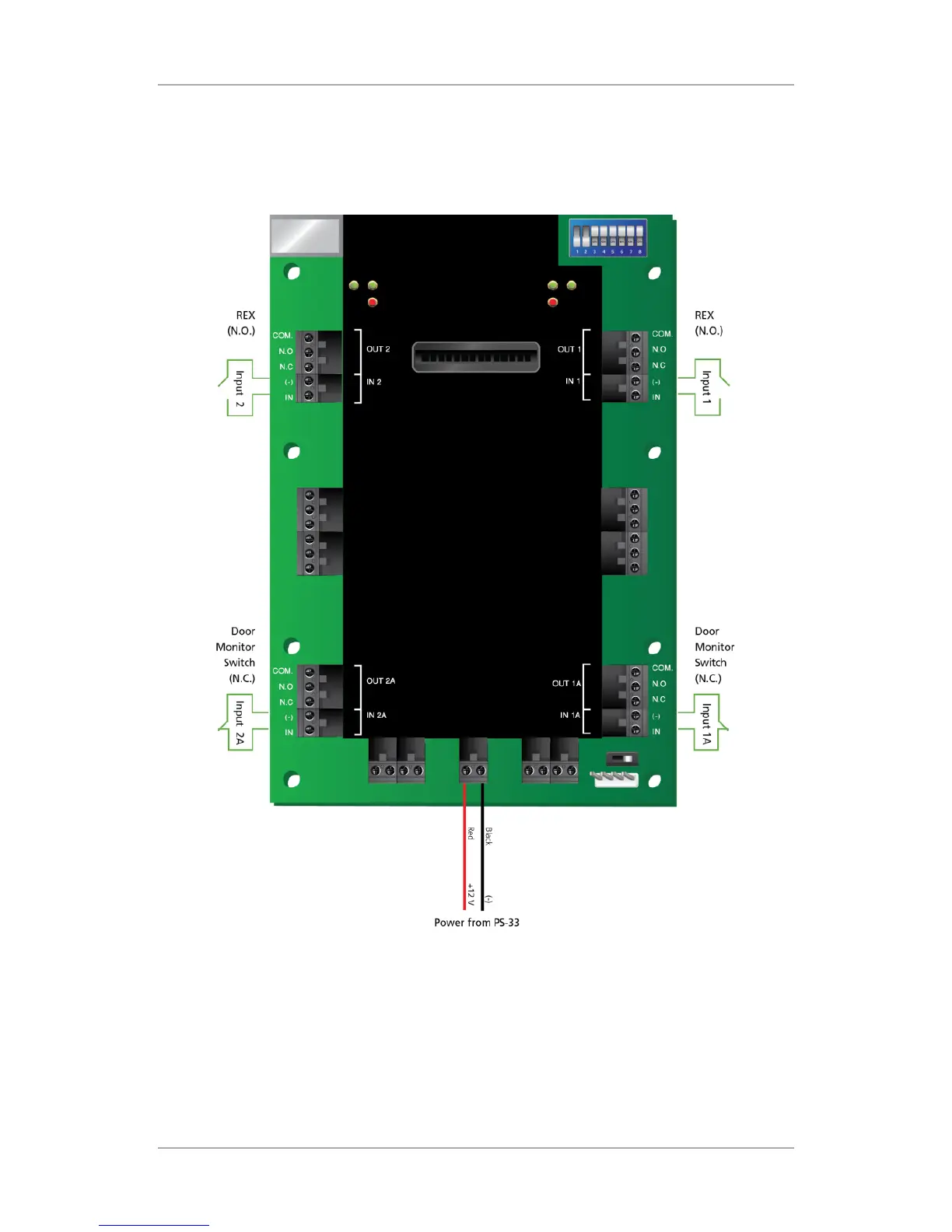

Figure 3 presents a detailed view of the non-supervised inputs and their
connection options.
Figure 3: Inputs Wiring – Non-supervised Inputs
3.2 Inputs Wiring – Supervised Inputs
When wiring the AC-225x for supervised inputs, resistors should be placed on
the input switch and not on the terminal block.
For further details, see Chapter 4.
