AC-225x Panel Setup
AC-225x Series Hardware Installation Manual 19
3.7 MD-IO84
The MD-IO84 is an optional I/O expansion board which adds four relay outputs
and eight supervised inputs to the access control panel. Attach the MD-IO84 to
the AC-225x's expansion slot, as marked in red in Figure 9.

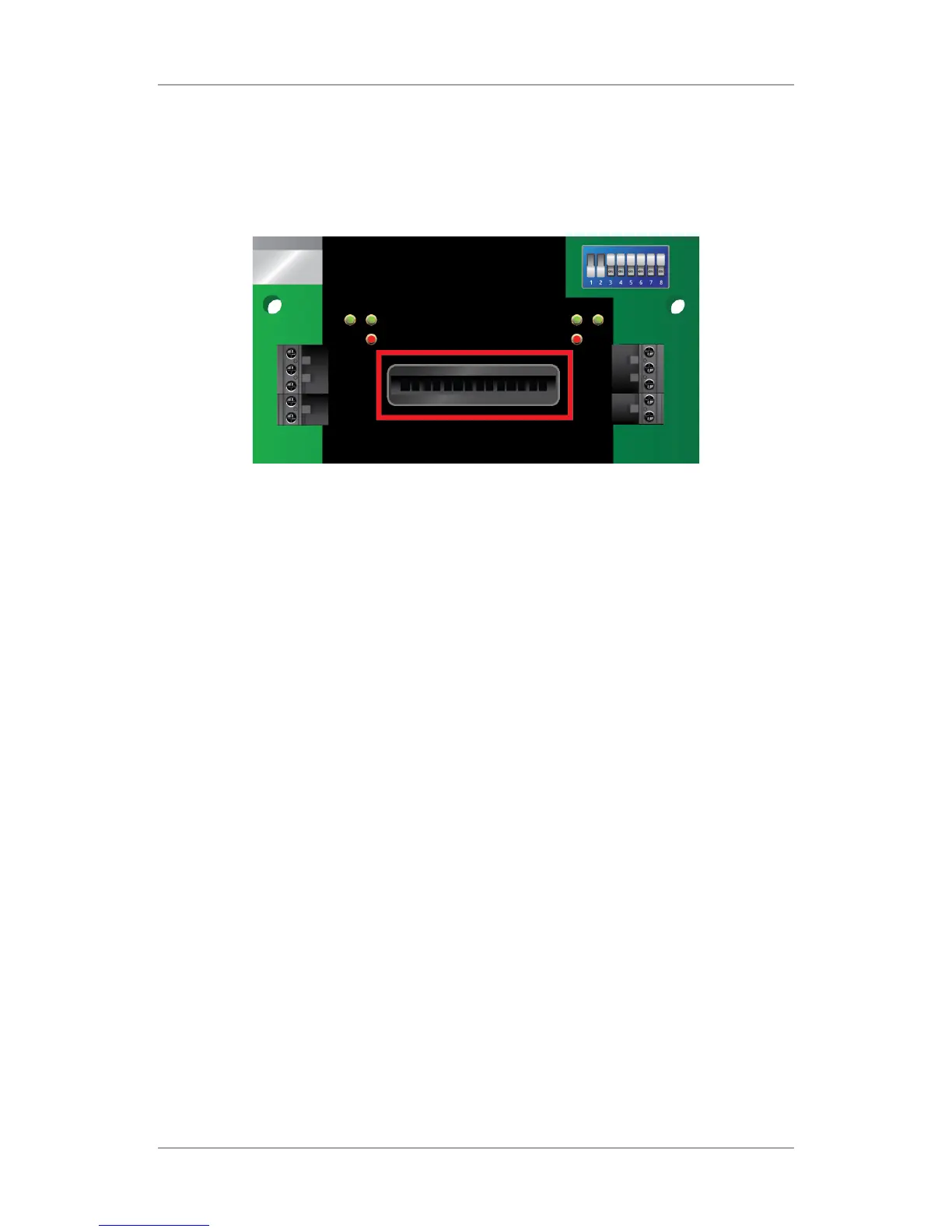

Figure 9: Connector Location for MD-IO84 or MD-D02
For more information, see the MD-IO84 Installation and User Guide .
3.8 MD-D02
The MD-D02 is an optional reader expansion board which adds 2 readers, four
relay outputs and four supervised inputs to the access control panel. Attach
the MD-D02 to the AC-225x's expansion slot, as marked in red in Figure 9.
For more information, see the MD-D02 Installation and User Guide .
