ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
1. General
Warning: For the best possible engine operation, compliance with the following advice
regarding installation of engine and equipment is required.
Warning: Engine operation is permitted only with equipment supplied by ROTAX.
Warning: Modifications on engine or equipment are not allowed.
Warning: Besides the engine-specific installation advice, also take note of information from
the respective chassis manufacturer.
Note: An Engine Identity Card stating date of delivery and company has to be issued by
the authorized Service Center for the customer.
Note: The data entered in the engine identity card is required for verification of a warranty
claim. Without a completely filled-in Engine Identity Card no warranty claim will be
granted.
Note: In case of participating in the ROTAX MAX CHALLENGE (RMC) the engine must be
verified for conformity with the technical regulations and sealed.
The serial number of the seal must be entered in the Engine Identity Card.
2. Installation and connection of the fuel system
2.1. Installation and connection of the fuel pump
Install the support bracket (pos. 1) on the carburetor socket using 3 screws M6
(pos. 2).
Tightening torque 6 Nm / 53 lbf in.

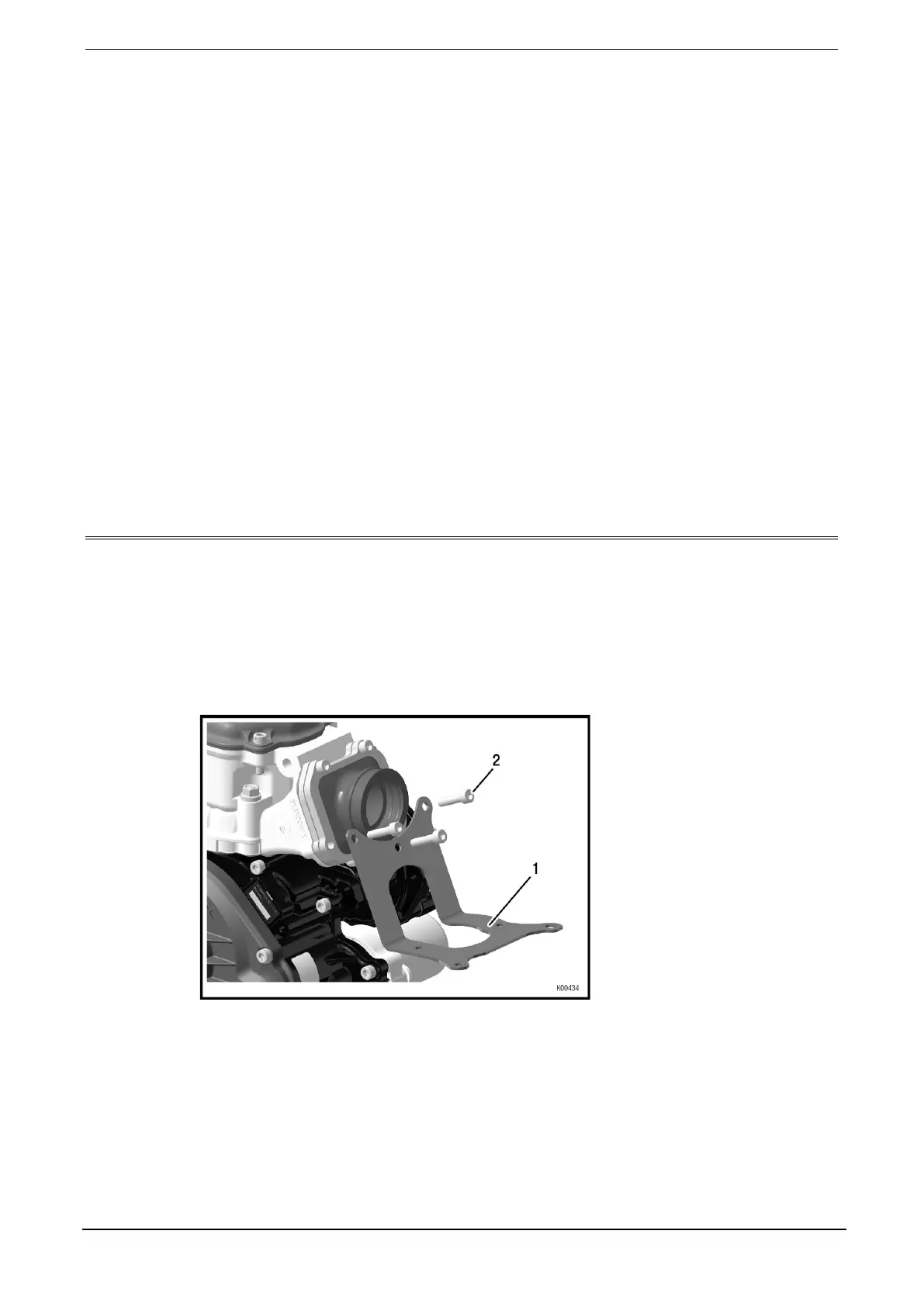

Fig. 1
Install the fuel pump with the two supplied Allen screws M6x20 (pos. 2), locknuts
(pos. 4) and washers (pos. 3) on support bracket (pos. 1).
Page 4/53
Edition 07/2016
