ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
3. Installation and connection of the carburetor

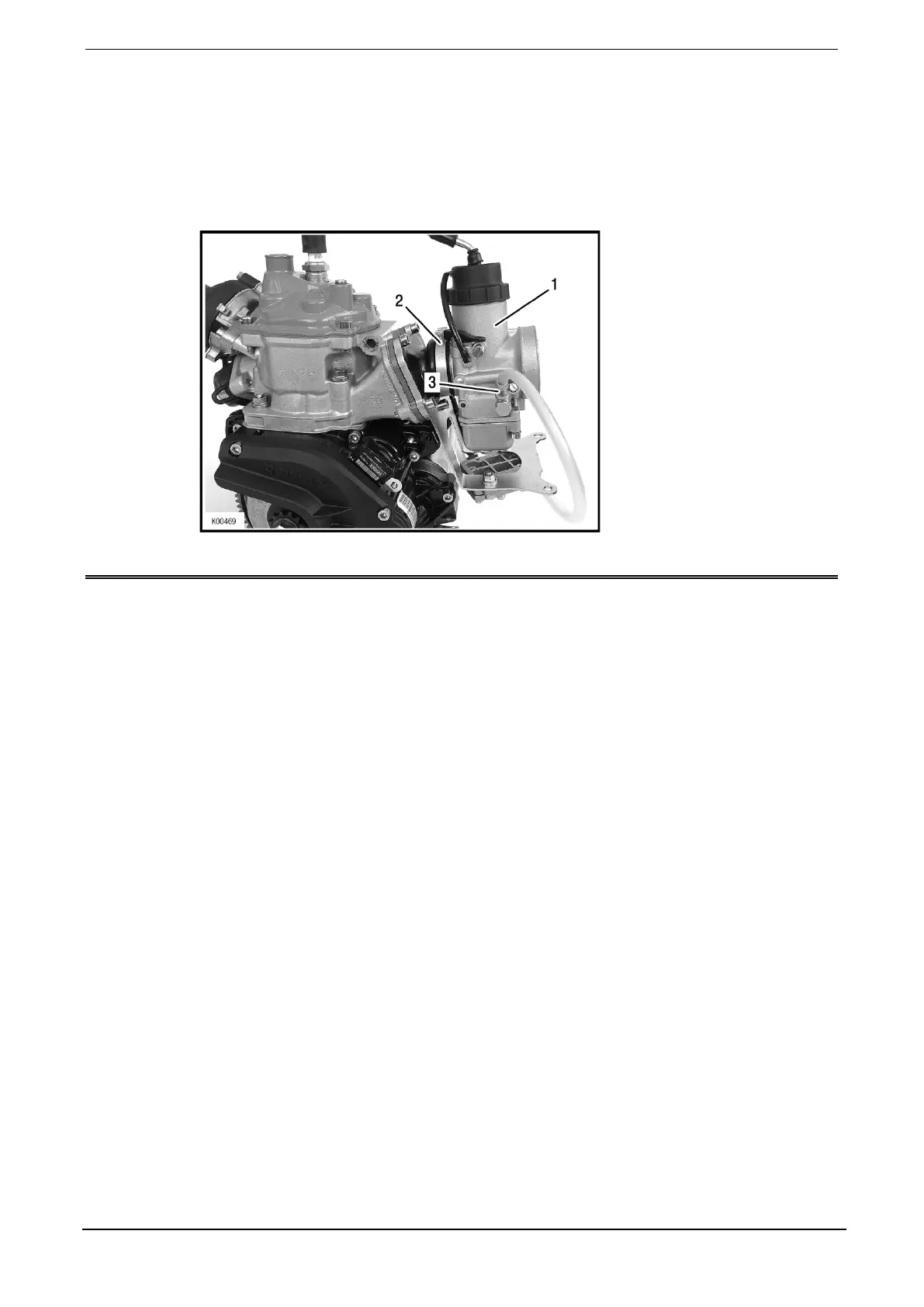

See Fig. 7.
 Remove the transport sticker from the carburetor.
 Fit carburetor (pos. 1) into carburetor socket and secure with hose clamp (pos. 2) in
vertical position.
 Connect the outlet hose of the fuel pump with fuel inlet on carburetor (pos. 3).
Fig. 7
4. Installation of the Bowden cable for carburetor control
See Fig. 8.
 Carefully remove carburetor cover with rubber ring (pos. 7, 8).
 Attention: Reset spring (pos. 6) of carb piston presses against carburetor cover and might
eject carburetor cover at removal.
 Remove nipple screw (pos. 5) with A/F 10 wrench from carburetor piston (pos. 2).
 Engage nipple of Bowden wire (pos. 9) in nipple screw (pos. 5).
 Fit nipple screw in carburetor piston and hand tighten with A/F 10 wrench.
 Insert carburetor piston (pos. 2) into carb body with cut-away of piston towards
intake silencer.
 Pass Bowden wire through compression spring (pos. 6) and through cover with
rubber ring (pos. 7, 8) of carburetor.
 Fit carb cover (pos. 7) on carburetor.
 Pass Bowden wire through Bowden conduit and through adjustment screw on
chassis.
 Connect Bowden cable on throttle pedal.
Page 7/53 Edition 07/2016
