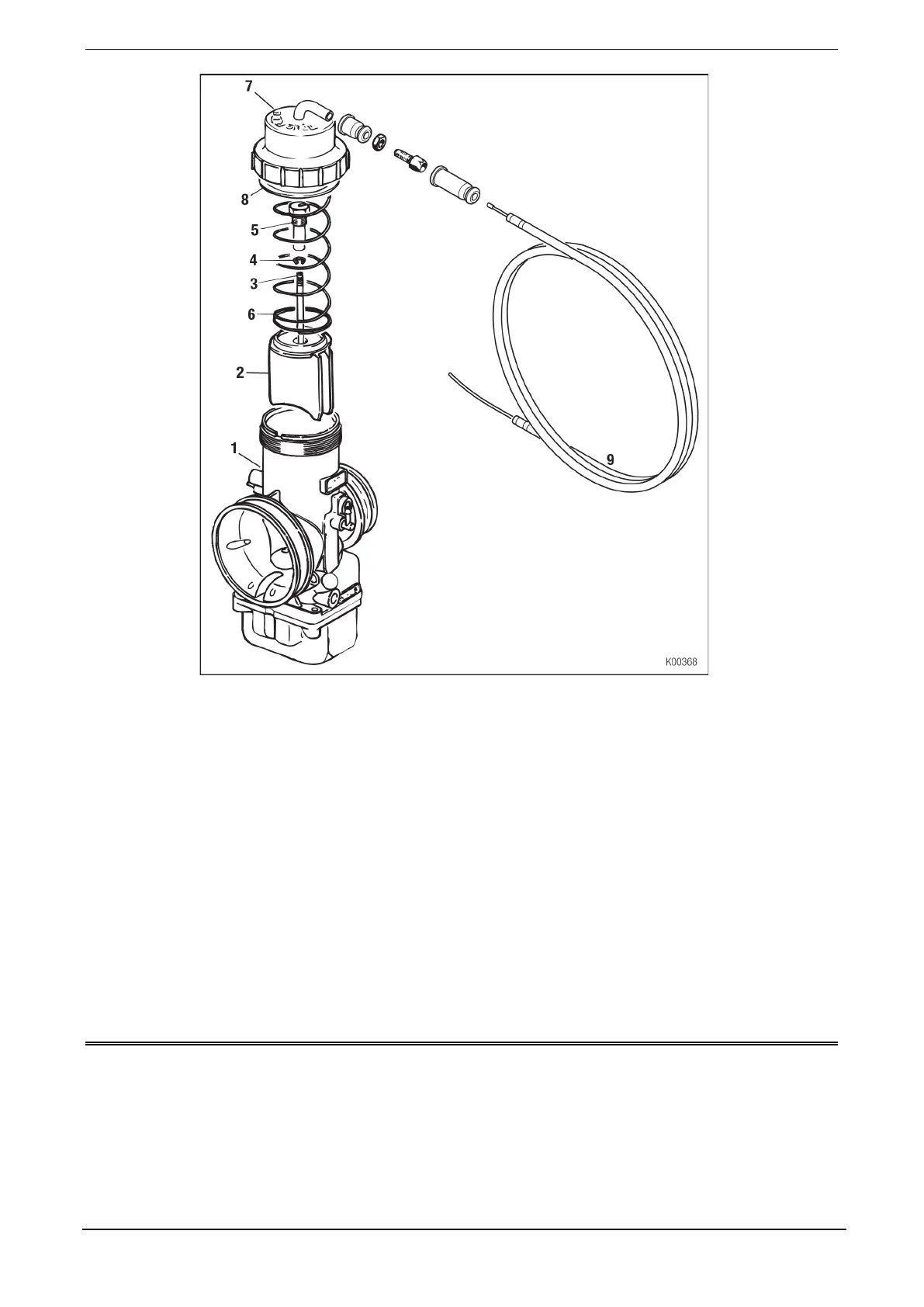

Fig. 8
 Note: Shorten Bowden cable and Bowden conduit as required.
 Route carburetor Bowden cable on top side of chassis tubes and attach with cable
ties supplied. Make sure that the Bowden cable won’t touch any moving parts or the
track.
 Warning: The carburetor bowden cable must not be kinked or restricted as the
carburetor piston might stick in full throttle position.
 Set and secure the adjustment screw for Bowden cable on chassis such that the
carburetor piston will remain in closed position when throttle pedal is not activated.
 Set and secure the stop screw for throttle pedal such, that with pedal completely
pressed down, the carburetor piston will be in the full open position. The Bowden
cable must not be under fully tension if the throttle is in fully open position.
