ROTAX 125 MAX evo, Junior MAX evo, Mini MAX evo, Micro MAX evo
5. Installation of the radiator
 Attention: To warrant the best possible engine cooling ensure that the air stream covers the
complete radiator area.

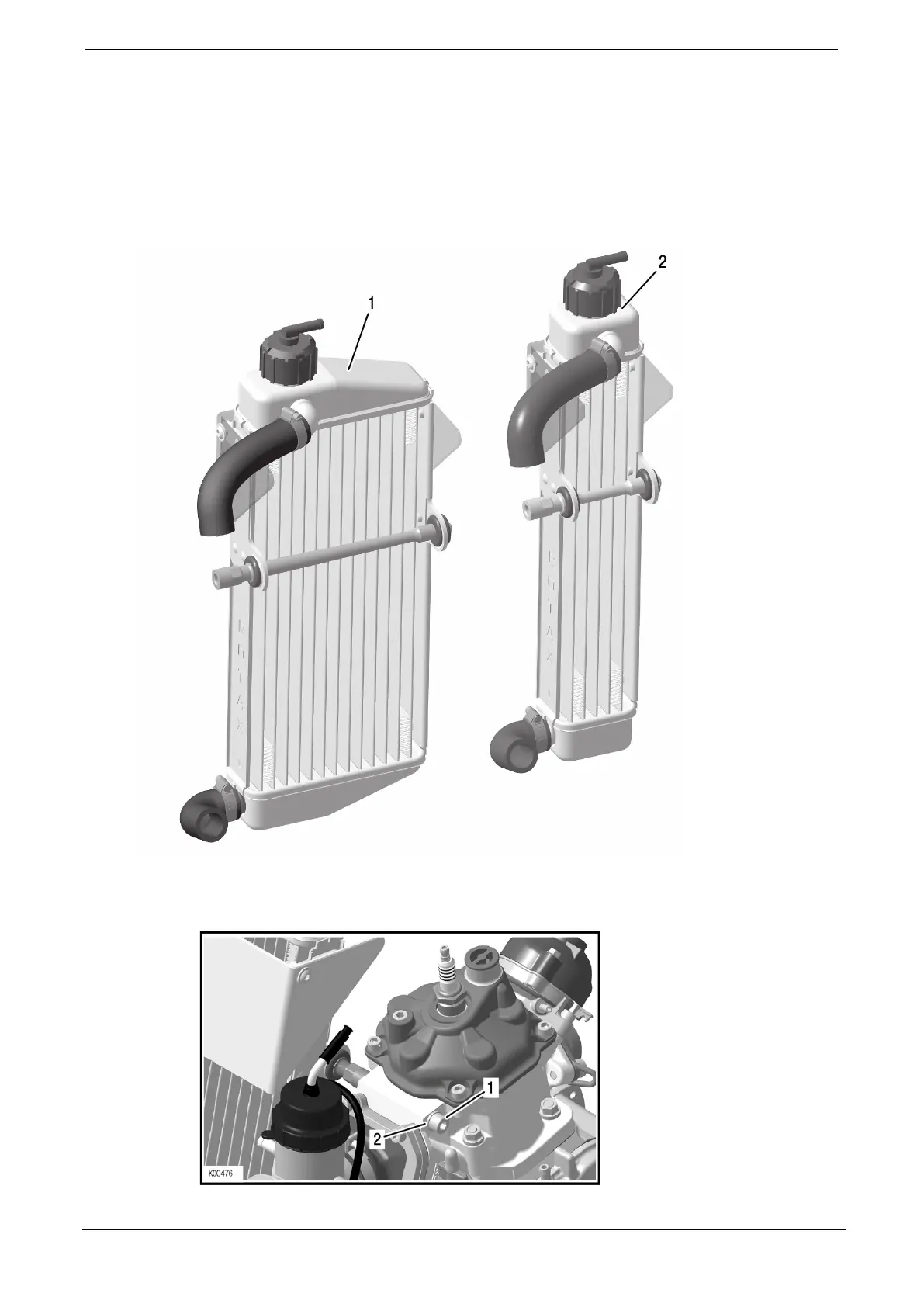

 Pre-mount radiator with coolant hoses and radiator support as shown in Fig. 9.
 Note: Radiator (Pos. 1) shown in Fig. 9 fits to engine types 125 MAX evo, Junior MAX evo
and Mini MAX evo. The small radiator (Pos. 2) fits to engine type Micro MAX evo.
The installation of both radiators is similar.
Fig. 9 (K00428)
 Attach the pre-assembled radiator to the engine with Allen screw M8x75 (pos.1) and
washer (pos.2), see Fig. 10.
Fig. 10
Page 9/53 Edition 07/2016
