5 Preparing the Drive Bush
5.2 Drive Bush - Type B Coupling:
Please note: Type B couplings are NOT suitable for axial
loads/forces

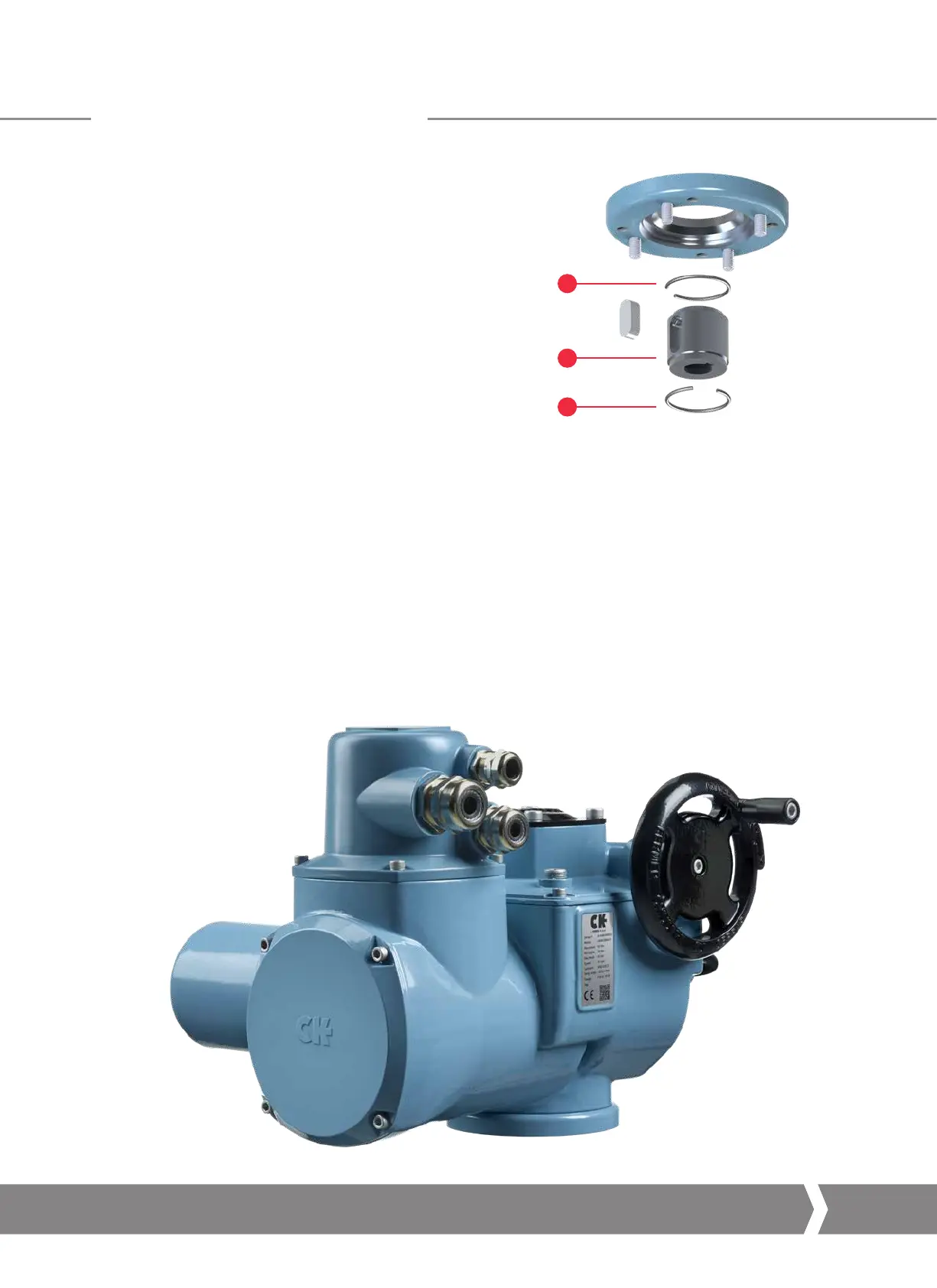

5. 2.1 Disassembly
Turn the actuator onto its side.
Type B3 and B4:
Using a suitable tool, remove the circlip (1) whilst pulling the
drive bush (2) out. The drive bush will detach from the centre
column, leaving circlip (3) behind.
Type B1:
This drive bush is supplied as an integral part of the actuator.
5.2.2 Reassembly
Refitting is the reverse of removal, ensuring that the drive
bush is greased and the bolts are tightened to the correct
torque. See Table A on page 13.
1
2
3
Keeping the World Flowing
11
