rotork IQT Series User Manual

Using the
+
or
-
key select [ l] for
current set point signal or [ U] for
voltage set point signal.
Current Mode Selected
PRESS THE KEY.
The displayed option will flash
indicating that it has been set.
Press the
O key to display [Fr].
Using the
+
or
-
key select [05], [10] or
[20] to correspond with the set point
signals within the range of 0–5mA or
volts, 0–10mA or volts or 0–20mA or
volts (i.e. 4–20mA).
0–20mA or Voltage
Range Selected
PRESS THE KEY.
The displayed option will flash
indicating that it has been set.
Press the
O key to display [FL].
APPLY MINIMUM
SET POINT SIGNAL
Using the
+
or
-
key select:
[
][ ] = valve closed
[01] to [99] = percent open
[] = valve open
to correspond with the LOW set point
signal.
Valve Closed
on LOW Signal
PRESS THE KEY.
The displayed value will flash indicating
that it has been set.
Press the
O key to display [FH].
APPLY MAXIMUM
SET POINT SIGNAL
Using the
+
or
-
key select:
[
][ ] = valve closed
[01] to [99] = percent open
[] = valve open
to correspond with the HIGH set point
signal.
Valve Open
on HIGH Signal
PRESS THE KEY.
The displayed value will flash indicating
that it has been set.
Press the
O key to display [Fd].
36

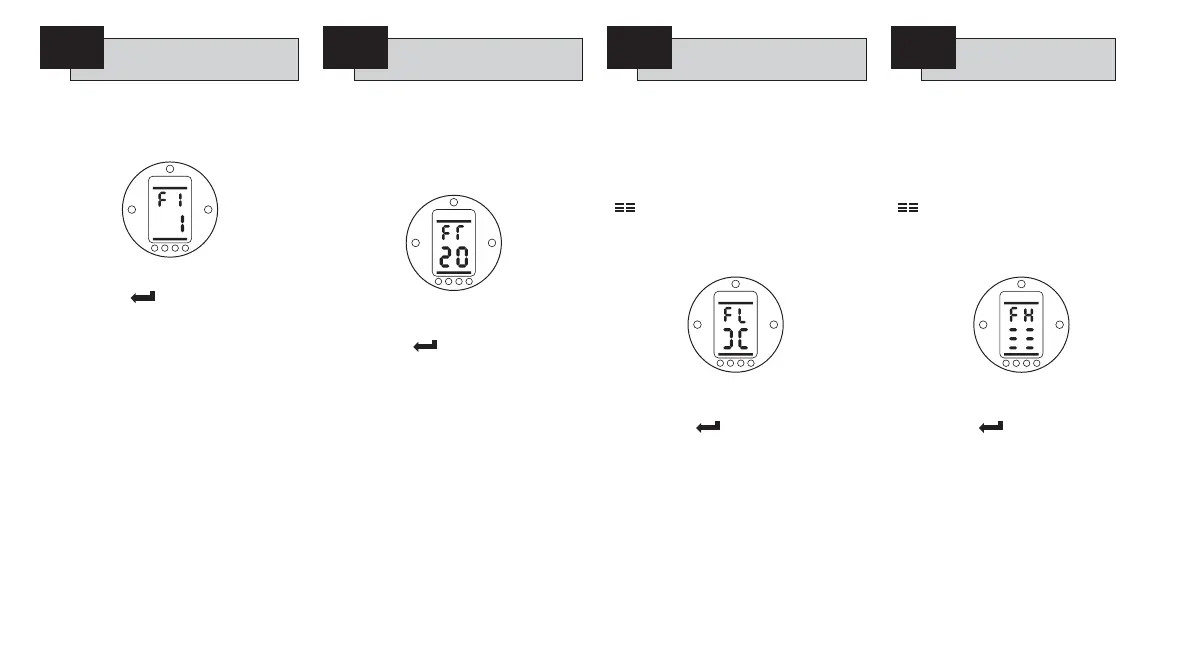

FI
Set Point
Signal Type
Fr
Set Point
Signal Range
FL
Valve Position
LOW Set Point
FH
Valve Position
HIGH Set Point
