rotork IQT Series User Manual

Setting instructions for actuators
including an optional DeviceNet DFU
module – check wiring diagram for
inclusion.
DeviceNet module set up screens can
be turned off to provide extra security.
The action of turning screens on or off
does not effect its operation.
Use the
+
or
-
key to turn on
DeviceNet set up screens.

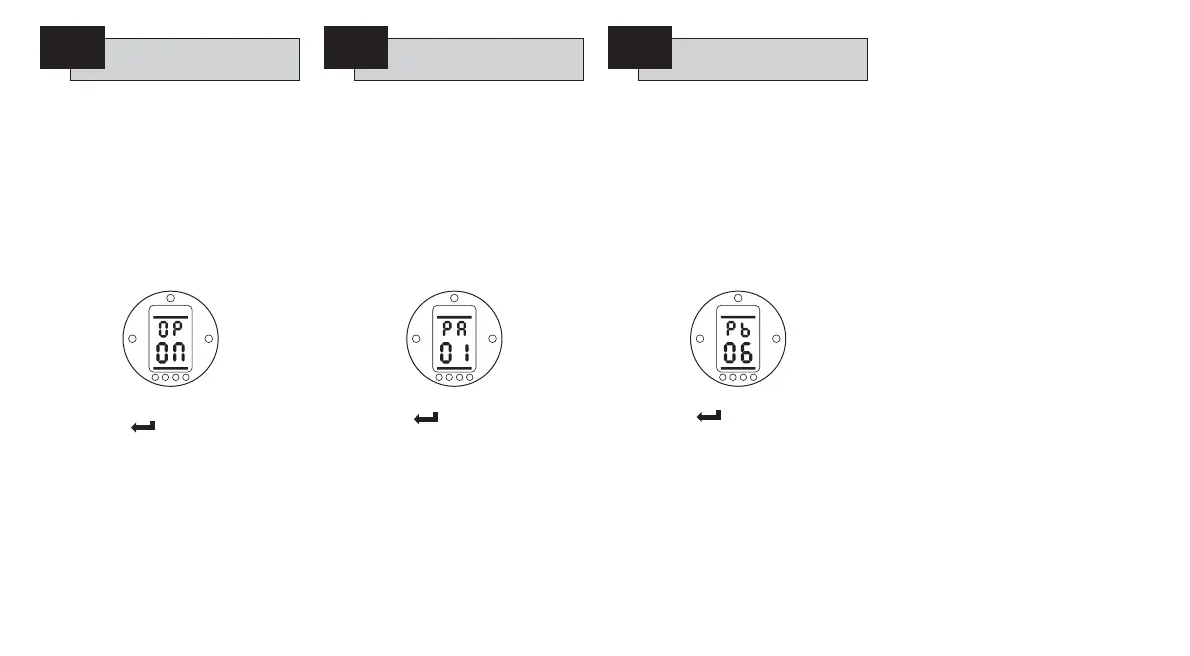

DeviceNet Set-up Screens ON
PRESS THE KEY.
The displayed option will flash
indicating that it has been set.
Press the
Q key to display the
DeviceNet set up displays.
The DeviceNet module must be
allocated a unique address.
Using the
+
or
-
keys display the
required address.
Address to be set within the range 01
to 3F Hexadecimal. See page 72 for
conversion. If an address value outside
this range is entered, the address set
will revert to 01 (for 00) or 3F (for value
above 3F).
PRESS THE KEY.
The displayed option will flash
indicating that it has been set.
Press the
O key to display [Pb].
The DeviceNet module must be set to
the DeviceNet highway baudrate.
Using the
+
or
-
keys display the
required baudrate:
[01] 125 k baud
[03] 250 k baud
[06] 500 k baud
PRESS THE KEY.
The displayed option will flash
indicating that it has been set.
Press the
O key to display [PF].
51
Option DeviceNet
9.11
DeviceNet Address
PA
DeviceNet Baudrate
Pb
