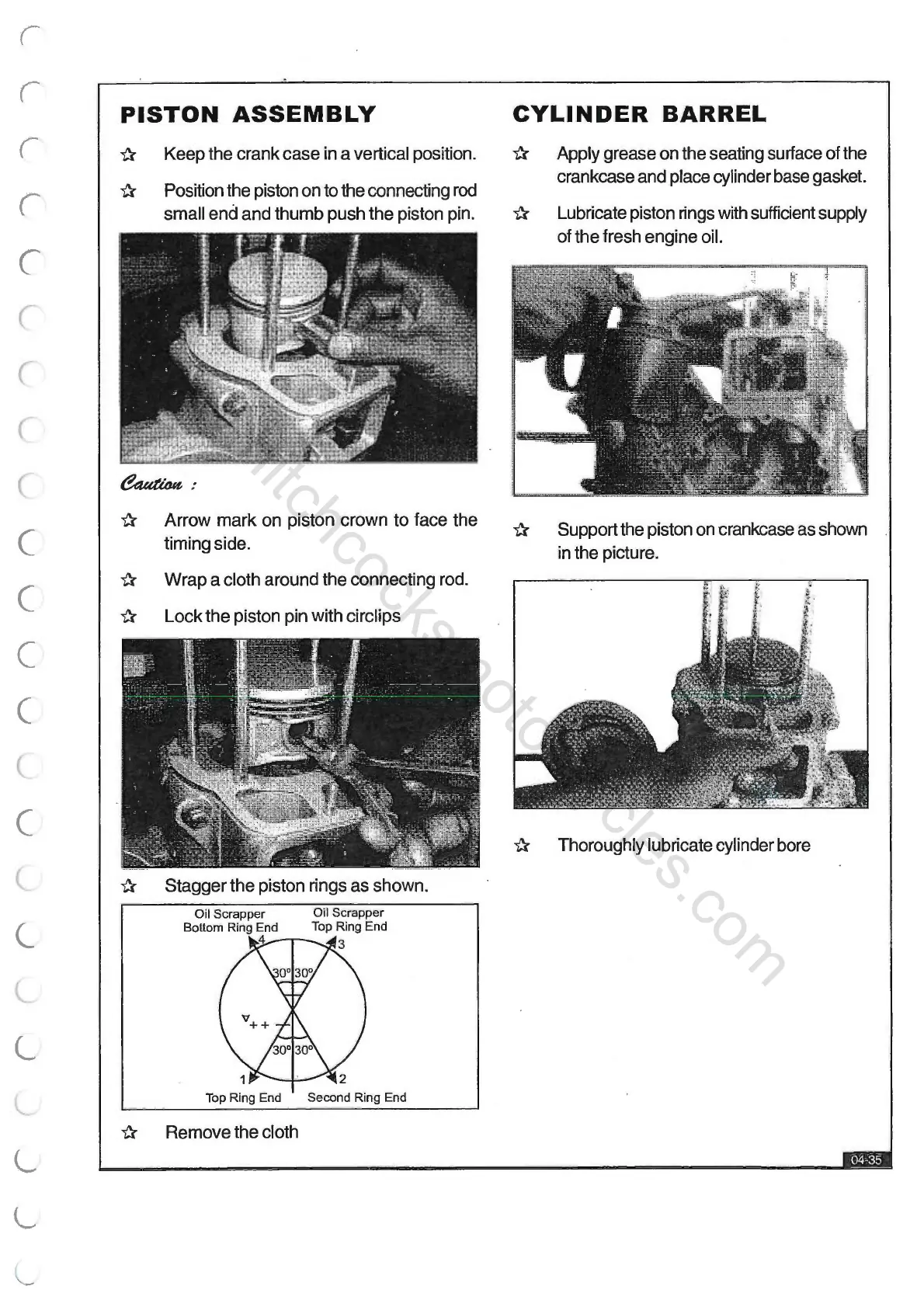

PISTON ASSEMBLY
* Keep the crank case in a vertical position.
* Position the piston on to the connecting rod
small end and thumb push the piston pin.
* Arrow mark on piston crown to face the
timing side.
* Wrap a cloth around the connecting rod.
* Lock the piston pin with circlips
* Stagger the piston rings as shown.
Oil Scrapper Oil Scrapper
Bottom Ring End Top Ring End
___,,...___ 3
Top Ring End Second Ring End
* Remove the cloth
CYLINDER BARREL
* Apply grease on the seating surface of the
crankcase and place cylinder base gasket.
* Lubricate piston rings with sufficient supply
of the fresh engine
oil.
* Support the piston on crankcase as shown
in the picture.
* Thoroughly lubricate cylinder bore
www.hitchcocksmotorcycles.com

Royal Enfield ELECTRA Specifications

General

Displacement	346 cc
Compression Ratio	8.5:1
Max Power	19.8 bhp @ 5250 rpm
Max Torque	28 Nm @ 4000 rpm
Fuel System	Carburetor
Transmission	5 Speed Constant Mesh
Front Suspension	Telescopic, 35mm forks, 130mm travel
Overall Length	2140 mm
Bore x Stroke	70 mm x 90 mm
Clutch	Wet multi-plate
Rear Suspension	Twin shock absorbers with 5-step adjustable preload, 80mm travel
Front Brake	280 mm Disc
Rear Brake	153 mm Drum
Fuel Tank Capacity	13.5 L
Reserve Fuel Capacity	2.5 litres
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
