Royal Enfield ELECTRA User Manual

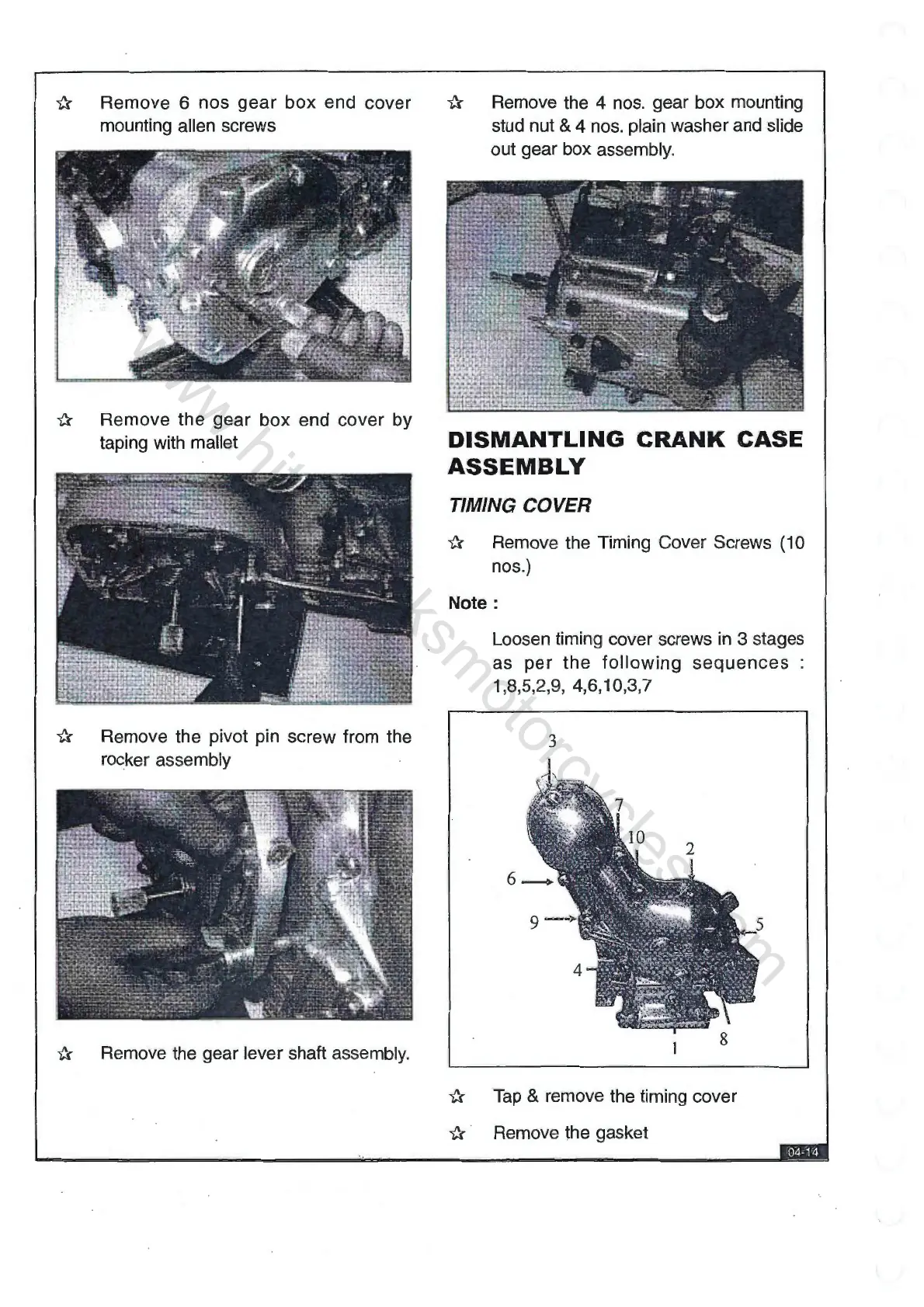

* Remove 6 nos gear box end cover
mounting alien screws
* Remove the gear box end cover by
taping with mallet
* Remove the pivot pin screw from the
rocker assembly
* Remove the gear lever shaft assembly.
* Remove the 4 nos. gear box mounting
stud nut
& 4 nos. plain washer and slide
out gear box assembly.
DISMANTLING CRANK CASE
ASSEMBLY
TIMING COVER
* Remove the Timing Cover Screws (10
nos.)
Note:
Loosen timing cover screws in 3 stages
as per the following sequences :
1,8,5,2,9, 4,6, 10,3,7
3
* Tap & remove the timing cover
* · Remove the gasket
www.hitchcocksmotorcycles.com

Royal Enfield ELECTRA Specifications

General

Displacement	346 cc
Compression Ratio	8.5:1
Max Power	19.8 bhp @ 5250 rpm
Max Torque	28 Nm @ 4000 rpm
Fuel System	Carburetor
Transmission	5 Speed Constant Mesh
Front Suspension	Telescopic, 35mm forks, 130mm travel
Overall Length	2140 mm
Bore x Stroke	70 mm x 90 mm
Clutch	Wet multi-plate
Rear Suspension	Twin shock absorbers with 5-step adjustable preload, 80mm travel
Front Brake	280 mm Disc
Rear Brake	153 mm Drum
Fuel Tank Capacity	13.5 L
Reserve Fuel Capacity	2.5 litres
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
