Royal Enfield ELECTRA User Manual

r
r
(
(
(
(
(
(
(
(
(
(
(
(_
A
t.
2.
3.
4.
5
6.
7.
8.
B.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
. 18.
19.
20.
21.
22.

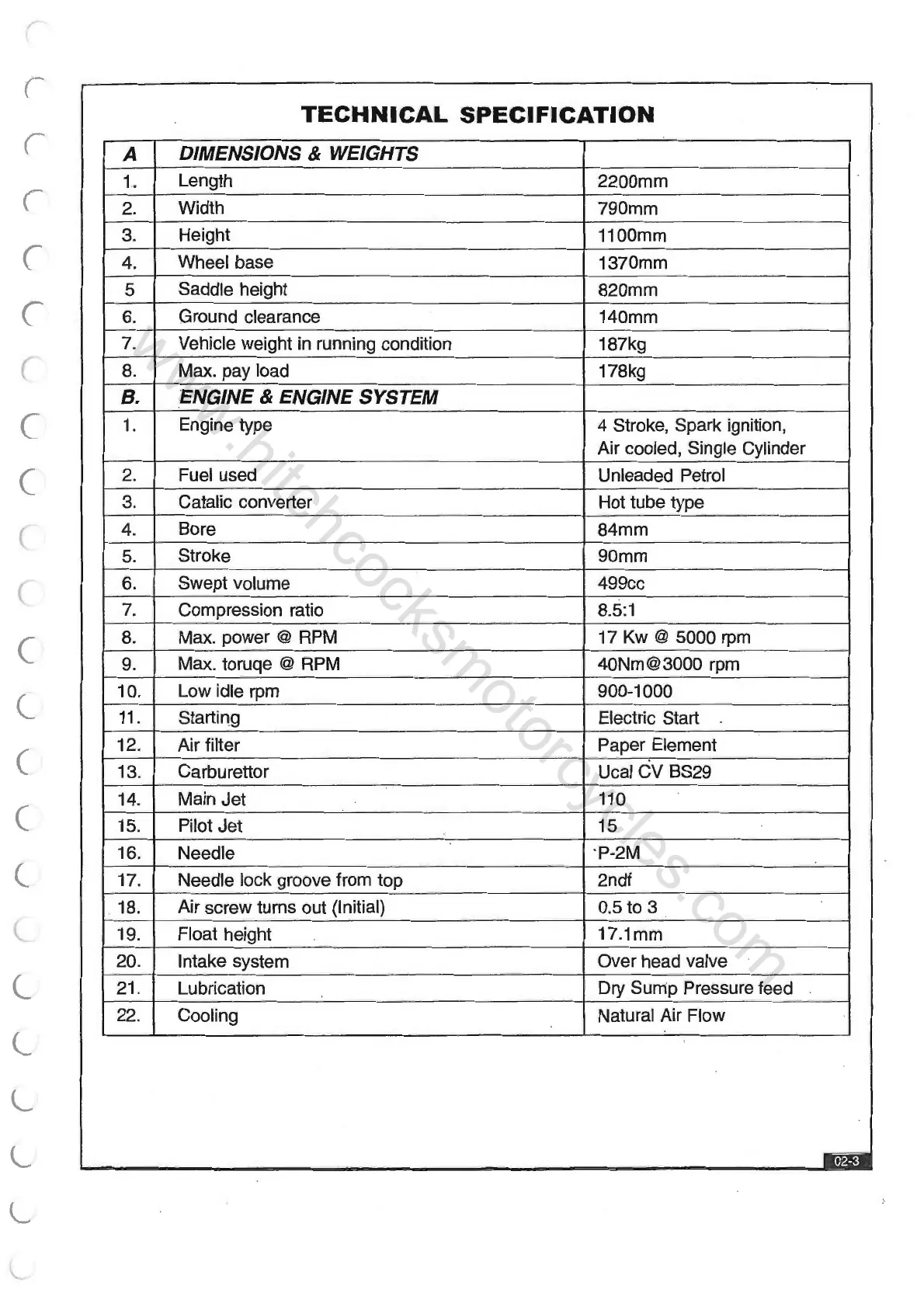

TECHNICAL SPECIFICATION
DIMENSIONS & WEIGHTS
Length
2200mm
Width
790mm
Height
1100mm
Wheel base
1370mm
Saddle height
820mm
Ground clearance
140mm
Vehicle weight
in running condition
187kg
Max. pay load
178kg
ENGINE & ENGINE SYSTEM
Engine type
4 Stroke, Spark ignition,
Air cooled, Single Cylinder
Fuel used
Unleaded Petrol
Catalic converter
Hot tube type
Bore 84mm
Stroke 90mm
Swept volume 499cc
Compression ratio 8.5:1
Max. power @ RPM 17
Kw@ 5000 rpm
Max. toruqe @ RPM 40Nm@3000 rpm
Low idle rpm 900-1000
Starting Electric Start
Air filter Paper Element
Carburettor Ucal CV B829
Main Jet
110
Pilot Jet
15
Needle
·P-2M
Needle lock groove from top 2ndf
Air screw turns out (Initial)
0.5 to 3
Float height 17.1mm
Intake system Over head valve
Lubrication
Dry Sump Pressure feed
Cooling
Natural Air Flow
www.hitchcocksmotorcycles.com

Royal Enfield ELECTRA Specifications

General

Displacement	346 cc
Compression Ratio	8.5:1
Max Power	19.8 bhp @ 5250 rpm
Max Torque	28 Nm @ 4000 rpm
Fuel System	Carburetor
Transmission	5 Speed Constant Mesh
Front Suspension	Telescopic, 35mm forks, 130mm travel
Overall Length	2140 mm
Bore x Stroke	70 mm x 90 mm
Clutch	Wet multi-plate
Rear Suspension	Twin shock absorbers with 5-step adjustable preload, 80mm travel
Front Brake	280 mm Disc
Rear Brake	153 mm Drum
Fuel Tank Capacity	13.5 L
Reserve Fuel Capacity	2.5 litres
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
