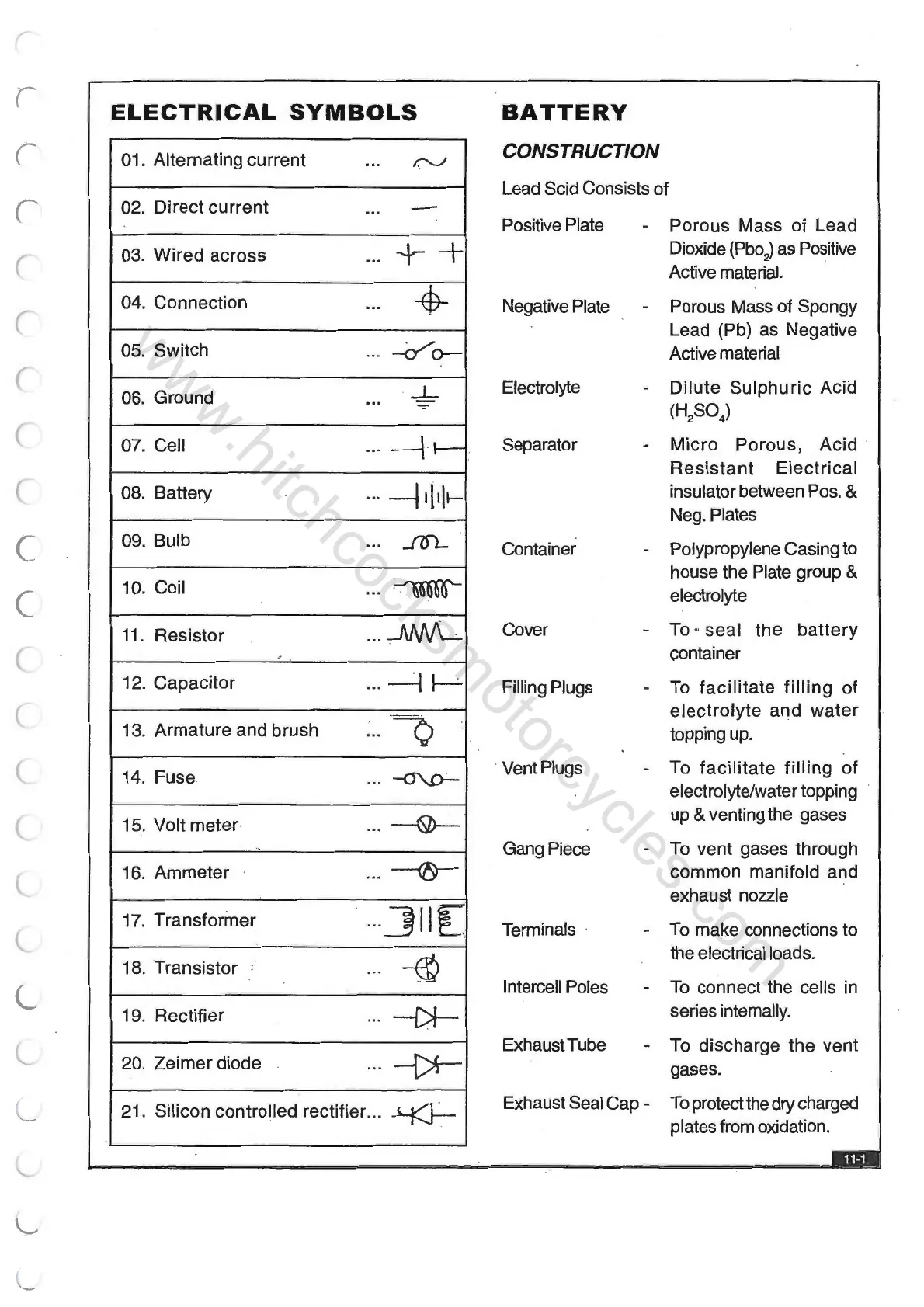

ELECTRICAL SYMBOLS
01. Alternating current
...
r-J
02. Direct current
...
-
03. Wired across
...
+
+
04. Connection
...
4-
05. Switch
...
---d" 0---
06. Ground
_j_
...
-
07. Cell
... -+~ :
08. Battery
... -i 1l1\~
09. Bulb
...
JlfL
10. Coil
...
~
11. Resistor
... -»NL-
.•
12. Capacitor
... ~ ~
13. Armature and brush ...
·o
14. Fuse ...
~
15. Volt meter
... --0>--
--
16. Ammeter
... -<f)-
17. Transformer
... _]II~
18. Transistor
...
-©
19. Rectifier ...
-{)f-
20. Zeimer diode ...
~
21. Silicon controlled rectifier. ..
~
BATTERY
CONSTRUCTION
Lead Seid Consists of
Positive Plate
Negative
Plate
Electrolyte
Separator
Container
Cover
Filling Plugs
Vent Plugs
Gang Piece
Terminals -
lntercell Poles
Exhaust Tube
-
Porous Mass of Lead
Dioxide {Pbo) as Positive
Active material.
- Porous Mass of Spongy
Lead (Pb)
as Negative
Active material
-
Dilute Sulphuric Acid
(H
2
S0
4
)
- Micro Porous, Acid ·
Resistant Electrical
insulator between Pos. &
Neg. Plates
- Polypropylene Casing to
house the Plate group &
electrolyte
- To .. seal the battery
container
- To facilitate filling of
electrolyte and water
topping up .
- To facilitate filling of
electrolyte/water topping
up
& venting the gases
-
To vent gases through
common manifold and
exhaust nozzle
-
To make connections to
the electrical loads.
- To connect the cells in
series internally.
-
To discharge the vent
gases .
Exhaust Seal Cap -
To protect the dry charged
plates from oxidation.
www.hitchcocksmotorcycles.com

Royal Enfield ELECTRA Specifications

General

Displacement	346 cc
Compression Ratio	8.5:1
Max Power	19.8 bhp @ 5250 rpm
Max Torque	28 Nm @ 4000 rpm
Fuel System	Carburetor
Transmission	5 Speed Constant Mesh
Front Suspension	Telescopic, 35mm forks, 130mm travel
Overall Length	2140 mm
Bore x Stroke	70 mm x 90 mm
Clutch	Wet multi-plate
Rear Suspension	Twin shock absorbers with 5-step adjustable preload, 80mm travel
Front Brake	280 mm Disc
Rear Brake	153 mm Drum
Fuel Tank Capacity	13.5 L
Reserve Fuel Capacity	2.5 litres
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
