Royal Enfield ELECTRA User Manual

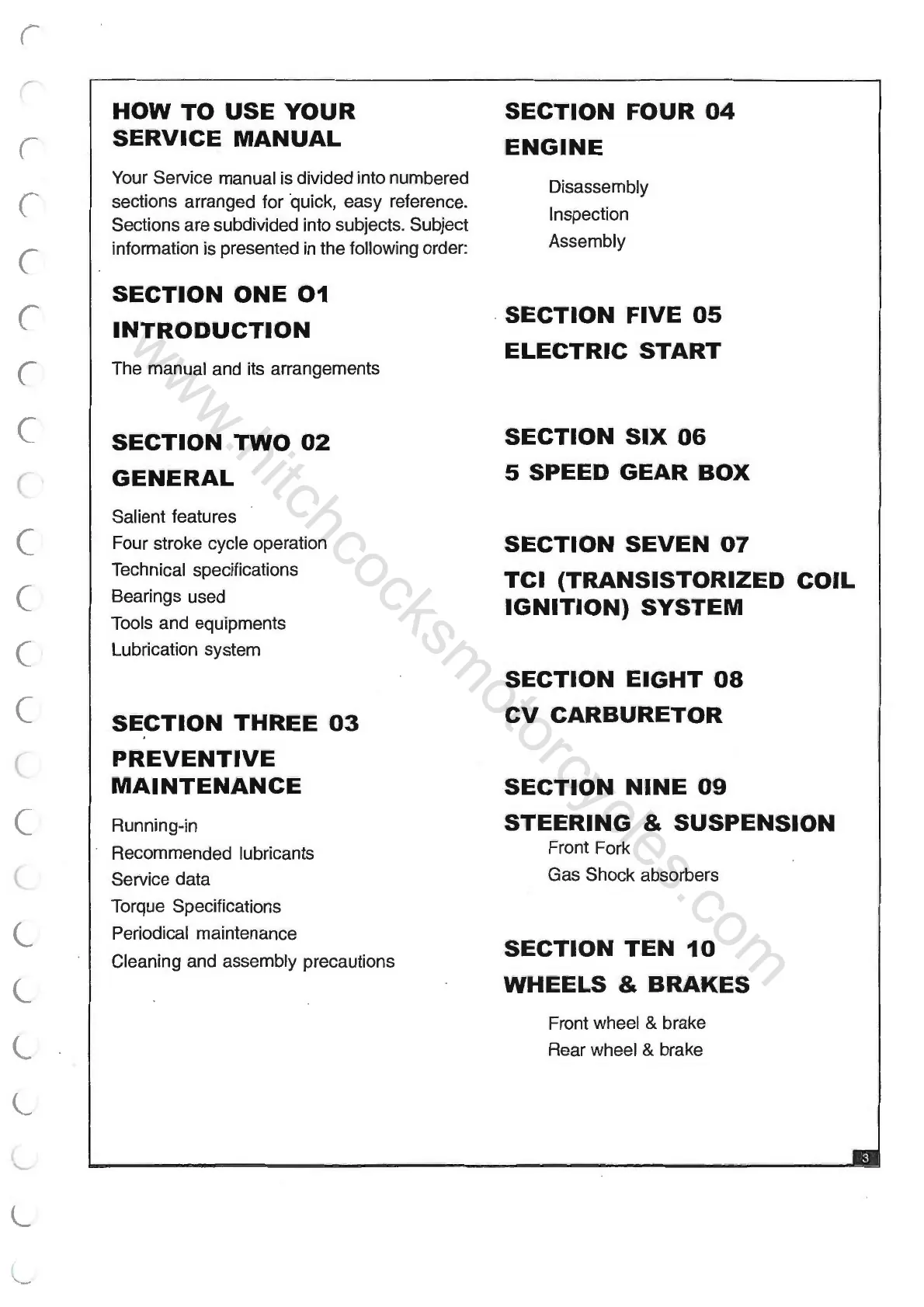

HOW TO USE YOUR SECTION FOUR 04
r
SERVICE MANUAL
ENGINE
Your Service manual is divided into numbered
Disassembly
r
sections arranged for quick, easy reference.
Sections are subdivided into subjects. Subject
Inspection
(
information is presented in the following order:
Assembly
SECTION ONE 01
(
INTRODUCTION
SECTION FIVE 05
ELECTRIC START
(
The manual and its arrangements
(
SECTION TWO 02
SECTION SIX 06
(·
GENERAL
5 SPEED GEAR BOX
Salient features
(
Four stroke cycle operation
SECTION SEVEN 07
Technical specifications
TCI (TRANSISTORIZED COIL
C
Bearings used
IGNITION) SYSTEM
Tools and equipments
(
Lubrication system
SECTION EIGHT 08
(
SECTION THREE 03
CV CARBURETOR
(
PREVENTIVE
MAINTENANCE
SECTION NINE 09
(
Running-in
STEERING & SUSPENSION
Recommended lubricants
Front Fork
(_
Service data
Gas Shock absorbers
Torque Specifications
(_
Periodical maintenance
Cleaning and assembly precautions
SECTION TEN 10
l
WHEELS & BRAKES
Front wheel & brake
(_
Rear wheel & brake
l
www.hitchcocksmotorcycles.com

Royal Enfield ELECTRA Specifications

General

Displacement	346 cc
Compression Ratio	8.5:1
Max Power	19.8 bhp @ 5250 rpm
Max Torque	28 Nm @ 4000 rpm
Fuel System	Carburetor
Transmission	5 Speed Constant Mesh
Front Suspension	Telescopic, 35mm forks, 130mm travel
Overall Length	2140 mm
Bore x Stroke	70 mm x 90 mm
Clutch	Wet multi-plate
Rear Suspension	Twin shock absorbers with 5-step adjustable preload, 80mm travel
Front Brake	280 mm Disc
Rear Brake	153 mm Drum
Fuel Tank Capacity	13.5 L
Reserve Fuel Capacity	2.5 litres
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
