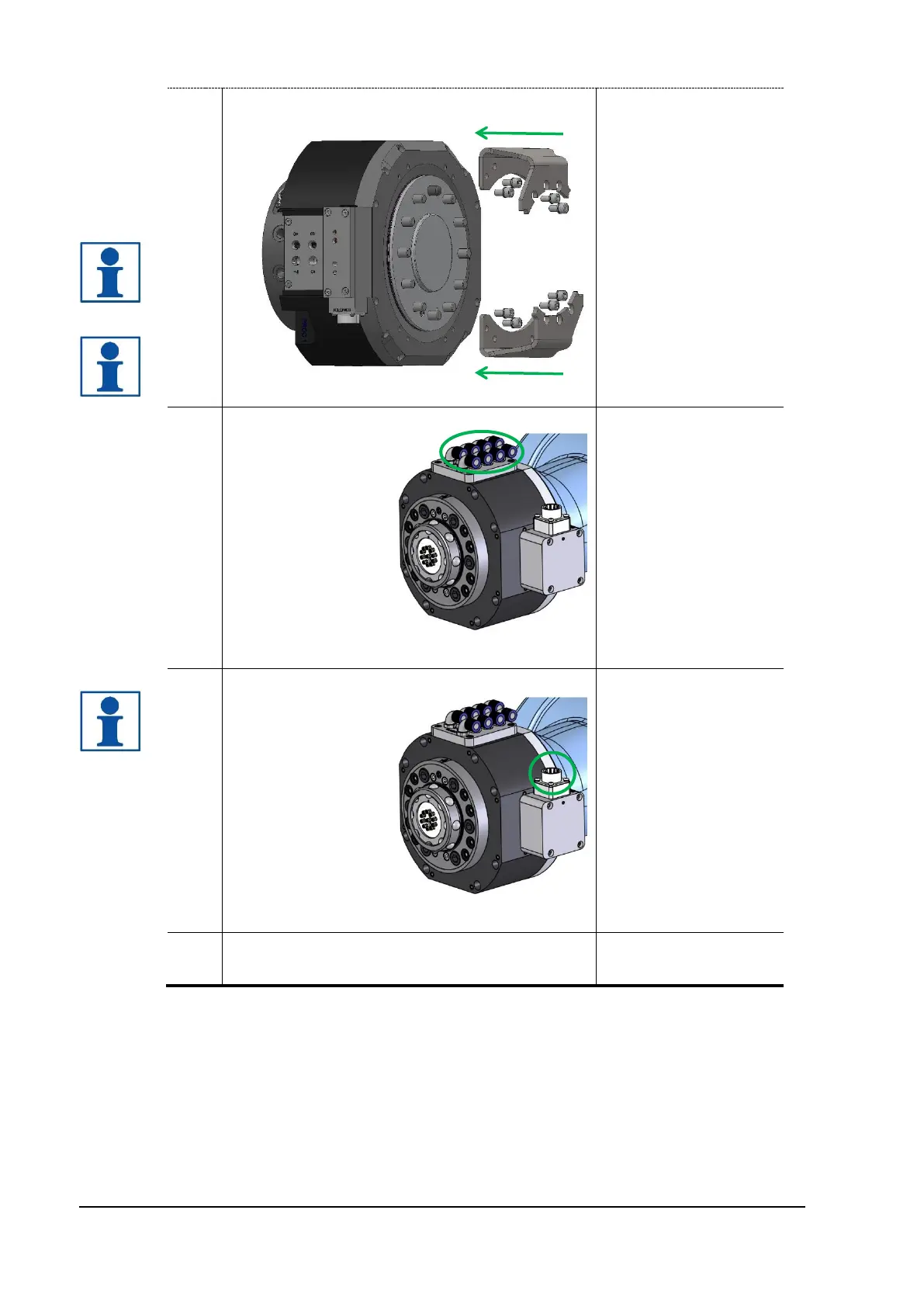

Mount rotation stops (STC250 and STC350)
Mount the rotation
stops with enclosed
screws and nuts. The
tightening torque for
STC250 and STC350 is
10 Nm.
NOTE! Design and
mounting methods are
dependent on STC and
robot models.
NOTE! Mounting
instructions are
included in in the
adaptation kits.
11
Connect air
Mount air hoses using
hose fittings.
Pneumatic diagrams
are found in the
Product Description of
respective unit.
12
Connect signals (electrical versions only)
Connect electrical
connectors in
accordance with
selected unit.
Circuit diagrams are
found in the Product
Description of
respective unit.
13
Power on
Unlock the circuit breaker
and switch the power on.
