RSP STC20 - Specification of Maintenance Activities; Visual Inspection of Swivel Tool Changer

16 M0412-1 ver 3.0
3.4 Specification of maintenance activities
3.4.1 Visual inspection of swivel tool changer
The following maintenance activities should be carried out on the STC every 2
nd
week.
Action
Note

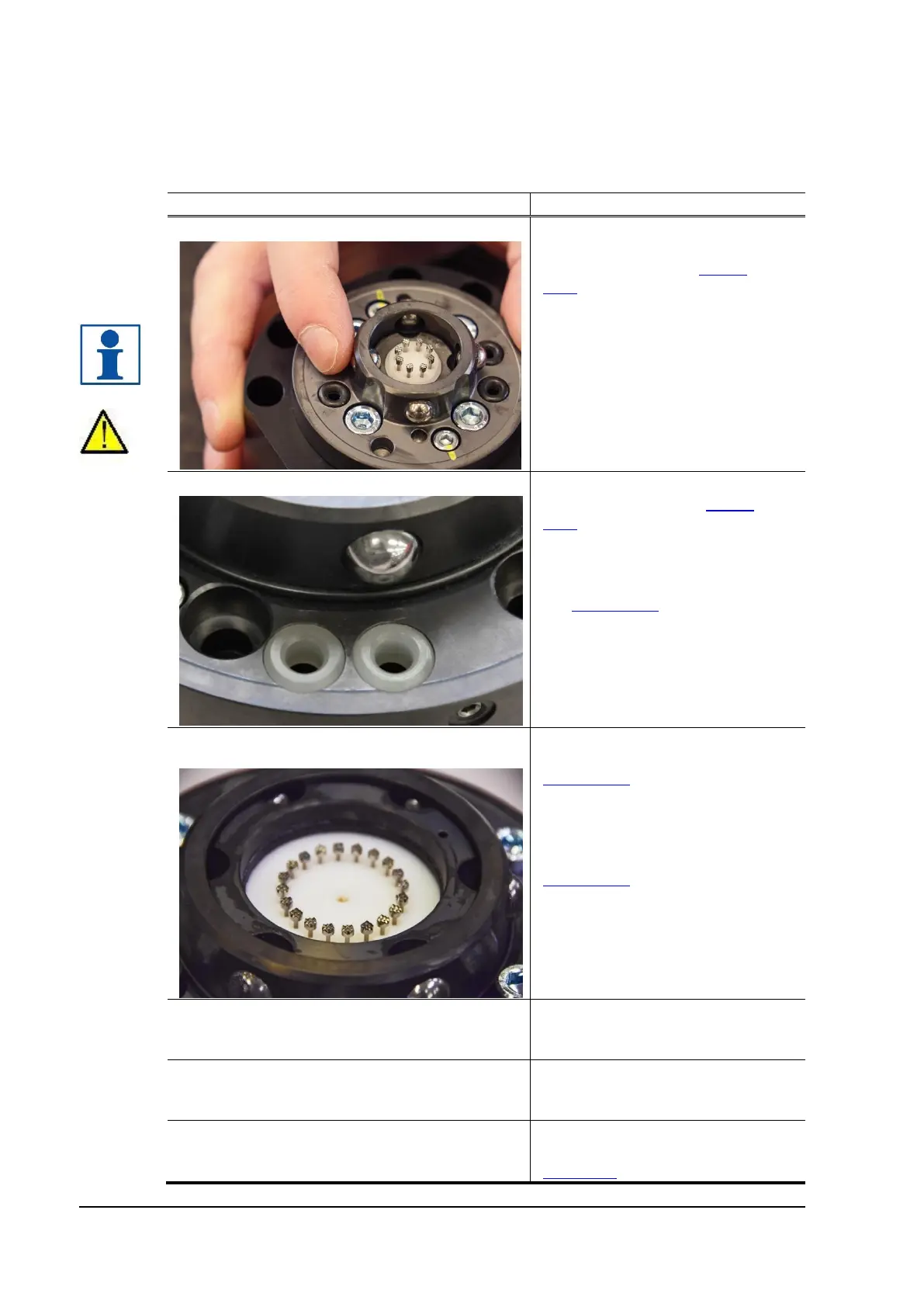

Check locking balls
Check each ball to make sure it
moves freely. For cleaning and
lubrication of balls see section
3.4.3.
NOTE! If balls get stuck there is a
risk that the tool attachment jams.
WARNING! Risk of getting
squeezed between piston and ball
holder when the piston is taking
closed position
Check air sealings
Check that the air sealings are
clean. For cleaning see section
3.4.3.
Check that the air sealings are not
damaged. For making replacements
see section 4.3.1.
Check spring-loaded signal pins (electrical
versions only)
Check that the spring-loaded signal
pins are clean. For cleaning see
section 3.4.3.
Check that the spring-loaded signal
pins are not worn-out or damaged.
For making replacements see
section 4.3.2.
Check cables and hoses
Check cables and hoses for
damages and squeezing, replace if
damaged.
Check rotation stops
Check that the rotation stops are
not worn-out or damaged, replace if
damaged.
Check swivel tool changer in general
Check the swivel tool changer for
damages. For replacement see
section 4.1.
