RSP STC20 - Replacement of Tool Attachment

22 M0412-1 ver 3.0
4.2 Replacement of tool attachment
Action
Note

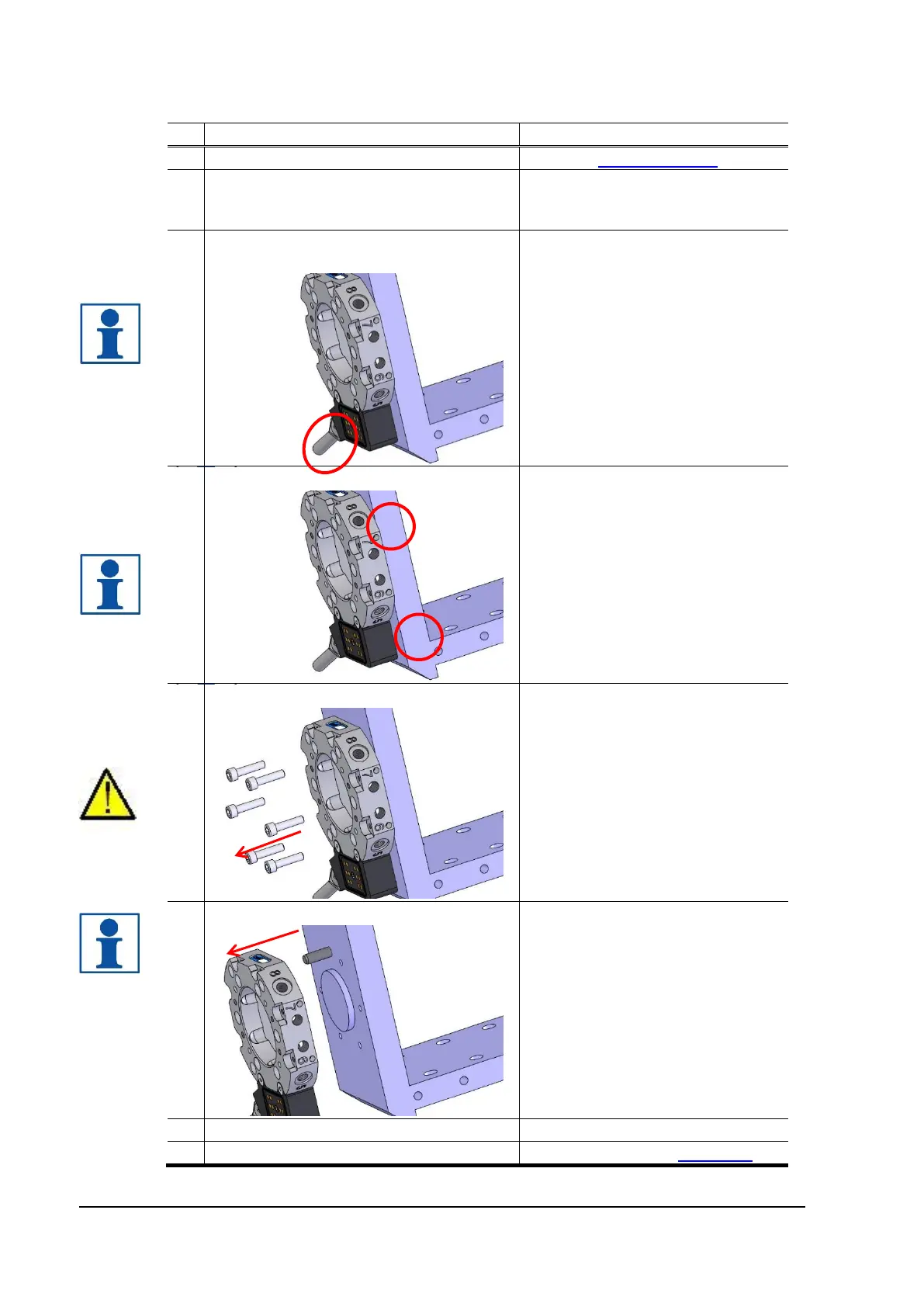

1
Safety
Read the safety section 1.2.
2
Undock tool
Undock tool attachment, with tool
mounted, in a safe and fully
supported position for dismounting.
3
Release connections (electrical
versions only)
Disconnect electric power and
signals.
NOTE! Handle contacts with care,
as they are sensitive to mechanical
damage. Make sure that no dirt
enters the contacts.
4
Dismount hoses
Dismount the air hoses from the
tool attachment.
NOTE! Make sure that no dirt
enters the air hoses.
5
Remove screws
Remove the screws holding the
tool attachment to the tool.
WARNING! The tool attachment is
heavy and may cause personal
injury and equipment damage if
dropped.
6
Dismount tool attachment
NOTE! A guide pin is mounted
between the tool attachment and
the tool.
7
Clean the flange at the tool
8
Mount tool attachment
Follow instructions in section 2.2.
