Publication date: Jan, 2009
Revision A1
136
Function name:
Egress Bandwidth Setting
Function description:
Egress Bandwidth Setting function is used to set up the limit of Egress
bandwidth for each port.

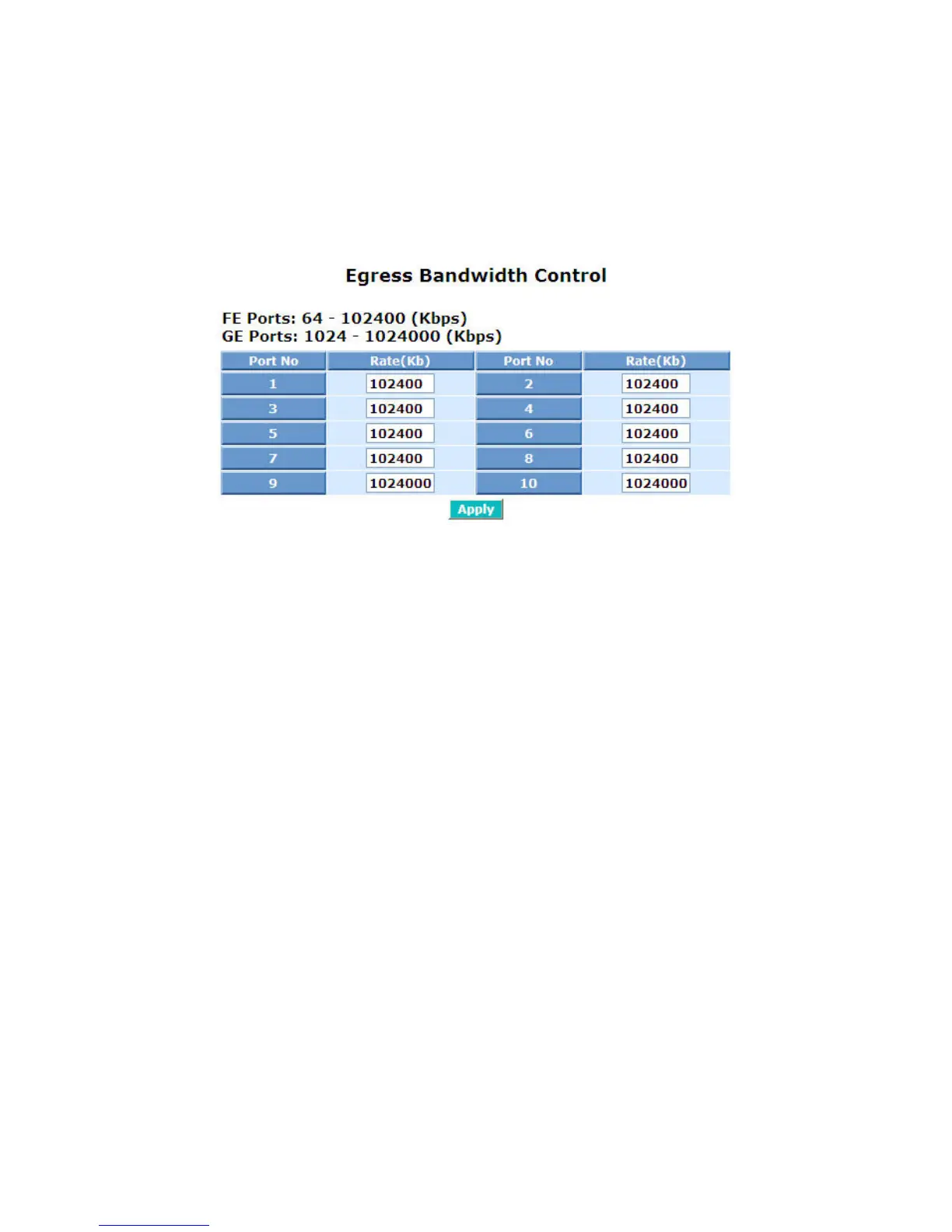

Fig. 3-82
Parameter description:
Port No.:
Choose the port that you would like this function to work on it. Valid
range of the port is 1~10.
Rate:
Set up the limit of Egress bandwidth for the port you choose. Packet
transmission will be delayed if the rate exceeds the value you set up in
Data Rate field. Traffic may be lost if egress buffers run full. The format
of the packet limits to unicast, broadcast and multicast. Valid value of
Port 1~8 ranges from 66~102400, and Port 9~10 ranges from
66~1024000 with the minimum unit of 1. Default value of Port 1~8 is
102400 and Port 9~10 is 1024000.
