Ruby Tech ES-2410C User Manual

Publication date: Jan., 2009 147
Revision A1

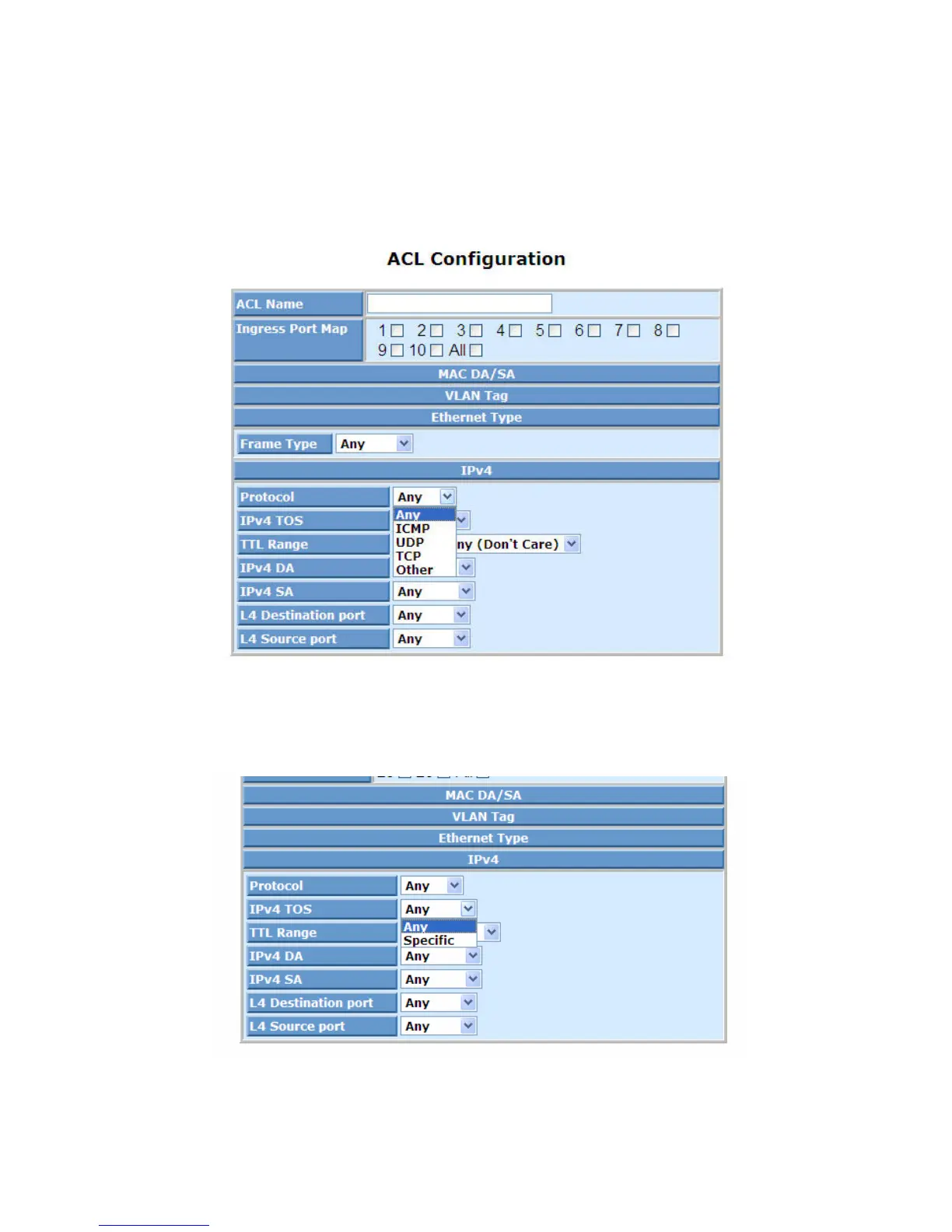

IPv4:
To set the IPv4 packet filter function with ACLs, the parameters
shown as below:
Protocol :
To droll the bar and you can elect “ Any”, “ICMP”, “ UDP”, “TCP”
and “Other”
Fig. 3-93
IPv4 TOS :
To droll the bar and you can elect “ Any”, and “ Specific”. If you
click “ Specific” then you need to set the TOS Value to filter.
Fig. 3-94
