Publication date: Jan, 2009
Revision A1
86

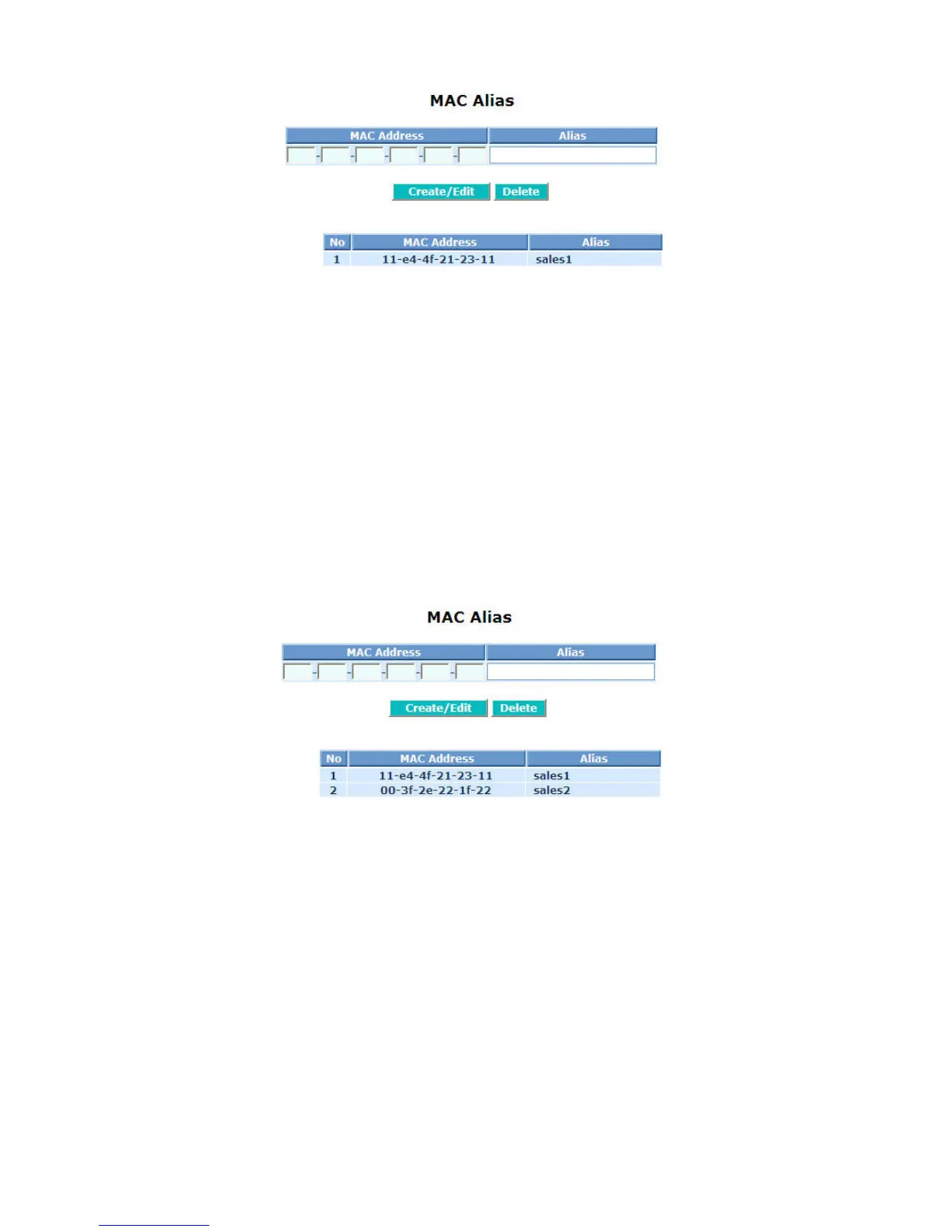

Fig. 3-41
Function name:
MAC Alias Create/Edit or Delete
Function description:
In the MAC Alias function, MAC Alias Add/Edit function is used to let you add
or modify an association between MAC address and a plain English name.
User can click <Create/Edit> button to add a new record with name.
As to MAC Alias Delete function is used to let you remove an alias name to a
MAC address. You can select an existed MAC address or alias name to
remove.
Fig. 3-42
Parameter description:
MAC Address:
It is a six-byte long Ethernet hardware address and usually expressed by
hex and separated by hyphens. For example,
00 – 40 - C7 - D6 – 00 - 02
Alias:
MAC alias name you assign.
Note: If there are too many MAC addresses learned in the table, we
recommend you inputting the MAC address and alias name directly.
