Publication date: Jan., 2009 87
Revision A1
Function name:
Port Security
Function description:
In its most basic form, the Port Security feature remembers the Ethernet MAC
address connected to the switch port and allows only that MAC address to
communicate on that port. If any other MAC address tries to communicate
through the port, port security will disable the port.

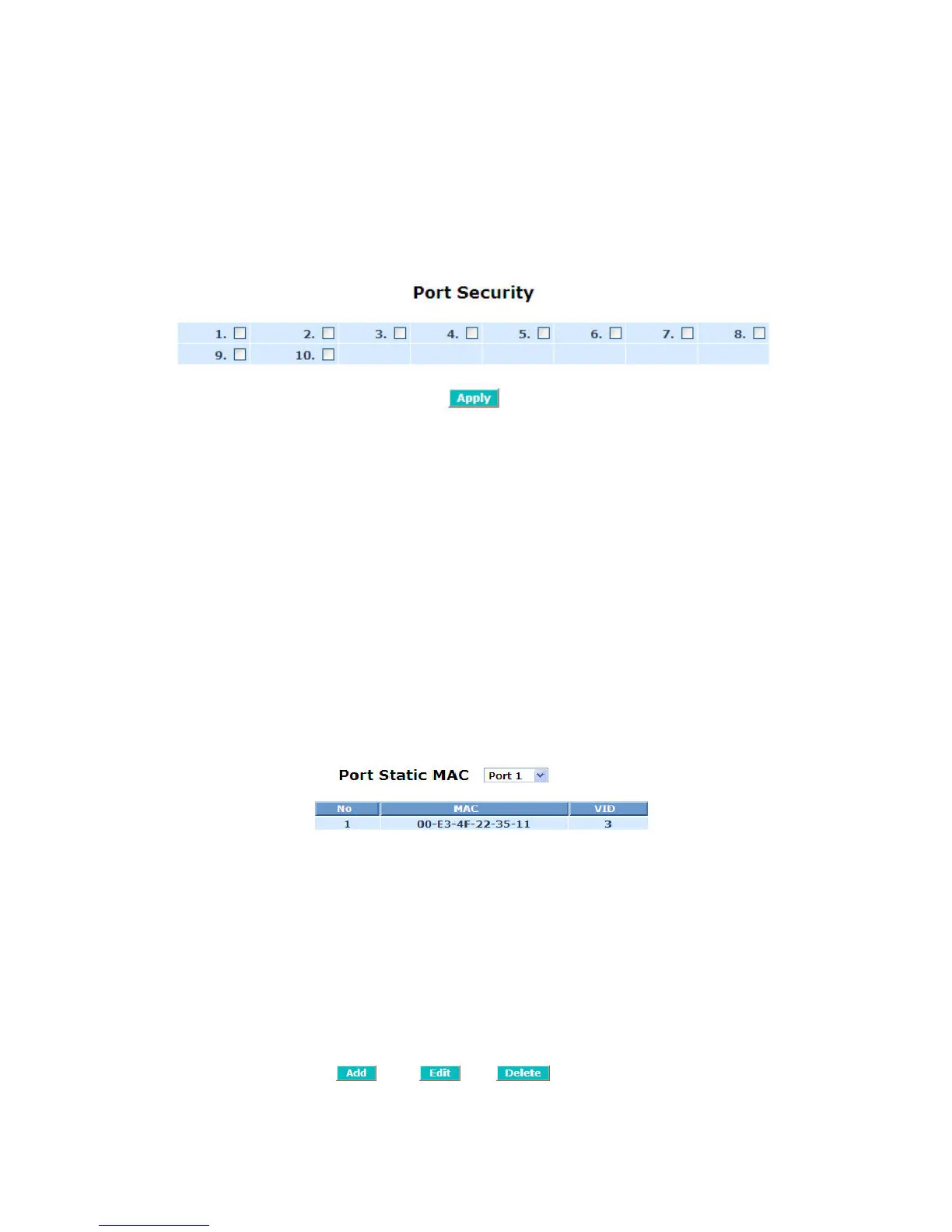

Fig. 3-42
Parameter description:
You can select which port to enable the port security. When you enable the
port security then the switch port only forwarding the static MAC what you set
at Static MAC packet or traffic. Others will drop or deny forwarding. The port
number is 1 to 10.
Function name:
Port Static MAC
Function description:
The function of Static is used to configure MAC’s real manners inside of the
switch per port .
Fig. 3-43
