3. Installation
RuggedCom® RuggedBackbone™ 15 RX5000 Installation Guide Rev 107
3.1.1.1. Rack Front Mounting
Assemble the rack mount brackets to the main chassis using six (6) #10-32 × 3/8" flat head steel
screws (supplied) on each side. Screws are to be torqued to 18±1 in-lb. The brackets can be mounted
either as shown above, or extended by 1".

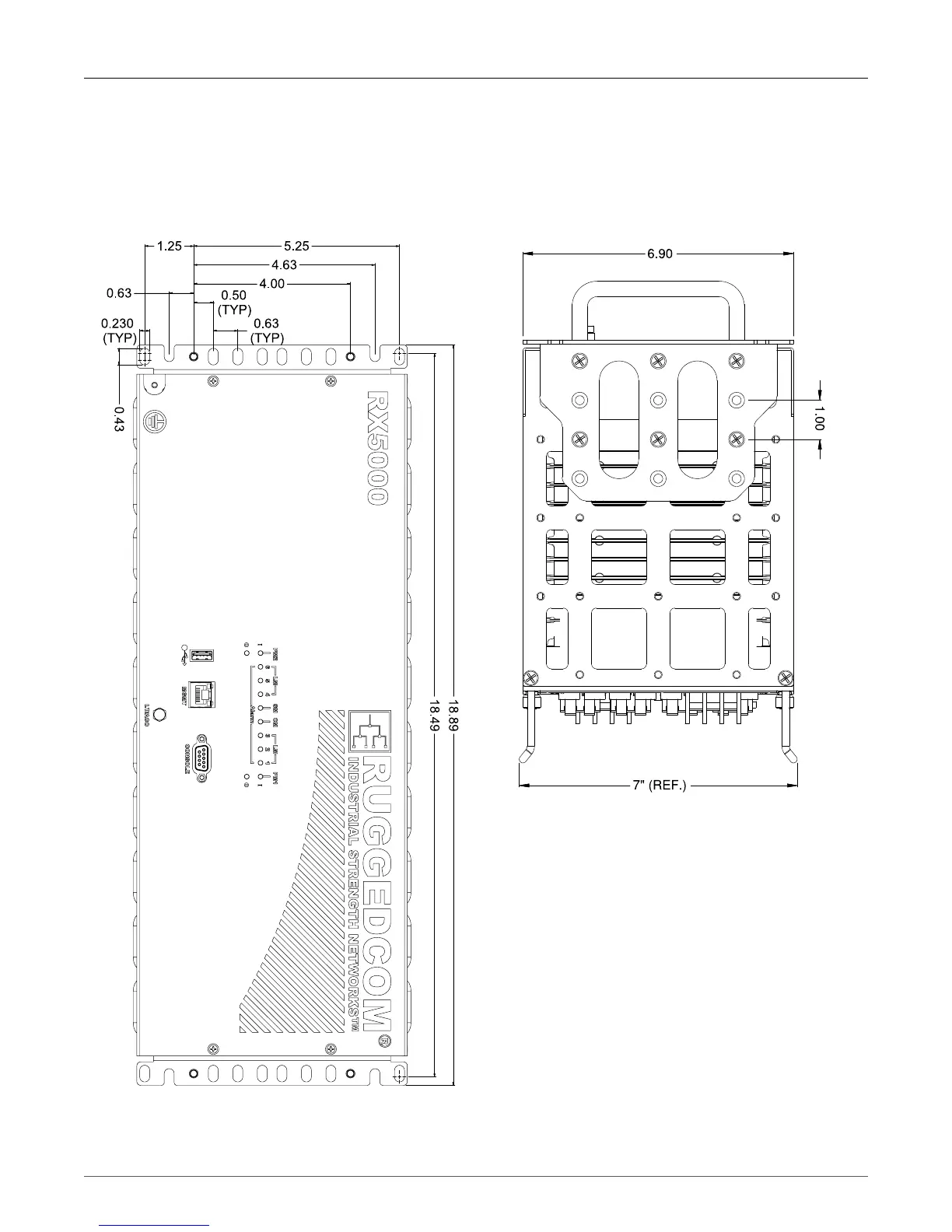

Figure 3.2. Rack Front Mount - Front View
Figure 3.3. Rack Front Mount - Side View
