3. Installation
RuggedCom® RuggedBackbone™ 21 RX5000 Installation Guide Rev 107
3.1.2. Panel Mounting

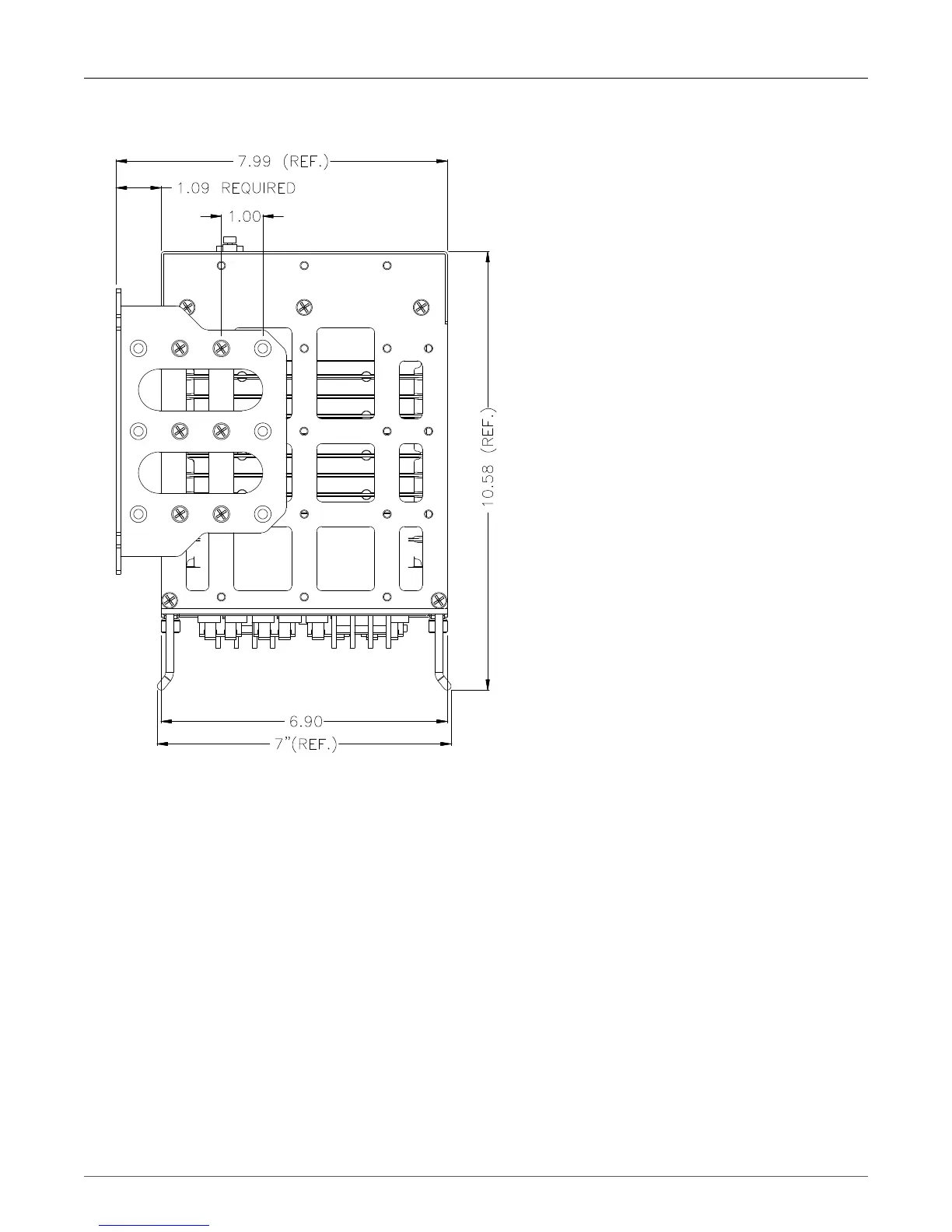

Figure 3.11. Panel Mount - Side View
The RX5000 can be fastened to panel mount brackets in one of the two positions shown above.
Assemble the panel mount brackets to the main chassis using six (6) #10-32 × 3/8" flat head steel
screws (supplied) on each side. Screws are to be torqued to 18±1 in-lb.
