2. RuggedBackbone™ Modules
RuggedCom® RuggedBackbone™ 9 RX5000 Installation Guide Rev 107
2. RuggedBackbone™ Modules
The RX5000 chassis features ten slots, each designed to accommodate a particular module.

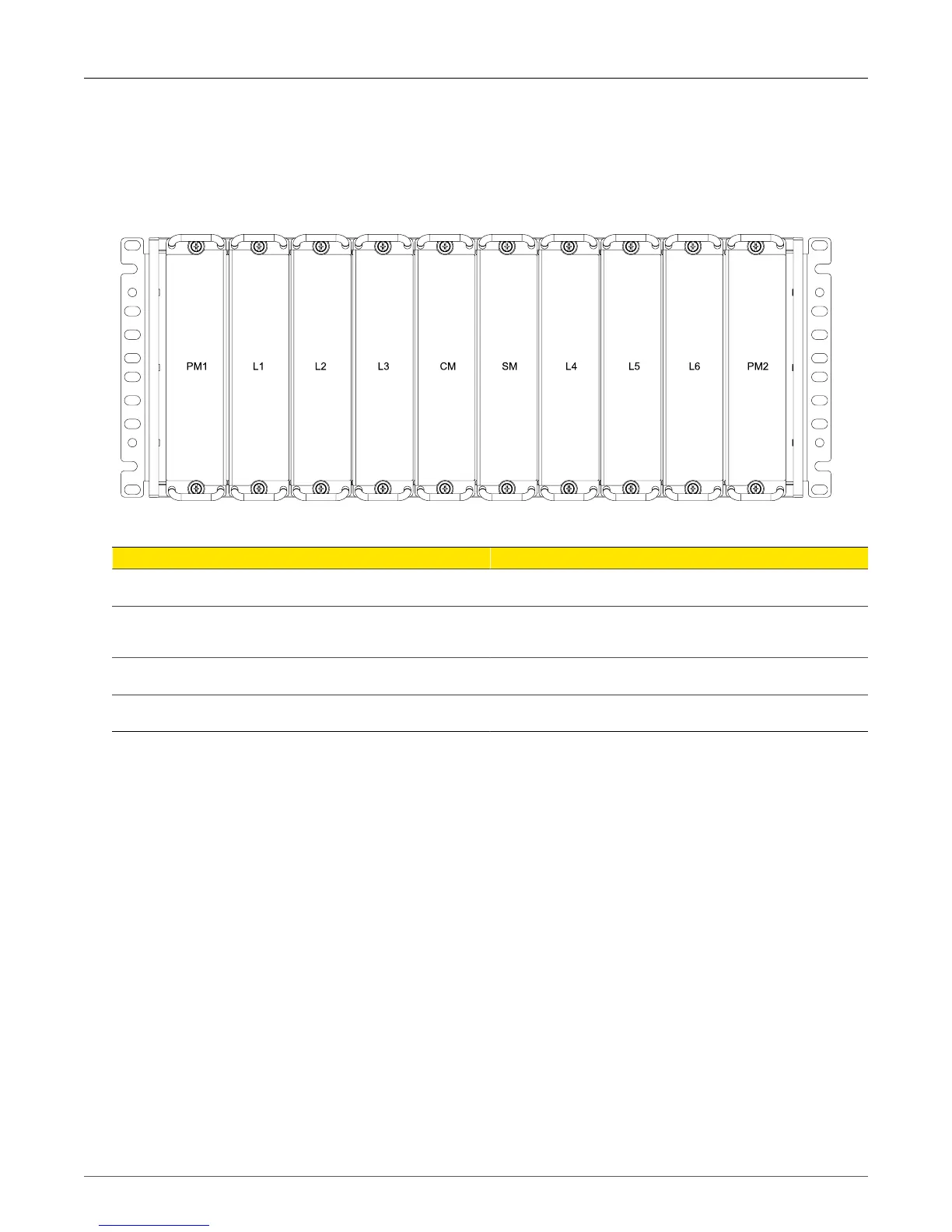

Figure 2.1, “Chassis Slot Assignment” shows the front panel view of the RX5000. The slot name at
each position indicates the type of module that can be installed at that position in the chassis.
Figure 2.1. Chassis Slot Assignment
Slot Type Description
CM
The Control Module is the central processing unit for
the RX5000 system. See Section 2.2, “Control Module”.
SM
The Switch Module contains the chassis-wide Ethernet
switch fabric that interconnects Ethernet ports on all
installed line modules. See Section 2.3, “Switch Module”.
L1 through L6
One to six Line Modules can be installed in
the RX5000. See Section 2.4, “Line Modules”.
PM1, PM2
Dual, redundant, power supply modules can be installed
in the RX5000. See Section 2.5, “Power Module”.
Table 2.1. RX5000 Chassis Slots
All supported modules are built to the RuggedRated™ specifications of the RuggedBackbone™
RX5000.
2.1. Installing A Module In The Chassis
To install a module in the the RuggedBackbone™ chassis, align the module guide ribs with the
channels on the chassis and push the module in as far as it will go. There is a detent position that must
be pushed through to properly seat the connectors; this is the added resistance from the grounding
springs. When properly seated, the module flange will rest on the main chassis frame. Tighten the
thumbscrews using finger strength only.
