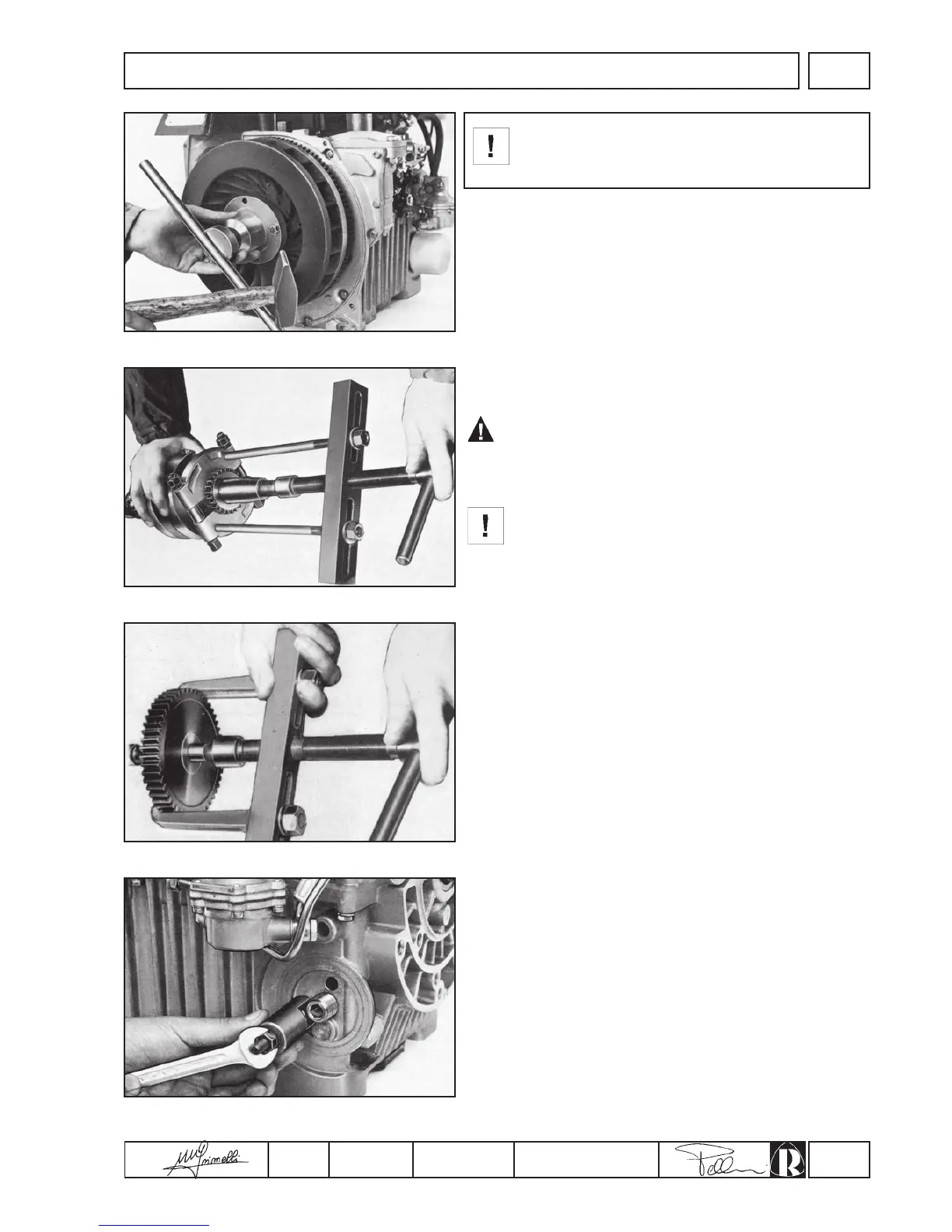

DISASSEMBLY OF THE ENGINE
During repair operations, when using compressed air,
wear eye protection.
Flywheel extraction
Use extractor cod. 00365R0020, as shown in figure 1.
During the demounting phases, pay particular attention to
prevent the flywheel from dropping as this could seriously
injure the operator.
Wear protective goggles when removing the flywheel ring.
IMPORTANT: Do not tap the end of the extractor when
removing the flywheel.
Crankshaft gear extraction
Use extractor cod. 00365R0010 and cod. 00365R0100 (fig. 2).
Camshaft gear extraction
Use extractor cod. 00365R0010 (fig. 3).
Oil pressure register valve extraction
Use extractor cod. 00365R0880 (fig. 4).
DISASSEMBLY AND REASSEMBLY
Besides disassembly and reassembly operations this chapter also
includes checking and setting specifications, dimensions, repair
and operating instructions. Always use original RUGGERINI spare
parts for repair operations.
