ENGINE ASSEMBLY

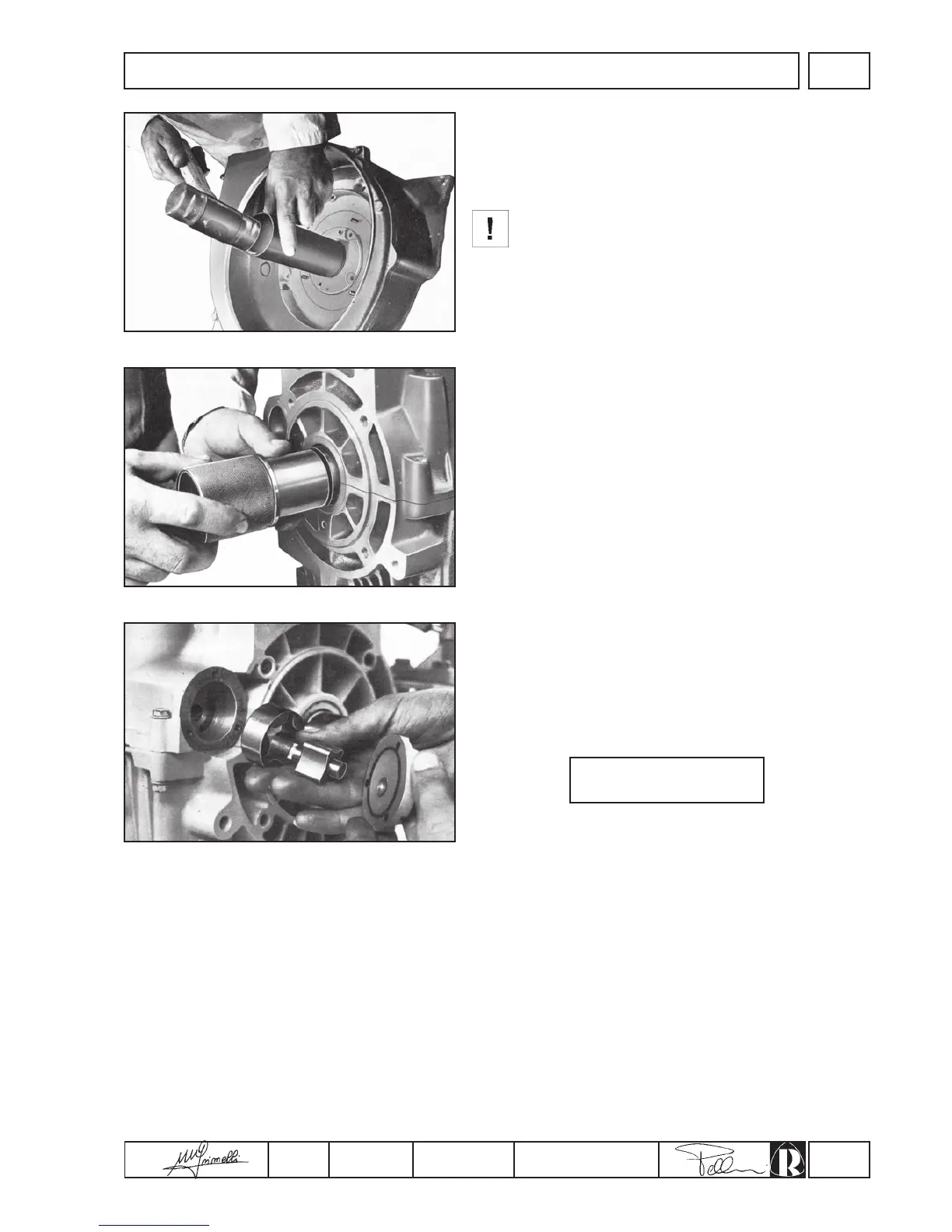

Fitting of oil seal rings
To introduce oil seal ring, flywheel side, use an ordinary cylindrical
plug of appropriate size as shown in fig. 61.
Final insertion of the oil seal ring, drive side, requires the use of
special tool code 00365R0040 (fig. 62).
Oil pump assembly
For rotor checks see page 25.
After tightening crankcase, mount oil pump external rotor with the
notch facing inwards (fig. 63).
Make sure the O-Ring on the oil pump cover is in perfect condition.
Tighten screws gradually to a pressure of:
A warped oil retainer may allow the introduction of air into
the engine thus causing crankcase ventilation problems.
Use genuine oil retainers with the RUGGERINI.
The oil seal rings are to be fitted with the arrow pointing in
the same direction of the crankshaft rotation.
