31
COMPILER TECO/ATI ENDORSEDDATE
01.08.2003
REG. CODE
1-5302-620
MODEL N°
50902
DATE OF ISSUE
08-03
REVISION 00
XII
48
RD210 RD 211
RD270 RD278
ELECTRICAL EQUIPMENT

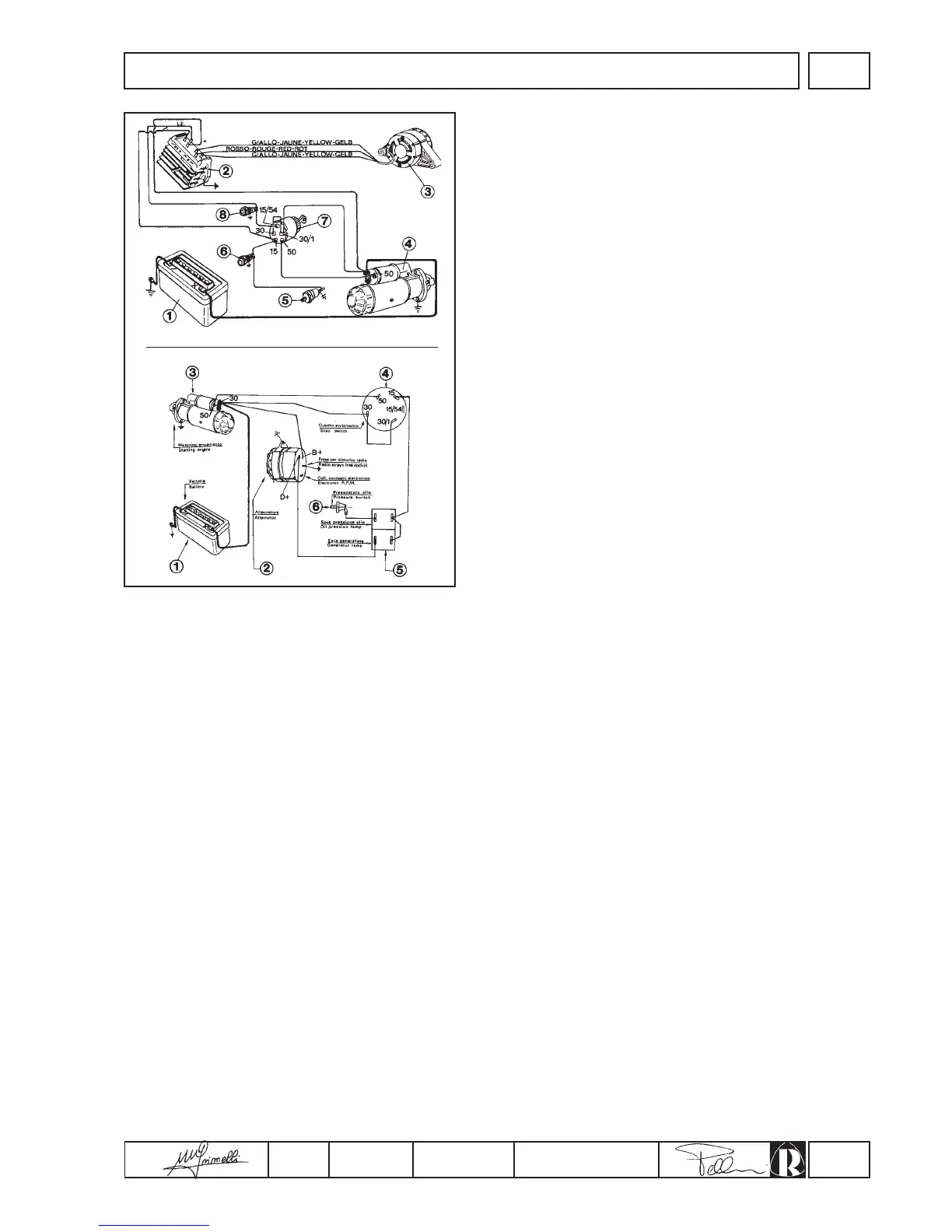

Diagram of electric starting wiring system with flywheel alternator
(fig. 47).
1.Battery - 2.Regulator - 3.Alternator - 4.Starter motor - 5.Pressure
gauge - 6.Oil pressure warning light - 7.Starter key - 8.Battery
charging light.
Diagram of electric starting wiring system with external alternator
(fig. 48).
Alternator 12V/200W:
1.Battery - 2.Regulator - 3.Alternator - 4.Starter motor - 5.Pressure
gauge - 6.Oil pressure warning light - 7.Starter key - 8.Battery
charging light.
Alternator 12V/400W:
1.Battery - 2.Alternator - 3.Starter motor - 4.Starter key - 5.Oil
pressure light and battery charging warning light - 6.Pressure
gauge.
