Hardware Installation and Reference Guide Installing the Access Point
14

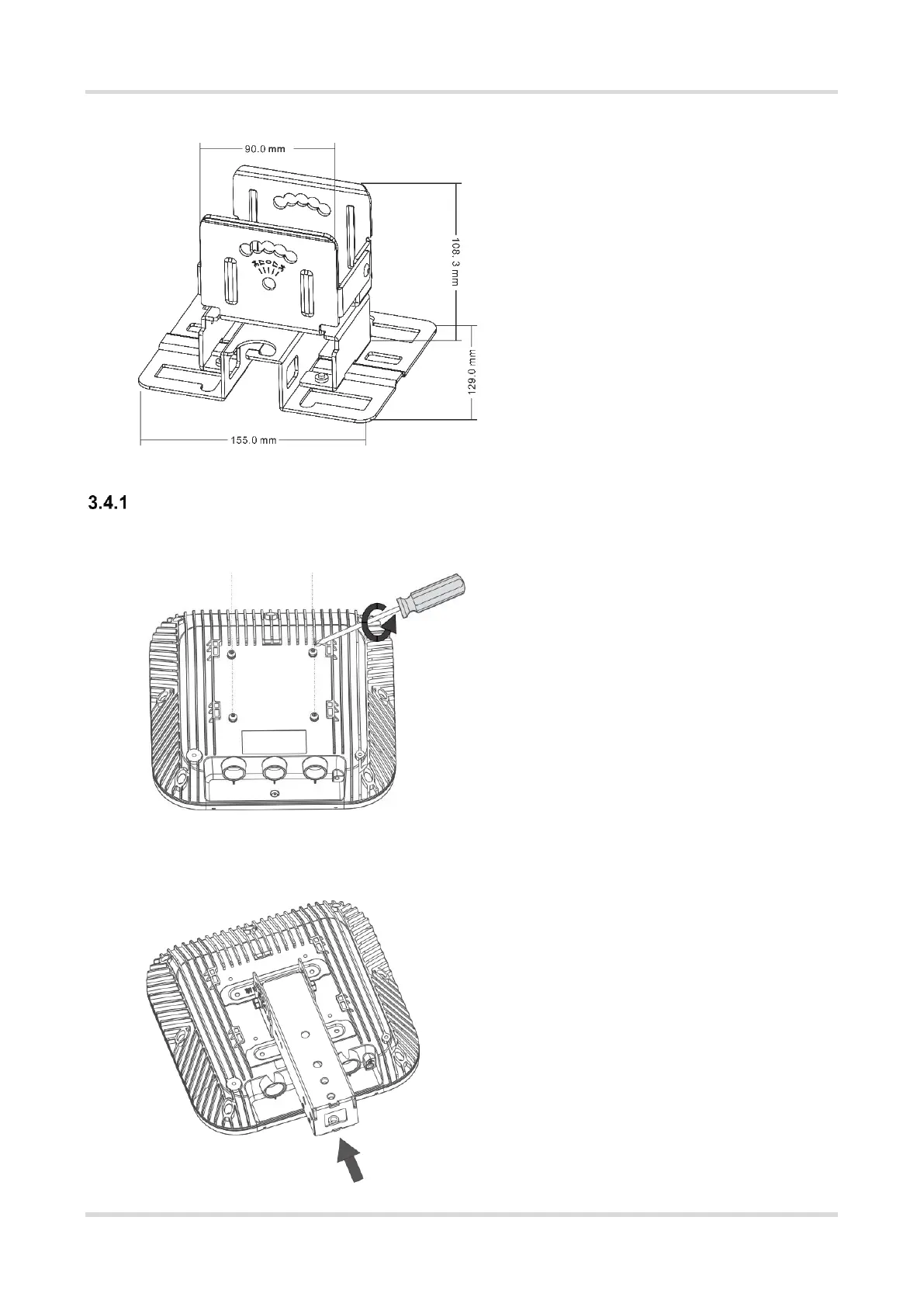

Figure 3-2 Dimensions of Mounting Plate Assembly
Installing the Mounting Arm
(1) Unfasten the four screws on the bottom and keep them handy.
(2) Wedge the mounting arm into the slot in the orientation noted by the arrow.
