Hardware Installation and Reference Guide Installing the Access Point
18

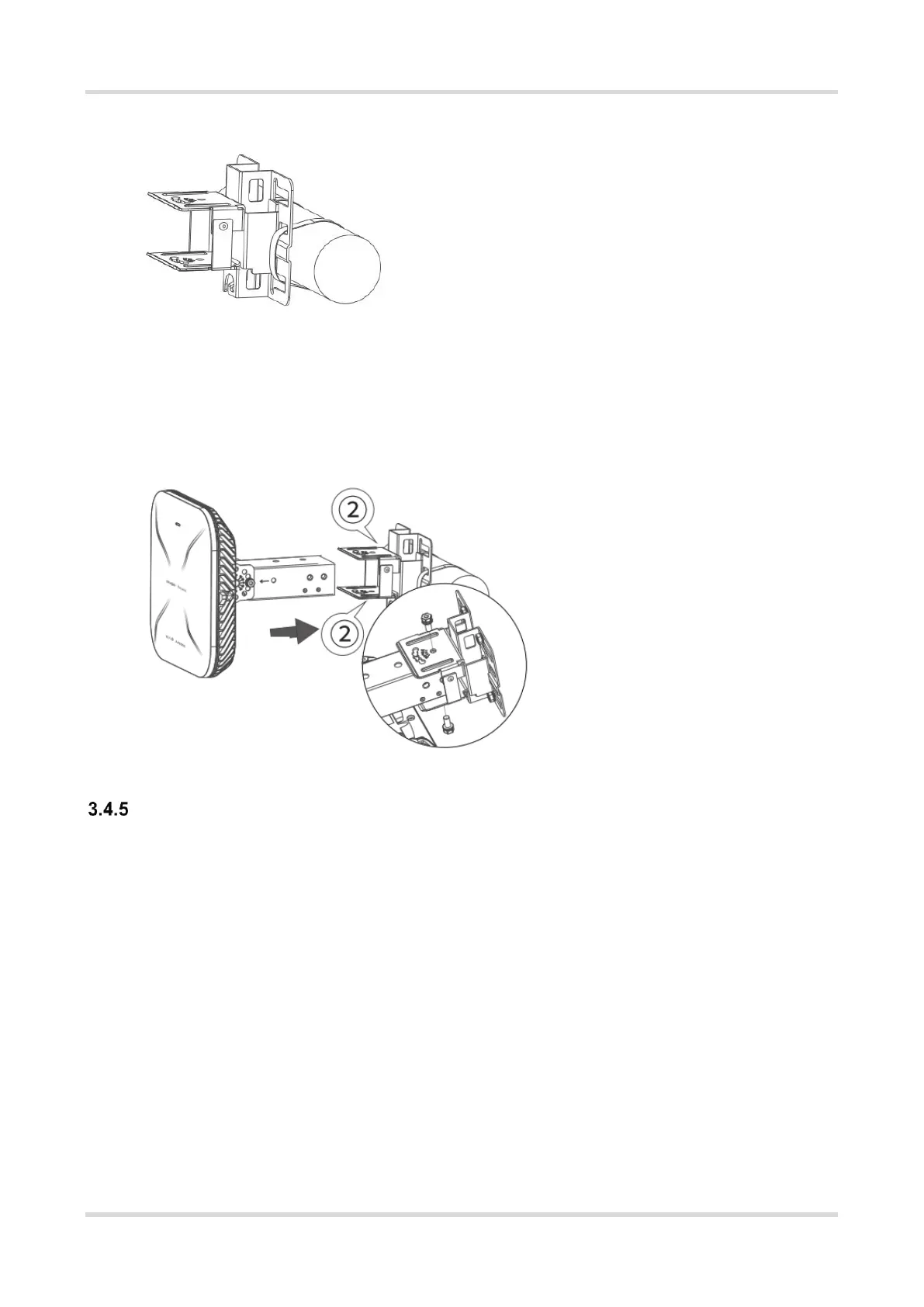

Figure 3-8 Securing Mounting Plate on Horizontal Pole
(2) Secure the access point with the mounting arm to the mounting plate assembly. Drive M8 x 20 mm screws
into the holes noted by ②.
Figure 3-9 Mounting Access Point
Adjusting Orientation
To adapt to more scenarios, you can adjust the access point’s orientation. You are advised to mount the access
point vertically. The orientation is adjustable.
Adjusting side-tilt angles
The access point allows for left and right side-tilt angles of 0°, 17°, and 34°. After orienting the access point
to the desired angle, drive M8 x 20 mm screws into the holes noted by ③.
