Hardware Installation and Reference Guide Installing the Access Point
16

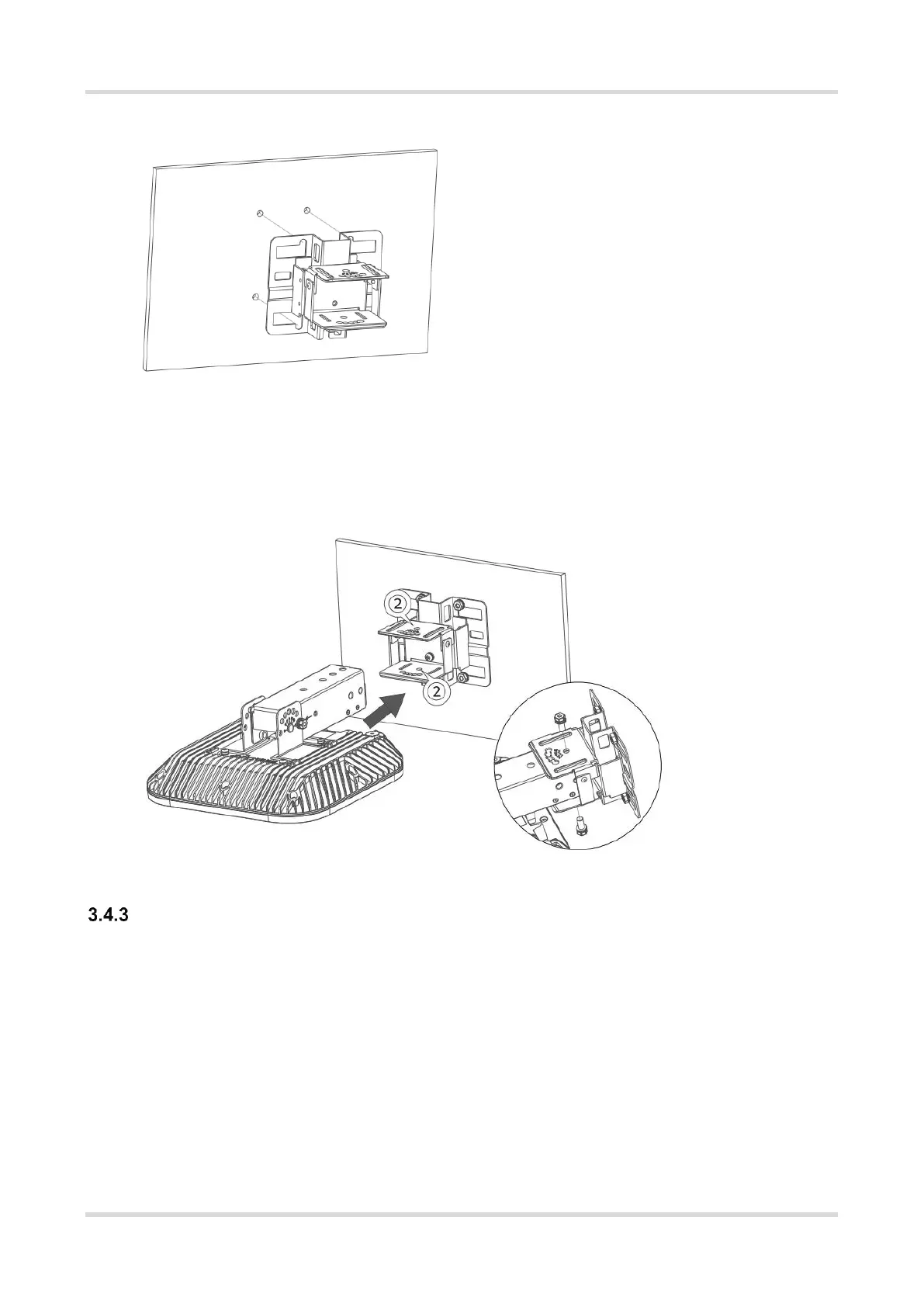

Figure 3-4 Securing Mounting Plate Assembly on Wall
(3) Secure the access point with the mounting arm to the mounting plate assembly. Drive M8 x 20 mm screws
into the holes noted by ②.
Figure 3-5 Mounting Access Point
Vertical Pole Mounting
(1) Attach the mounting plate assembly to a vertical pole with its semicircle opening facing downward. Secure
the mounting plate assembly by threading two hose clamps through the square holes on the mounting plate.
