6.2.5.1 SPLIT SETUP
Touch Screen Instructions:

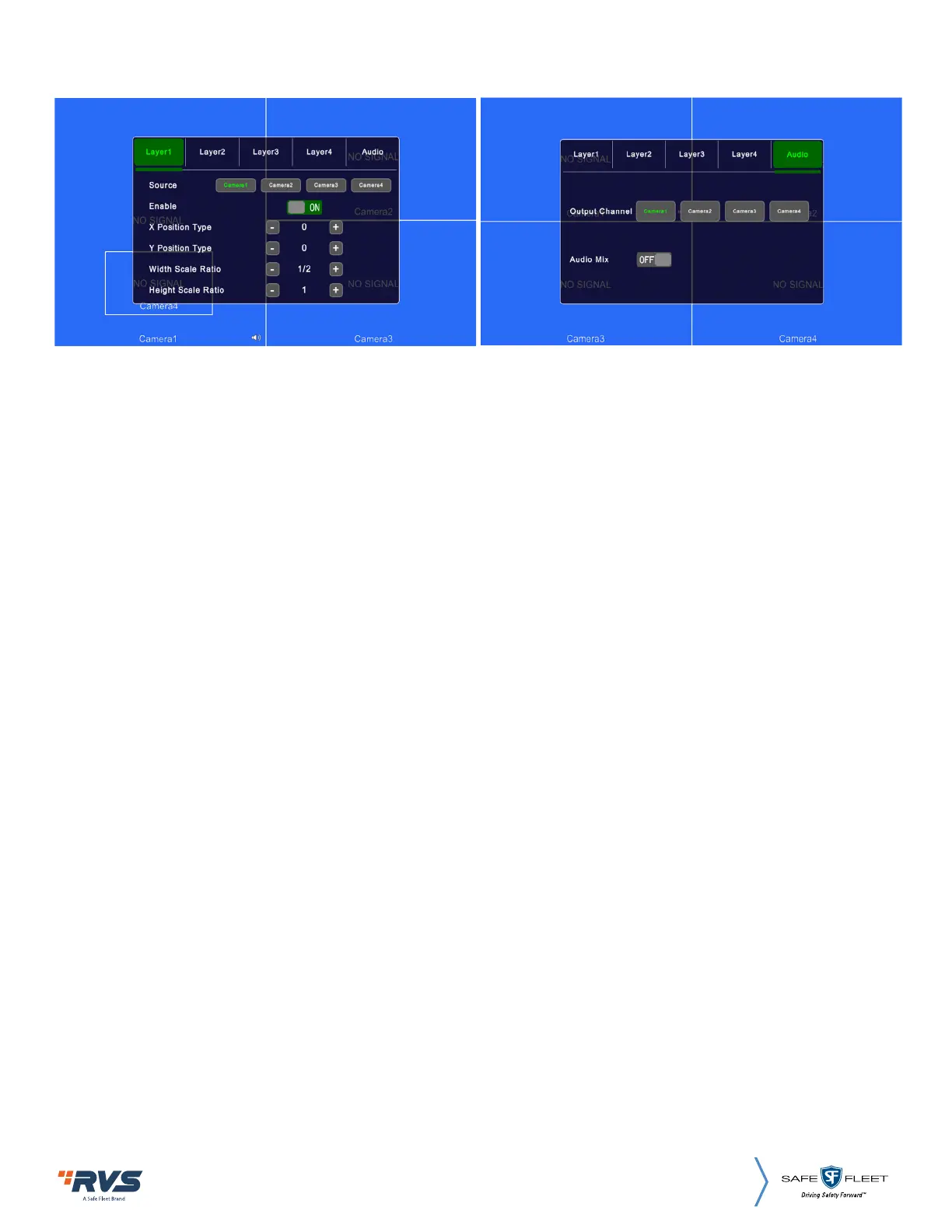

Click Layer 1-4/Audio icon to switch the page.
When setting up Layer 1-4: click the bottom setting to adjust the position and size of the screen
display or whether to turn on this layer.
Set Audio mix status in Audio menu setting. Turn on/o the audio mix mode and select audio output
channels. Multiple audio output channels can be selected when set ON. No audio output available
when none of these channels is selected.
Remote Instructions:
LANG: Switch system language.
UP / DOWN: Cursor switch.
SEL: Select the camera channel and audio output channel.
Features instructions:
Source: The camera channel being displayed of the layer.
Enable: If the layer is displayed.
The following features are only available when in PIP1/2/3 or SP view display mode. Specially, when in
SP view display mode, the setting uses scroll bars for high precision adjustment:
Width Scale Ratio: The horizontal down scale ratio of the layer.
Height Scale Ratio: The vertical down scale ratio of the layer.
X Position Type: The horizontal position of the layer.
Y Position Type: The vertical position of the layer.
Output Channel: Audio output channel.
Audio Mix: Audio mix switch.
