27
Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 sales@rearviewsafety.com
www.rearviewsafety.com

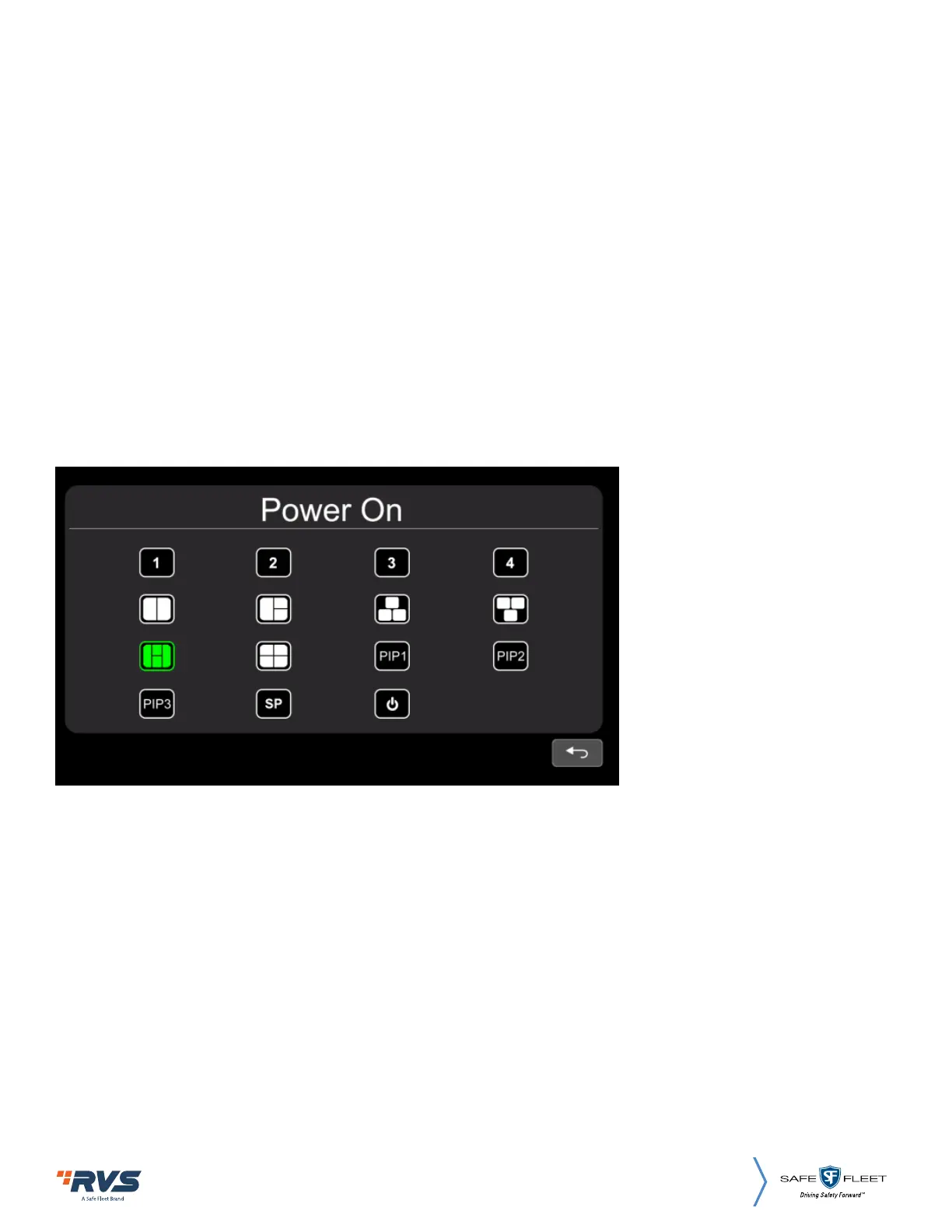

6.2.7.6 POWER ON
Touch Screen Instructions:
If the icon is not highlighted, touch to highlight it or to cancel its highlight status.
Other Instructions:
Highlighted icon is corresponding display image of monitor upon start up. Last icon once been
highlighted, monitor will enter screen o standby mode directly upon power on.
When no icon is green highlighted, it goes automatically to LAST mode, i.e. display image upon
power on will be the last image of monitor when it’s powered o last time.
If the standby icon is highlighted, monitor will display start up logo if any, then go to standby mode.
Feature Instructions:
Display: to set preferred display image when in auto scanning.
Delay: To set duration time of scanning image, ranging 0-60s. If delay of certain channel is set to 0,
then auto scan will skip to another channel whose delay is longer than 0 second. Operation of the
delay keypad is same as section 6.2.7.4.1 “Input panel.
Enable: Turn on/o auto scan function.
Other Instructions:
If parameters of “Display” or “Delay” are changed during auto scan, they will take eect on next
cycle. User can also validate parameters immediately by turning o and on again the auto scan
function. Auto scan can be interrupted by trigger function.
