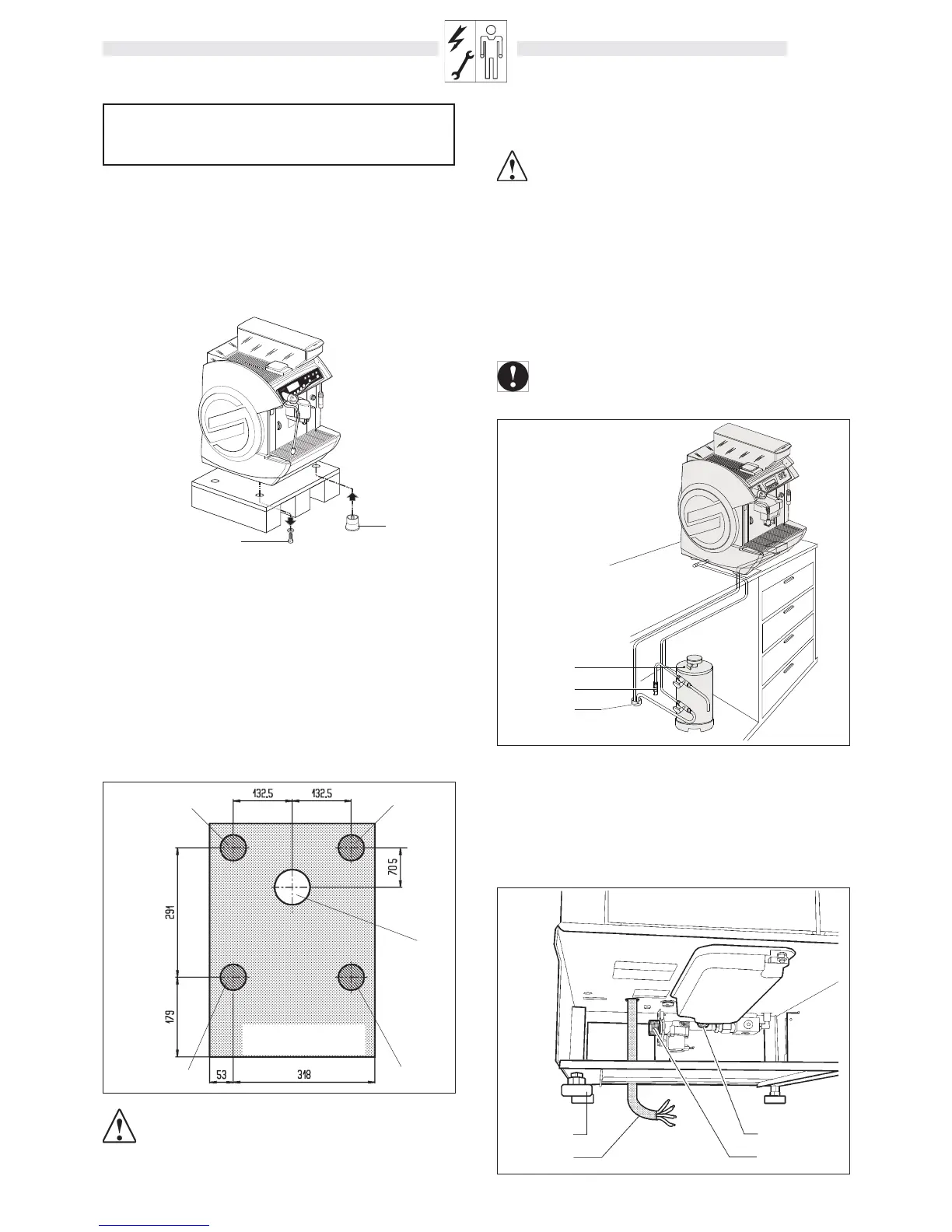

10 - INSTALLATION
10.1 Location notes
• The machine has to be installed in a dry and protected
place, at the following ambient temperature : 10° C -
40° C; maximum humidity: 90%.
Lift the pallet in a way that the fixing screws A can be re-
moved. Following screw on the four supporting feet B.
F. 6
C
D
E
F. 5
A
B
B
B
B
F. 7
G
F
H
I
10.3 Water connection
Warning! Water hardness should not be less than
8°F.
We recommend that the machine be supplied with water
treated by a descaling device, particularly for water with
high content of calcium and magnesium (hard water).
Make sure the water network provides drinkable water,
with pressure ranging between 1 and 8 bars.
- Connect the water softener (C) to the water network
(D).
NB before connecting the water softener to the
machine, wash the machine until the water is clear.
• Connect a drain tube to the coupling (H - F. 7) and fix
it with a rack clamp.
• Connect (using tube and coupling made of food mate-
rials only) the machine to the drinking water network,
through the coupling (I - F. 7).
• Insert the draining and filling pipes into hole A.
MACHINE FRONT
WARNING /IMPORTANT
For a correct and ergonomic use of the machine, it
is recommended to install it onto a surface which is
at least 1 m high.
C – WATER SOFTENER
D – WATER NETWORK
E - DRAIN CHANNEL
10.2 Machine positioning
NOTE - Check if the surface where the machine is installed
has the adequate dimension and solidity to support
the machine safely.
• Make a Ø 100 mm (A - F. 5) hole on the supporting surfa-
ce.
• Place definitely the machine on the support (the circles B - F.
5, indicate the suitable position of the adjustable feet).
