Saeco IDEA Instruction And Maintenance

English
166

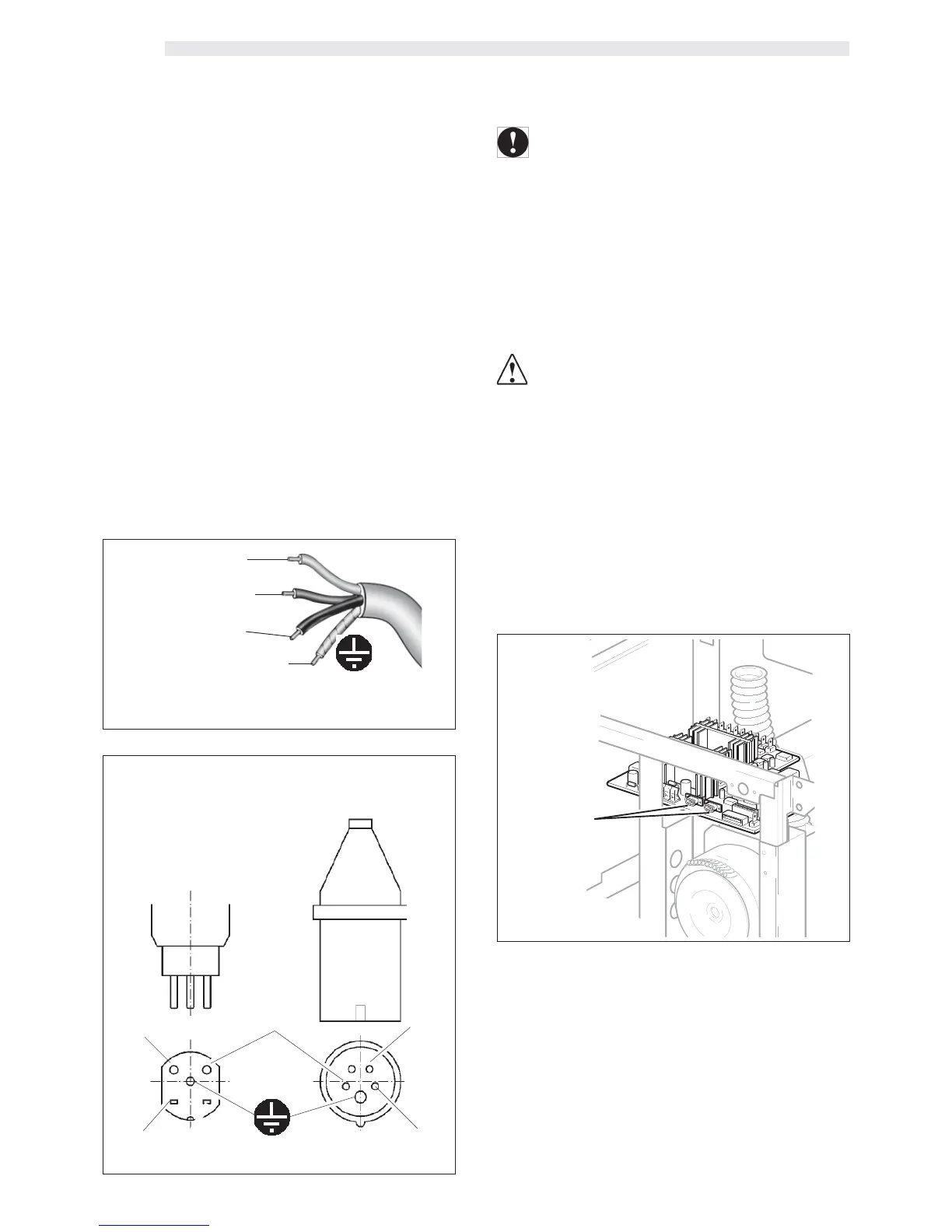

10.5 Serial port connection
Through the serial port the machine can be connected to the
AUTHORIZED CUSTOMER SERVICE CENTER’s equipment,
for checks or programming operations (A - F. 10).
The connection point (electric plug or all-pole switch)
must be located in an easily reachable place, in
order to disconnect the machine from the electric line
in case of need.
• Connect the cord (G - F. 7) to the electric network.
F. 10
A
10.4 Electric connection
NOTE - In case of plants with a 400 V two-phase current,
use the two phases to supply the machine with
230 V single phase current (F. 8). As for the 230
V single-phase connection, require the special
installation kit (code %1034.R09).
• Place the machine on the support and insert the electric
power cord (G - F. 7) in the hole (A).
F. 8
F. 9
CEI
L
1
L
2
N
L
2
L
1
Neutral (N)  Blue
Phase (L
1
)  Brown
Phase (L
2
)  Black
Ground  Yellow/green
CH
(Switzerland)
Power cord type H07RNF
section 4x2,5 mm
2
Connection of the two phase electric line plug 400 V2N~
Depending on the current regulations of the Country
where the machine operates, the cable connecting
the electric line has to be pre-set or equipped with
an all-pole switch (with a minimum contact opening
of 3 mm), (or with a plug in accordance with the
same regulations).
• The all-pole switch has to be adequate to the
machine power consumption and must be able to
intercept every voltage polarity.
• Check if the electric cables of the system are pro-
portioned to the machine power consumption.
Should the machine be moved to a different place, the
fitting unit must be replaced with a new one (water network
connecting pipe).
The water mains pipe should be certified according to the
standard IEC 61770.
