Essential Requirements for CE Compliance
Conditions 1-3 listed below must be satisfied for HPVFE drives to meet the requirements of EN61800-3.
1. Grounding as described in Figure 1.6. Refer to page 1-6 for additional grounding recommendations.
2. Output power, control (I/O) and signal wiring must be braided, shielded cable with a coverage of 75% or
better, metal conduit or equivalent attenuation.
3. Allowable cable length in Table 1.I is not exceeded.
Table 1.I Allowable Cable Length
Filter Type
EN61800-3
Second Environment
EN61800-3 First
Environment Restricted
Distribution
(2)
EN61800-3 First
Environment Unrestricted
Distribution
(3)
Integral, 240V
5 meters (16 feet)
5 meters (16 feet)
1 meter (3 feet)
Integral, 480V
10 meters (33 feet)
–
–
External - S Type
(1)
5 meters (16 feet)
5 meters (16 feet)
1 meter (3 feet)
External - L Type (1)
100 meters (328 feet)
100 meters (328 feet)
25 meters (82 feet)
(1) Refer to Appendix B for details on optional external filters.
(2) Equivalent to EN55011 Class A.
(3) Equivalent to EN55011 Class B.

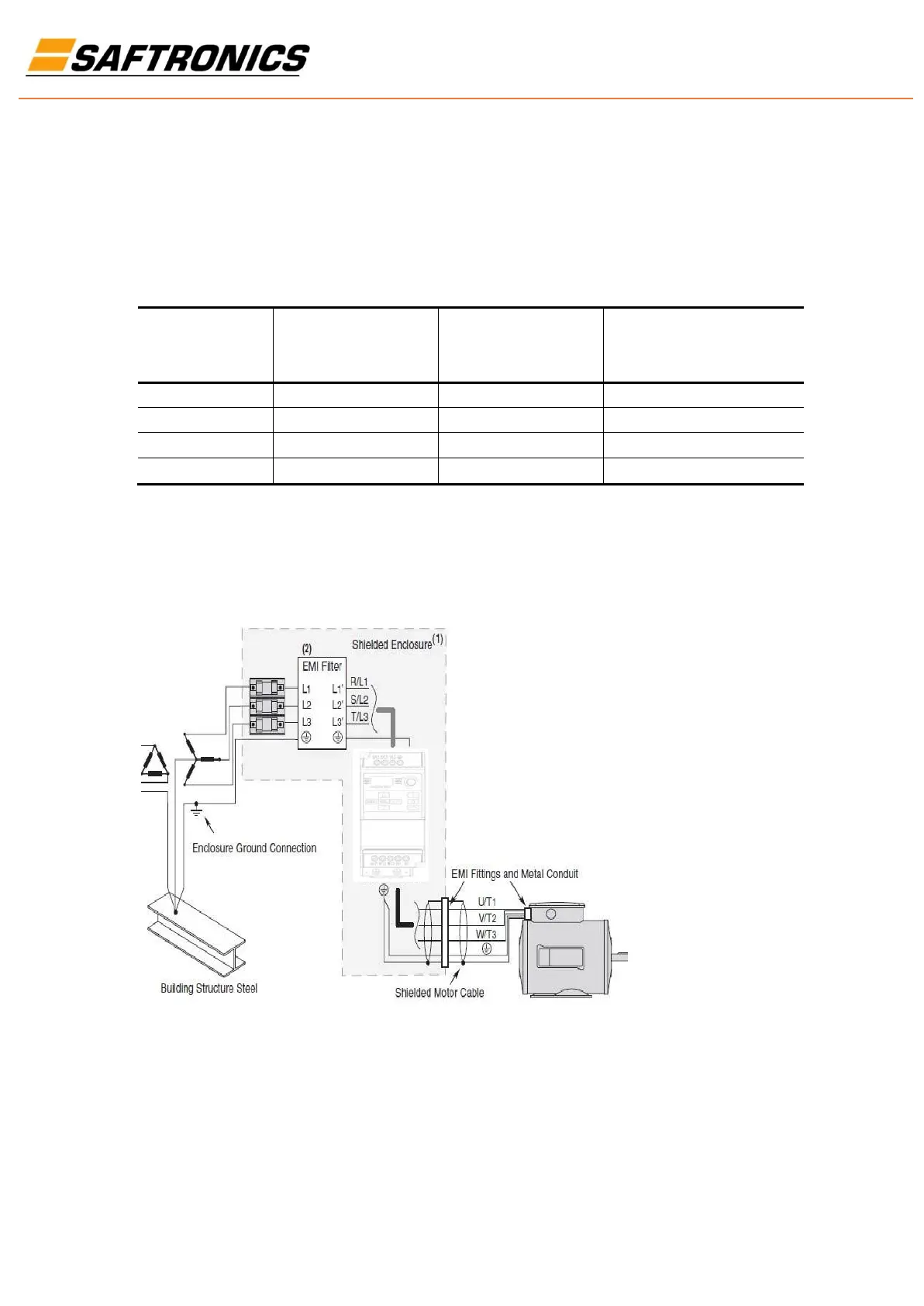

Figure 1.6 Connections and Grounding
(1) First Environment Unrestricted Distribution installations require a shielded enclosure. Keep wire length as short as possible between
the enclosure entry point and the EMI filter.
(2) Integral EMI filters are available on 240V, 1-Phase drives and 380V, 3-Phase drives.
