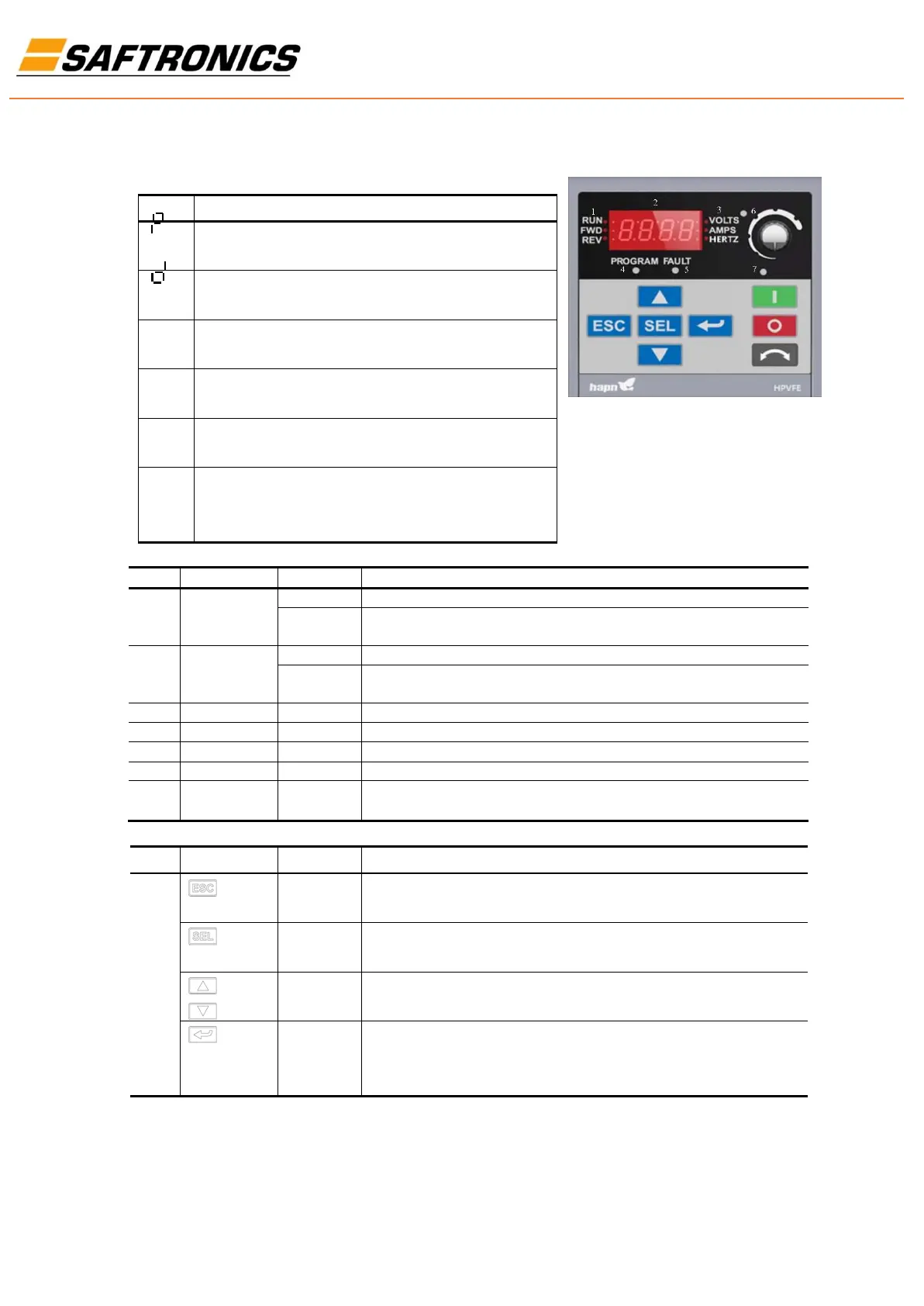

Integral Keypad
Menu
Description
Display Group(View Only)
Consists of commonly viewed drive operating conditions.
Basic Program Group
Consists of commonly used programmable function.
Terminal Block Group
Consists of programmable functions for control terminals.
Communications Group
Consists of programmable functions for communications.
Advanced Program Group
Consists of remaining programmable functions.
Fault Designator
Consists of list of codes for specific fault conditions.
Displayed only when fault is present.
No.
LED
LED State
Description
➊
Run/Direction
Status
Steady Red
Indicates drive is running and commanded motor direction.
Flashing Red
Drive has been commanded to change direction. Indicates actual motor direction while
decelerating to zero.
➋
Alphanumeric
Display
Steady Red
Indicates parameter number, parameter value, or fault code.
Flashing Red
Single digit flashing indicates that digit can be edited.
All digits flashing indicates a fault condition.
➌
Displayed Units
Steady Red
Indicates the units of the parameter value being displayed.
➍
Program Status
Steady Red
Indicates parameter value can be changed.
➎
Fault Status
Flashing Red
Indicates drive is faulted.
➏
Pot Status
Steady Green
Indicates potentiometer on Integral Keypad is active.
➐
Start Key Status
Steady Green
Indicates Start key on Integral Keypad is active.
The Reverse key is also active unless disabled by A434 [Reverse Disable].
No.
Key
Name
Description
➑
Escape
Back one step in programming menu.
Cancel a change to a parameter value and exit Program Mode.
Select
Advance one step in programming menu.
Select a digit when viewing parameter value.
Up Arrow
Down Arrow
Scroll through groups and parameters.
Increase/decrease the value of a flashing digit.
Enter
Advance one step in programming menu.
Save a change to a parameter value.
