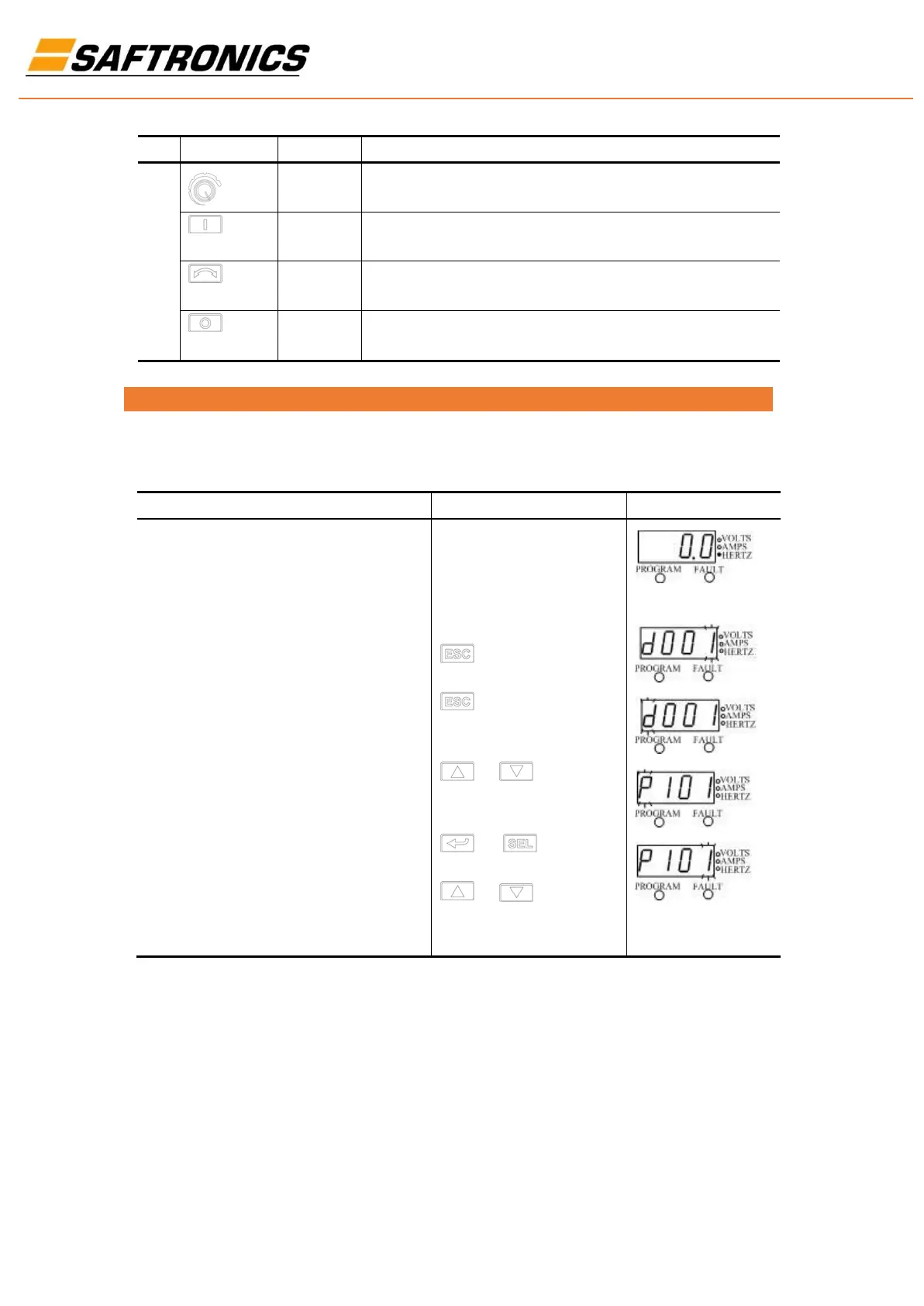

1.When power is applied, the last user-selected Display
Group parameter number is briefly displayed with flashing
characters. The display then defaults to that parameter’s
current value. (Example shows the value of d001 [Output
Freq] with the drive stopped.)
2.Press Esc once to display the Display Group parameter
number shown on power-up. The parameter number will
flash.
3.Press Esc again to enter the group menu. The group menu
letter will flash.
4.Press the Up Arrow or Down Arrow to scroll through the
group menu (d, P, t, C and A).
Press Enter or Sel to enter a group. The rightmost digit of the
last viewed parameter in that group will flash.
5.Press the Up Arrow or Down Arrow to scroll through the
parameters in the group.
或
或
或
No.
LED
LED State
Description
➒
Speed
Potentiometer
Used to control speed of drive. Default is active.
Controlled by parameter P108 [Speed Reference].
Start
Used to start the drive. Default is active.
Controlled by parameter P106 [Start Source].
Reverse
Used to reverse direction of the drive. Default is active.
Controlled by parameters P106 [Start Source] and A434 [Reverse Disable].
Stop
Used to stop the drive or clear a fault. This key is always active. Controlled by parameter
P107 [Stop Mode].
Viewing and Editing Parameters
The last user-selected Display Group parameter is saved when power is removed and is displayed by default when power is reapplied.
The following is an example of basic integral keypad and display functions. This example provides basic navigation instructions and illustrates
how to program the first Program Group parameter.
