Mounting
•Mount the drive upright on a flat, vertical and level surface.
–Install on 35 mm DIN Rail (for frames A and B).
Or
–Install with screws.
Table 1.A Screw Mounting Recommendations
Minimum Panel Thickness
Screw Size
Mounting Torque
1.9 mm (0.0747 in.)
M4 (#8-32)
1.56-1.96 N-m (14-17 lb.-in.)
•Protect the cooling fan by avoiding dust or metallic particles.
•Do not expose to a corrosive atmosphere.
•Protect from moisture and direct sunlight.

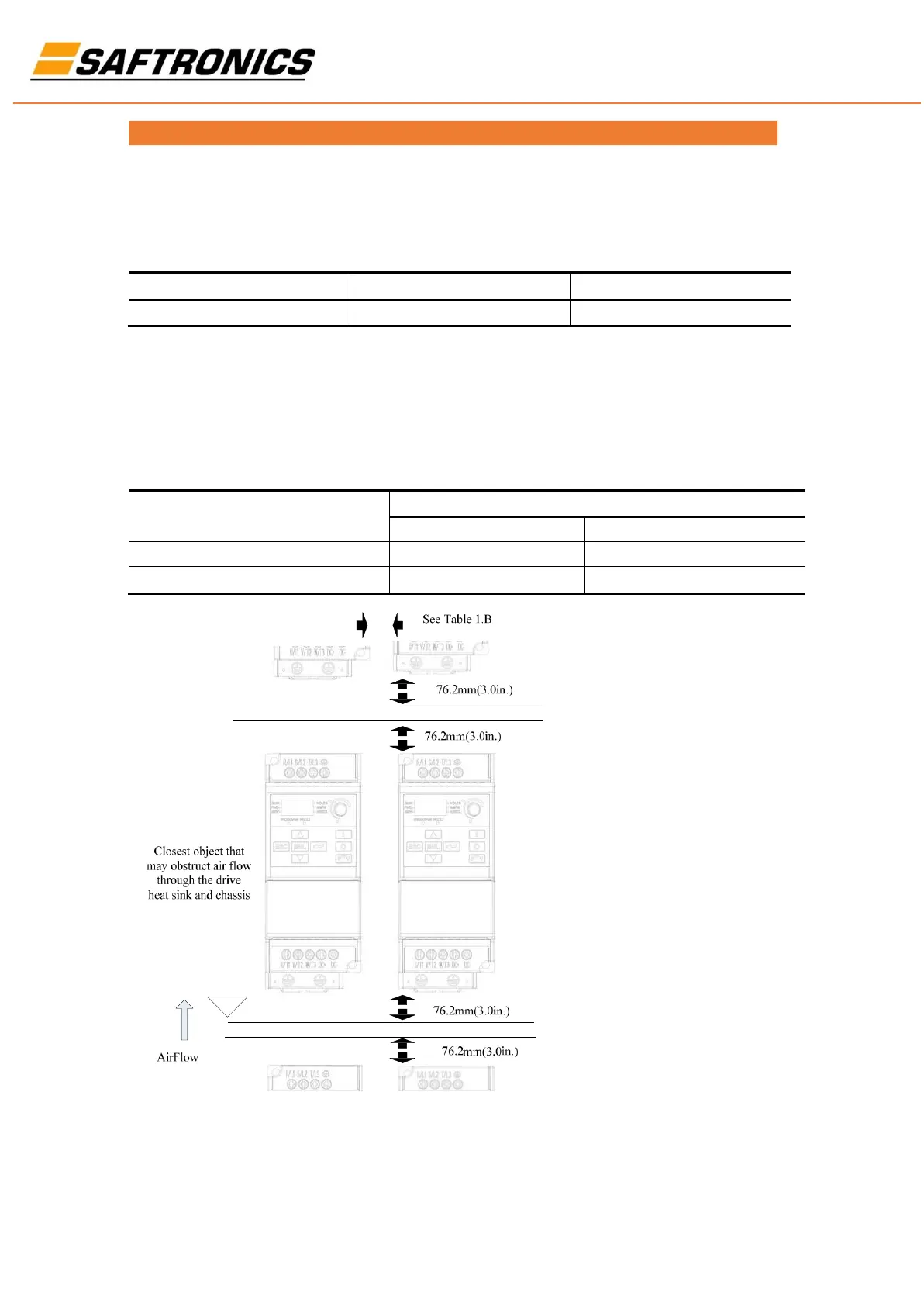

Minimum Mounting Clearances
Refer to Appendix B for mounting dimensions.
Ambient Operating Temperatures
Table 1.B Enclosure and Clearance Requirements
Horizontal Clearance between drives
Ambient Temperature
Minimum
Maximum
0 mm and greater
-10°C (14°F)
40°C (104°F)
25 mm and greater
-10°C (14°F)
50°C (122°F)
Drive enclosure is rated IP20, NEMA/UL Type Open.
