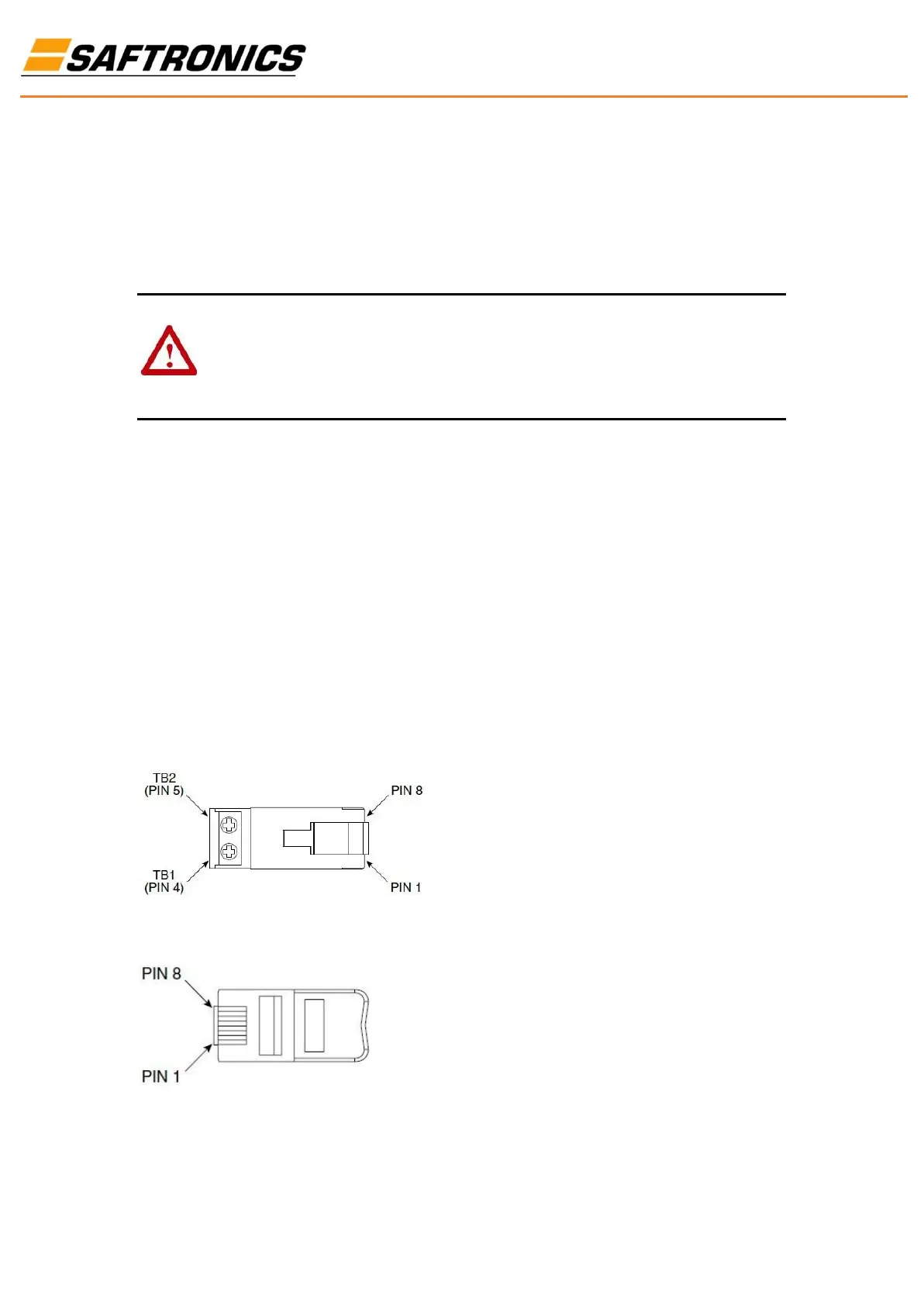

Appendix D RJ45 DSI Splitter Cable
The HPVFE drive provides a RJ45 port to allow the connection of a single peripheral device. The RJ45 DSI
Splitter Cable can be used to connect a second DSI peripheral device to the drive.
Connectivity Guidelines
ATTENTION: Risk of injury or equipment damage exists. The peripherals may not perform as
intended if these Connectivity Guidelines are not followed. Precautions should be taken to follow
these Connectivity Guidelines.
Two peripherals maximum can be attached to a drive.
If a single peripheral is used, it must be connected to the Master port (M) on the splitter and configured for
“Auto” (default) or “Master.” Parameter 9 [Device Type] on the DSI keypads and Parameter 1 [Adapter Cfg] on
the Serial Converter are used to select the type (Auto / Master / Slave).
If two peripherals will be powered up at the same time, one must be configured as the “Master” and connected to
the Master port (M) and the other must be connected as the “Slave” and connected to the Slave port (S).
DSI Cable Accessories
RJ45 Splitter Cable – Catalog Number: AK-U0-RJ45-SC1
RJ45 Two-Position Terminal Block Adapter –
Catalog Number: AK-U0-RJ45-TB2P
RJ45 Adapter with Integrated Termination Resistor –
Catalog Number: AK-U0-RJ45-TR1
