Terminal Block Group (continued)
46
Values
Default
0.0%
Min/Max:
0.0/ 100.0%
Display:
0.1%
15
“Anlg Invert
Inverts the scaling of the analog input levels set in t211
[Anlg In 0-10V Lo] and t212 [Anlg In 0-10V Hi] or t213
[Anlg In4-20mA Lo] and t214 [Anlg In4-20mA Hi].
16-27
Reserved

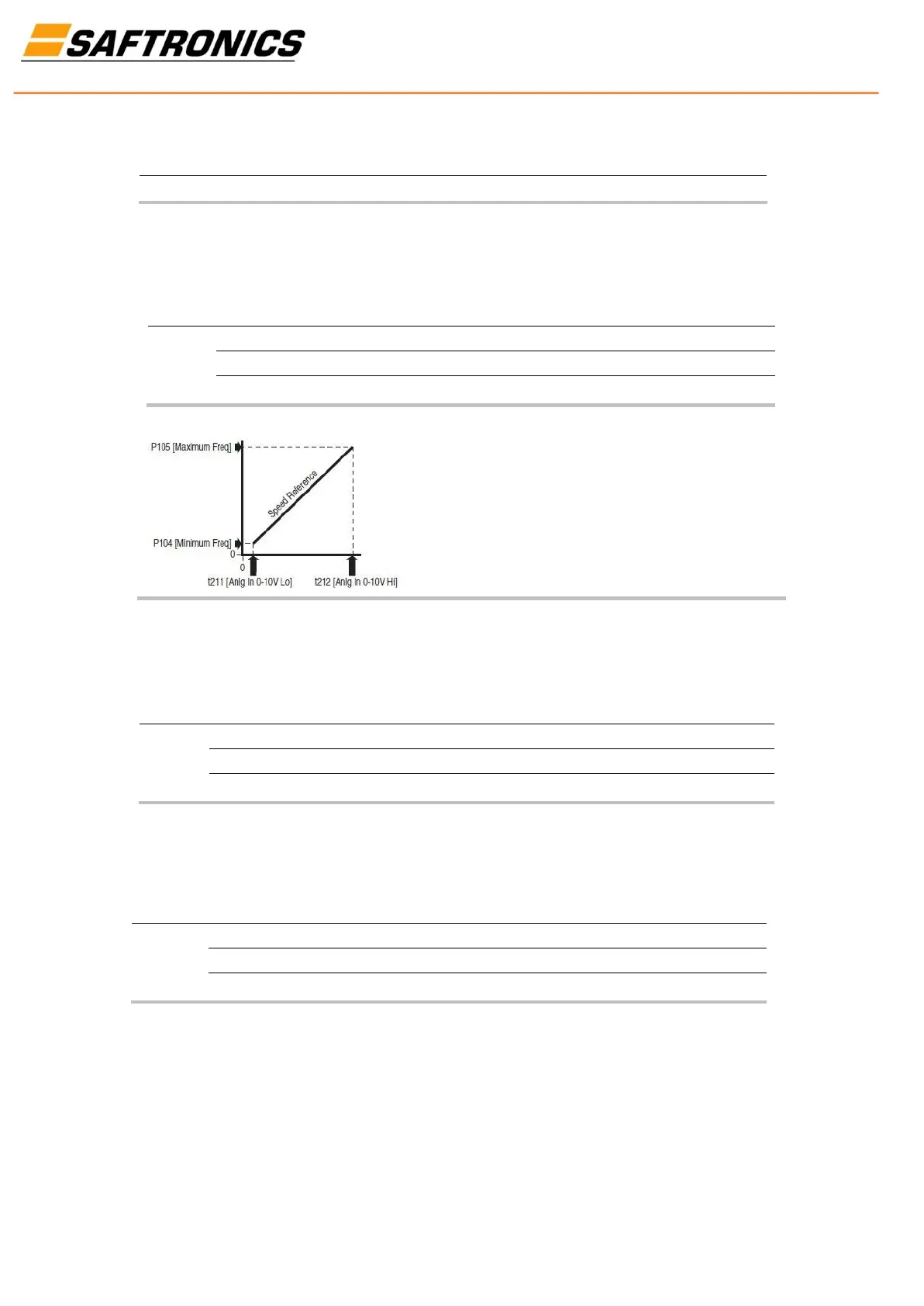

t211 [Anlg In 0-10V Lo]
Related Parameter(s): d020, P104, P108, t201, t202
Sets the analog input level that corresponds to P104 [Minimum Freq] if a 0-10V input is used by P108 [Speed Reference].
Analog inversion can be accomplished by setting this value larger than t212 [Anlg In 0-10V Hi] or by setting t201 - t202 [Digital Inx Sel] to
option 15 “Anlg Invert”.
Values
Default
0.0%
Min/Max:
0.0/ 100.0%
Display:
0.1%
t212 [Anlg In 0-10V Hi]
Related Parameter(s): d020, P105, P108, t201, t202
Sets the analog input level that corresponds to P105 [Maximum Freq] if a 0-10V input is used by P108 [Speed Reference].
Analog inversion can be accomplished by setting this value smaller than t211 [Anlg In 0-10V Lo] or by setting t201 - t202 [Digital Inx Sel] to
option 15 “Anlg Invert”.
Values
Default
100.0%
Min/Max:
0.0/ 100.0%
Display:
0.1%
t213 [Anlg In4-20mA Lo]
Related Parameter(s): d021, P104, P108, t201, t202
Sets the analog input level that corresponds to P104 [Minimum Freq] if a 4-20mA input is used by P108 [Speed Reference].
Analog inversion can be accomplished by setting this value larger than t214 [Anlg In4-20mA Hi] or by setting t201 - t202 [Digital Inx Sel] to
option 15 “Anlg Invert”.
t214 [Anlg In4-20mA Hi]
Related Parameter(s): d021, P105, P108, t201, t202
Sets the analog input level that corresponds to P105 [Maximum Freq] if a 4-20mA input is used by P108 [Speed Reference].
