104
Multi-
speed
selection
SS4
Multi-
speed
selection
SS3
Multi-
speed
selection
SS2
Multi-
speed
selection
SS1
Speed
segment
OFF OFF OFF OFF 0
OFF OFF OFF ON 1
OFF OFF ON OFF 2
OFF OFF ON ON 3
OFF ON OFF OFF 4
OFF ON OFF ON 5
OFF ON ON OFF 6
OFF ON ON ON 7
ON OFF OFF OFF 8
ON OFF OFF ON 9
ON OFF ON OFF 10
ON OFF ON ON 11
ON ON OFF OFF 12
ON ON OFF ON 13
ON ON ON OFF 14
ON ON ON ON 15

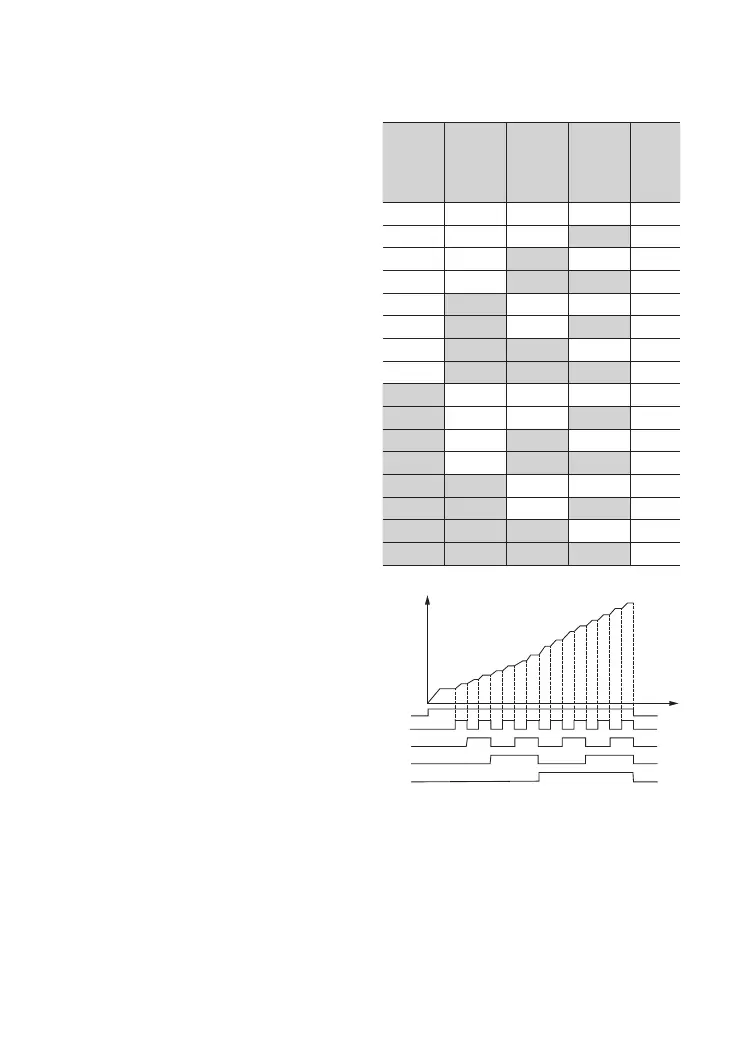

Figure F7-1 Multi-speed Running
19: Acc/Dec time selection TT1
20: Acc/Dec time selection TT2
By selecting the ON/OFF combination of
these function terminals, there would be 4
kinds of acc/dec time at most, as showed
in the following table:
0VUQVU
'SFR
3VO
$PNNBOE
4QFFE
4QFFE
5JNF
,
,
,
,
4.2 Detailed Function Description
10: emergency stop function (brake with
fastest speed)
This function is used in emergency stop
condition. The terminal is short-circuited
with COM, and the braking will proceed
with emergency standby decreasing time
(F1.36).
11: reversed
12: frequency increase
Terminal is short-circuited with COM,
frequency increases. Valid only when
frequency setting channel is digital setting
2 (terminal UP/DOWN adjustment).
13: frequency decrease
Terminal is short-circuited with COM,
frequency decreases. Valid only when
frequency setting channel is digital setting
2 (terminal UP/DOWN adjustment).
14: UP/DOWN terminal frequency zero clearing
Conduct zero clearing to digital frequency
2 (UP/DOWN terminal adjustment)
increment through terminal.
15: multi-speed selection I
16: multi-speed selection 2
17: multi-speed selection 3
18: multi-speed selection 4
By selecting ON/OFF combination of these
function terminals, 16 segments of speed
at most can be achieved, as showed in the
following table:
