Salda Smarty 2X V Series Mounting And Installation Instruction

EN | 45SMARTY v2023.2
DRAWNBY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
CHECKED BY
1123445677
Heater
SP35
Principle connectionscheme
13
01
2015-11-24
2015-11-24 2015-11-24
1
2
3
4
5
6
X29
7
8
794941-1
J2
EK1
AT1
1
2
RT1
1
2
Blue
1
White
0.5
White
0.5
White
0.5
White
0.5
Brown
1
Green-yellow
1
Figure 8.15.7. Preheater (SP35)
DRAWN BY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
CHECKED BY
1123445677
EI D. Aleksandravičius
EI A. Šklenikas

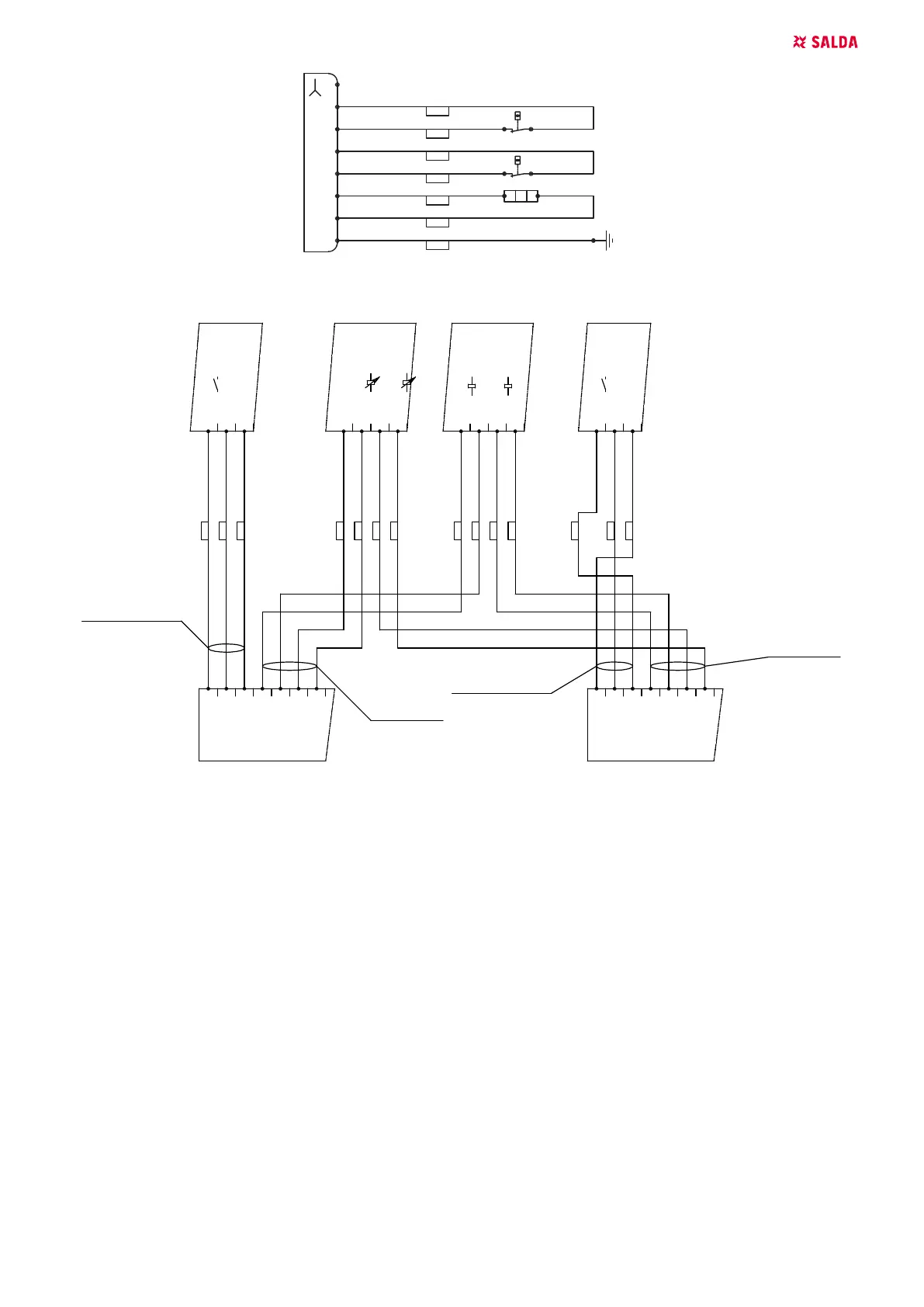

Fans (MiniMCB)
SP42
Principle connection scheme
12
01
2016-03-22
2016-03-22
2016-03-22
BK - Black - Juodas
BN - Brown - Rudas
GY - Grey - Pilkas
WH - White - Baltas
BU - Blue - Mėlynas
RD - Red - Raudonas
GN/YE - Green/Yellow - Žalias/Geltonas
PE
N
L1
+10V
Tach
GND
0-10V in
PV
H4)
PE
N
L1
+10V
Tach
GND
0-10V in
IV
H4)
Cable for power supply
Cable for control
Cable for power supply
Cable for control
X15:1 - PE X15:2 - N(L1) X15:3 - DO6(L(L2))
N1
miniMCB V0.3
X16:1 - DO6(L(L2)) X16:2 - N(L1) X16:3 - PE
N1
miniMCB V0.3
X2:1 - GND X2:2 - AO1(0-10V) X2:3 - GND X2:4 - AO2(0-10V)
N1
miniMCB V0.3
X4:1 - DI2(Tacho1_A) X4:2 -Tacho1_K X4:3 - DI3(Tacho2_A) X4:4 -Tacho2_K
N1
miniMCB V0.3
White
0.35
Red
0.35
White
0.35
Red
0.35
Yellow
0.35
Blue
0.35
Yellow
0.35
Blue
0.35
Brown | Black
0.5
Green-yellow
0.5
Blue
0.5
Brown | Black
0.5
Blue
0.5
Green-yellow
0.5
Smarty 4X P F2 unit fans connect to
controller with di󰀨erent color exten-
sion wires
Smarty 4X V F2 unit fans connect
to controller with extension wires
through X32/X33 connectors
Figure 8.15.8. Fans (version 1.1 / 1.2) (MiniMCB)
